基于antd+vue2来实现一个简单的绘画流程图功能

简单流程图的实现（基于antd+vue2的）代码很多哦~
实现页面如下

1.简单操作如下

2.弹框中使用组件：

 	<vfd
      ref="vfd"
      style="background-color: white;"
      :needShow="true"
      :fieldNames="fieldNames"
      @openUser="openUser"
      @openRole="openRole"
    ></vfd>
1
2
3
4
5
6
7
8

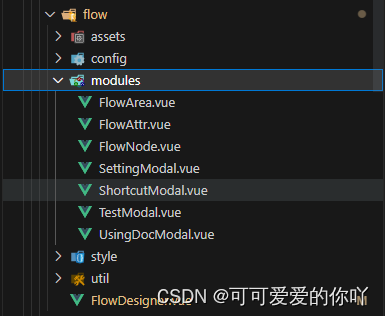

3.组件的文件结构：

FlowDesigner.vue代码如下

<template>
  <div style="height: 60vh">
    <a-layout class="container">
      <a-layout-sider
        v-show="needShow"
        width="200"
        theme="light"
        class="select-area"
      >
        <a-row style="padding:5px">
          <a-checkable-tag
            v-model="tag.checked0"
            @change="toggleNodeShow0"
            class="tag"
          >工具</a-checkable-tag>
          <div align="center">
            <a-list
              :grid="{ gutter: 8, column: 1 }"
              v-if="tag.toolShow"
            >
              <a-list-item>
                <a-button-group>
                  <a-button
                    v-for="(tool, index) in field.tools"
                    :key="index"
                    :icon="tool.icon"
                    :type="currentTool.type == tool.type ? 'primary': 'default'"
                    @click="selectTool(tool.type)"
                  >
                  </a-button>
                </a-button-group>
              </a-list-item>
            </a-list>
          </div>
        </a-row>
        <a-row style="padding:5px">
          <a-checkable-tag
            v-model="tag.checked1"
            @change="toggleNodeShow1"
            class="tag"
          >基础节点</a-checkable-tag>
          <div align="center">
            <a-list
              :grid="{ gutter: 8, column: 2 }"
              v-if="tag.commonNodeShow"
            >
              <a-list-item
                v-for="(commonNode, index) in field.commonNodes"
                :key="index"
              >
                <div
                  class="node-item"
                  :type="commonNode.type"
                  belongto="commonNodes"
                >
                  <a-icon :type="commonNode.icon" /> {{ commonNode.name }}
                </div>
              </a-list-item>
            </a-list>
          </div>
        </a-row>
        <a-row style="padding:5px">
          <a-checkable-tag
            v-model="tag.checked3"
            @change="toggleNodeShow3"
            class="tag"
          >泳道节点</a-checkable-tag>
          <div align="center">
            <a-list
              :grid="{ gutter: 8, column: 2 }"
              v-if="tag.laneNodeShow"
            >
              <a-list-item
                v-for="(laneNode, index) in field.laneNodes"
                :key="index"
              >
                <div
                  class="node-item"
                  :type="laneNode.type"
                  belongto="laneNodes"
                >
                  <a-icon :type="laneNode.icon" /> {{ laneNode.name }}
                </div>
              </a-list-item>
            </a-list>
          </div>
        </a-row>
      </a-layout-sider>
      <a-layout>
        <a-layout-header
          v-show="needShow"
          class="header-option"
          style="background-color:#fff;padding-right: 10px;"
        >
          <a-popconfirm
            title="确认要重新绘制吗？"
            placement="bottom"
            okText="确认"
            cancelText="取消"
            @confirm="clear"
          >
            <a-tooltip
              title="重新绘制"
              placement="bottom"
            >
              <a-button
                class="header-option-button"
                size="small"
                icon="sync"
              ></a-button>
            </a-tooltip>
          </a-popconfirm>
          <a-tooltip
            :title="flowData.config.showGridText"
            placement="bottom"
          >
            <a-button
              @click="toggleShowGrid"
              class="header-option-button"
              size="small"
              :icon="flowData.config.showGridIcon"
            >
            </a-button>
          </a-tooltip>
          <a-tooltip
            title="设置"
            placement="bottom"
          >
            <a-button
              @click="setting"
              class="header-option-button"
              size="small"
              icon="setting"
            ></a-button>
          </a-tooltip>
          <a-tooltip
            title="JSON"
            placement="bottom"
          >
            <a-button
              @click="openTest"
              class="header-option-button"
              size="small"
              icon="save"
            ></a-button>
          </a-tooltip>
          <a-popconfirm
            title="请选择帮助项："
            placement="bottom"
            okType="default"
            okText="快捷键大全"
            cancelText="使用文档"
            @confirm="shortcutHelper"
            @cancel="usingDoc"
          >
            <a-icon
              slot="icon"
              type="question-circle-o"
              style="color: red"
            />
            <a-tooltip
              title="帮助"
              placement="bottom"
            >
              <a-button
                class="header-option-button"
                size="small"
                icon="book"
              ></a-button>
            </a-tooltip>
          </a-popconfirm>
        </a-layout-header>
        <a-layout-content class="flowContent">
          <flow-area
            ref="flowArea"
            :browserType="browserType"
            :flowData="flowData"
            :select.sync="currentSelect"
            :selectGroup.sync="currentSelectGroup"
            :plumb="plumb"
            :currentTool="currentTool"
            :activityId="activityId"
            @findNodeConfig="findNodeConfig"
            @selectTool="selectTool"
            @getShortcut="getShortcut"
            @saveFlow="saveFlow"
          >
          </flow-area>
          <vue-context-menu
            class="customMenuClass"
            :contextMenuData="linkContextMenuData"
            @deleteLink="deleteLink"
          >
          </vue-context-menu>
        </a-layout-content>
      </a-layout>
      <a-layout-sider
        width="300"
        theme="light"
        class="attr-area"
        @mousedown.stop="loseShortcut"
      >
        <flow-attr
          ref="flowAttrForm"
          :plumb="plumb"
          :flowData="flowData"
          :needShow="needShow"
          :fieldNames.sync="fieldNames"
          :select.sync="currentSelect"
          @openUser="openUser"
          @openRole="openRole"
        ></flow-attr>
      </a-layout-sider>
    </a-layout>
    <setting-modal ref="settingModal"></setting-modal>
    <shortcut-modal ref="shortcutModal"></shortcut-modal>
    <test-modal
      ref="testModal"
      @loadFlow="loadFlow"
      @clear123="clear()"
    ></test-modal>
  </div>
</template>

<script>
import jsplumb from 'jsplumb'
import { tools, commonNodes, laneNodes } from './config/basic-node-config.js'
import { flowConfig } from './config/args-config.js'
import $ from 'jquery'
import 'jquery-ui/ui/widgets/draggable'
import 'jquery-ui/ui/widgets/droppable'
import 'jquery-ui/ui/widgets/resizable'
import { ZFSN } from './util/ZFSN.js'
import FlowArea from './modules/FlowArea'
import FlowAttr from './modules/FlowAttr'
import SettingModal from './modules/SettingModal'
import ShortcutModal from './modules/ShortcutModal'
import UsingDocModal from './modules/UsingDocModal'
import TestModal from './modules/TestModal'

export default {
  name: 'vfd',
  components: {
    jsplumb,
    flowConfig,
    FlowArea,
    FlowAttr,
    SettingModal,
    ShortcutModal,
    UsingDocModal,
    TestModal,
  },
  //条件选择字段
  props: ['fieldNames', 'needShow', 'activityId'],
  mounted() {
    const that = this
    that.dealCompatibility()
    that.initNodeSelectArea()
    that.initJsPlumb()
    that.listenShortcut()
    that.initFlow()
    that.listenPage()
  },
  data() {
    return {
      tag: {
        checked0: true,
        checked1: true,
        checked2: true,
        checked3: true,
        toolShow: true,
        commonNodeShow: true,
        highNodeShow: true,
        laneNodeShow: true,
      },
      browserType: 3,
      plumb: {},
      field: {
        tools: tools,
        commonNodes: commonNodes,
        laneNodes: laneNodes,
      },
      flowData: {
        nodeList: [],
        linkList: [],
        attr: {
          id: '',
        },
        config: {
          showGrid: true,
          showGridText: '隐藏网格',
          showGridIcon: 'eye',
        },
        status: flowConfig.flowStatus.CREATE,
        remarks: [],
      },
      currentTool: {
        type: 'drag',
        icon: 'drag',
        name: '拖拽',
      },
      currentSelect: {},
      currentSelectGroup: [],
      activeShortcut: true,
      linkContextMenuData: flowConfig.contextMenu.link,
      flowPicture: {
        url: '',
        modalVisible: false,
        closable: false,
        maskClosable: false,
      },
      flowLineAdditions: flowConfig.flowLineAdditions,
    }
  },
  methods: {
    //用户选择界面
    openUser(value) {
      this.$emit('openUser', value)
    },
    //角色选择界面
    openRole(value) {
      this.$emit('openRole', value)
    },
    //角色用户设置必须包含id、name属性的数组
    setFlowAttrForm(value, type) {
      this.$refs.flowAttrForm.setFlowAttrForm(value, type)
    },
    toggleNodeShow0(flag) {
      if (!flag) {
        this.tag.toolShow = false
      } else {
        this.tag.toolShow = true
      }
    },
    toggleNodeShow1(flag) {
      if (!flag) {
        this.tag.commonNodeShow = false
      } else {
        this.tag.commonNodeShow = true
      }
    },
    toggleNodeShow2(flag) {
      if (!flag) {
        this.tag.highNodeShow = false
      } else {
        this.tag.highNodeShow = true
      }
    },
    toggleNodeShow3(flag) {
      if (!flag) {
        this.tag.laneNodeShow = false
      } else {
        this.tag.laneNodeShow = true
      }
    },
    getBrowserType() {
      let userAgent = navigator.userAgent
      let isOpera = userAgent.indexOf('Opera') > -1
      if (isOpera) {
        return 1
      }
      if (userAgent.indexOf('Firefox') > -1) {
        return 2
      }
      if (userAgent.indexOf('Chrome') > -1) {
        return 3
      }
      if (userAgent.indexOf('Safari') > -1) {
        return 4
      }
      if (userAgent.indexOf('compatible') > -1 && userAgent.indexOf('MSIE') > -1 && !isOpera) {
        alert('IE浏览器支持性较差，推荐使用Firefox或Chrome')
        return 5
      }
      if (userAgent.indexOf('Trident') > -1) {
        alert('Edge浏览器支持性较差，推荐使用Firefox或Chrome')
        return 6
      }
    },
    dealCompatibility() {
      const that = this

      that.browserType = that.getBrowserType()
      if (that.browserType == 2) {
        flowConfig.shortcut.scaleContainer = {
          code: 16,
          codeName: 'SHIFT(chrome下为ALT)',
          shortcutName: '画布缩放',
        }
      }
    },
    initJsPlumb() {
      const that = this

      that.plumb = jsPlumb.getInstance(flowConfig.jsPlumbInsConfig)

      that.plumb.bind('beforeDrop', function (info) {
        let sourceId = info.sourceId
        let targetId = info.targetId

        if (sourceId == targetId) return false
        let filter = that.flowData.linkList.filter((link) => link.sourceId == sourceId && link.targetId == targetId)
        if (filter.length > 0) {
          that.$message.error('同方向的两节点连线只能有一条！')
          return false
        }
        return true
      })

      that.plumb.bind('connection', function (conn, e) {
        let connObj = conn.connection.canvas
        let o = {},
          id,
          label
        if (
          that.flowData.status == flowConfig.flowStatus.CREATE ||
          that.flowData.status == flowConfig.flowStatus.MODIFY
        ) {
          id = 'link-' + ZFSN.getId()
          label = ''
        } else if (that.flowData.status == flowConfig.flowStatus.LOADING) {
          let l = that.flowData.linkList[that.flowData.linkList.length - 1]
          id = l.id
          label = l.label
        }
        connObj.id = id
        o.type = 'link'
        o.id = id
        o.sourceId = conn.sourceId
        o.targetId = conn.targetId
        o.label = label
        o.cls = {
          linkType: flowConfig.jsPlumbInsConfig.Connector[0],
          linkColor: flowConfig.jsPlumbInsConfig.PaintStyle.stroke,
          linkThickness: flowConfig.jsPlumbInsConfig.PaintStyle.strokeWidth,
        }
        $('#' + id).bind('contextmenu', function (e) {
          that.showLinkContextMenu(e)
          that.currentSelect = that.flowData.linkList.filter((l) => l.id == id)[0]
        })
        $('#' + id).bind('click', function (e) {
          let event = window.event || e
          event.stopPropagation()
          that.currentSelect = that.flowData.linkList.filter((l) => l.id == id)[0]
        })
        if (that.flowData.status != flowConfig.flowStatus.LOADING) that.flowData.linkList.push(o)
      })

      that.plumb.importDefaults({
        ConnectionsDetachable: flowConfig.jsPlumbConfig.conn.isDetachable,
      })

      ZFSN.consoleLog(['实例化JsPlumb成功...'])
    },
    initNodeSelectArea() {
      $(document).ready(function () {
        $('.node-item').draggable({
          opacity: flowConfig.defaultStyle.dragOpacity,
          helper: 'clone',
          cursorAt: {
            top: 16,
            left: 60,
          },
          containment: 'window',
          revert: 'invalid',
        })
        ZFSN.consoleLog(['初始化节点选择列表成功...'])
      })
    },
    listenShortcut() {
      const that = this
      document.onkeydown = function (e) {
        let event = window.event || e

        if (!that.activeShortcut) return
        let key = event.keyCode

        switch (key) {
          case flowConfig.shortcut.multiple.code:
            that.$refs.flowArea.rectangleMultiple.flag = true
            break
          case flowConfig.shortcut.dragContainer.code:
            that.$refs.flowArea.container.dragFlag = true
            break
          case flowConfig.shortcut.scaleContainer.code:
            that.$refs.flowArea.container.scaleFlag = true
            break
          case flowConfig.shortcut.dragTool.code:
            that.selectTool('drag')
            break
          case flowConfig.shortcut.connTool.code:
            that.selectTool('connection')
            break
          case flowConfig.shortcut.zoomInTool.code:
            that.selectTool('zoom-in')
            break
          case flowConfig.shortcut.zoomOutTool.code:
            that.selectTool('zoom-out')
            break
          case 37:
            that.moveNode('left')
            break
          case 38:
            that.moveNode('up')
            break
          case 39:
            that.moveNode('right')
            break
          case 40:
            that.moveNode('down')
            break
        }
      }
      document.onkeyup = function (e) {
        let event = window.event || e

        let key = event.keyCode
        if (key == flowConfig.shortcut.dragContainer.code) {
          that.$refs.flowArea.container.dragFlag = false
        } else if (key == flowConfig.shortcut.scaleContainer.code) {
          event.preventDefault()
          that.$refs.flowArea.container.scaleFlag = false
        } else if (key == flowConfig.shortcut.multiple.code) {
          that.$refs.flowArea.rectangleMultiple.flag = false
        }
      }

      ZFSN.consoleLog(['初始化快捷键成功...'])
    },
    listenPage() {
      window.onbeforeunload = function (e) {
        e = e || window.event
        if (e) {
          e.returnValue = '关闭提示'
        }
        return '关闭提示'
      }
    },
    initFlow() {
      const that = this
      if (that.flowData.status == flowConfig.flowStatus.CREATE) {
        that.flowData.attr.id = 'flow-' + ZFSN.getId()
      } else {
        that.loadFlow()
      }
      ZFSN.consoleLog(['初始化流程图成功...'])
    },
    loadFlow(json) {
      const that = this
      setTimeout(() => {
        that.flowLineAdditions.forEach((item) => {
          that.fieldNames.push(item)
        })
        const map = new Map()
        const list = that.fieldNames.filter((key) => !map.has(key.id) && map.set(key.id, 1))
        that.$emit('update:fieldNames', list)
      }, 100)
      that.clear()
      let loadData = JSON.parse(json)
      that.flowData.attr = loadData.attr
      that.flowData.config = loadData.config
      that.flowData.status = flowConfig.flowStatus.LOADING
      that.plumb.batch(function () {
        let nodeList = loadData.nodeList
        let areaList = loadData.areaList
        nodeList.forEach(function (node, index) {
          that.flowData.nodeList.push(node)
        })
        if (!!areaList && areaList.length > 0) {
          areaList.forEach(function (node, index) {
            that.flowData.nodeList.push(node)
          })
        }
        let linkList = loadData.linkList
        that.$nextTick(() => {
          linkList.forEach(function (link, index) {
            that.flowData.linkList.push(link)
            let conn = that.plumb.connect({
              source: link.sourceId,
              target: link.targetId,
              anchor: flowConfig.jsPlumbConfig.anchor.default,
              connector: [
                link.cls.linkType,
                {
                  gap: 5,
                  cornerRadius: 8,
                  alwaysRespectStubs: true,
                },
              ],
              paintStyle: {
                stroke: link.cls.linkColor,
                strokeWidth: link.cls.linkThickness,
              },
            })
            if (link.label != '') {
              conn.setLabel({
                label: link.label,
                cssClass: 'linkLabel',
              })
            }
          })
          that.currentSelect = {}
          that.currentSelectGroup = []
          that.flowData.status = flowConfig.flowStatus.MODIFY
        })
      }, true)
    },
    findNodeConfig(belongto, type, callback) {
      let node = null
      switch (belongto) {
        case 'commonNodes':
          node = commonNodes.filter((n) => n.type == type)
          break
        case 'laneNodes':
          node = laneNodes.filter((n) => n.type == type)
          break
      }
      if (node && node.length >= 0) node = node[0]
      callback(node)
    },
    selectTool(type) {
      let tool = tools.filter((t) => t.type == type)
      if (tool && tool.length >= 0) this.currentTool = tool[0]

      switch (type) {
        case 'drag':
          this.changeToDrag()
          break
        case 'connection':
          this.changeToConnection()
          break
        case 'zoom-in':
          this.changeToZoomIn()
          break
        case 'zoom-out':
          this.changeToZoomOut()
          break
      }
    },
    changeToDrag() {
      const that = this

      that.flowData.nodeList.forEach(function (node, index) {
        let f = that.plumb.toggleDraggable(node.id)
        if (!f) {
          that.plumb.toggleDraggable(node.id)
        }
        if (node.type != 'x-lane' && node.type != 'y-lane') {
          that.plumb.unmakeSource(node.id)
          that.plumb.unmakeTarget(node.id)
        }
      })
    },
    changeToConnection() {
      const that = this

      that.flowData.nodeList.forEach(function (node, index) {
        let f = that.plumb.toggleDraggable(node.id)
        if (f) {
          that.plumb.toggleDraggable(node.id)
        }
        if (node.type != 'x-lane' && node.type != 'y-lane') {
          that.plumb.makeSource(node.id, flowConfig.jsPlumbConfig.makeSourceConfig)
          that.plumb.makeTarget(node.id, flowConfig.jsPlumbConfig.makeTargetConfig)
        }
      })

      that.currentSelect = {}
      that.currentSelectGroup = []
    },
    changeToZoomIn() {
      console.log('切换到放大工具')
    },
    changeToZoomOut() {
      console.log('切换到缩小工具')
    },
    checkFlow() {
      const that = this
      let nodeList = that.flowData.nodeList
      let linkList = that.flowData.linkList
      let areaList = []
      for (let index = nodeList.length - 1; index >= 0; index--) {
        const item = nodeList[index]
        if (item.type == 'x-lane' || item.type == 'y-lane') {
          nodeList.splice(index, 1)
          areaList.push(item)
        }
        if (!!item.setInfo) {
          if (
            (item.setInfo.nodeDesignate == 'SPECIAL_USER' || item.setInfo.nodeDesignate == 'SPECIAL_ROLE') &&
            item.setInfo.nodeDesignateData.length == 0
          ) {
            this.$message.error('节点:' + item.setInfo.nodeName + ',执行权限需要配置！')
            return false
          }
        }
      }
      that.flowData.areaList = areaList
      linkList.forEach((item) => {
        if (!!item.compares) {
          for (let index = item.compares.length - 1; index >= 0; index--) {
            const compare = item.compares[index]
            //这些字段没有就去掉条件
            if (!compare.operation || !compare.fieldName || !compare.value) {
              item.compares.splice(index, 1)
            }
          }
        }
      })
      if (nodeList.length <= 0) {
        this.$message.error('流程图中无任何节点！')
        return false
      }
      return true
    },
    saveFlow() {
      const that = this
      if (!that.checkFlow()) return
      let flowObj = Object.assign({}, that.flowData)
      flowObj.status = flowConfig.flowStatus.SAVE
      let d = JSON.stringify(flowObj)
      //this.$message.success('保存流程成功！请查看控制台。');
      return d
    },
    cancelDownLoadFlowPicture() {
      this.flowPicture.url = ''
      this.flowPicture.modalVisible = false
    },
    clear() {
      const that = this
      that.flowData.nodeList.forEach(function (node, index) {
        that.plumb.remove(node.id)
      })
      that.currentSelect = {}
      that.currentSelectGroup = []
      that.flowData.nodeList = []
      that.flowData.linkList = []
      that.flowData.remarks = []
    },
    toggleShowGrid() {
      let flag = this.flowData.config.showGrid
      if (flag) {
        this.flowData.config.showGrid = false
        this.flowData.config.showGridText = '显示网格'
        this.flowData.config.showGridIcon = 'eye-invisible'
      } else {
        this.flowData.config.showGrid = true
        this.flowData.config.showGridText = '隐藏网格'
        this.flowData.config.showGridIcon = 'eye'
      }
    },
    setting() {
      this.$refs.settingModal.open()
    },
    shortcutHelper() {
      this.$refs.shortcutModal.open()
    },
    usingDoc() {
      window.open('https://gitee.com/yjblogs/VFD?_from=gitee_search')
    },
    exit() {
      alert('退出流程设计器...')
    },
    showLinkContextMenu(e) {
      let event = window.event || e

      event.preventDefault()
      event.stopPropagation()
      $('.vue-contextmenuName-flow-menu').css('display', 'none')
      $('.vue-contextmenuName-node-menu').css('display', 'none')
      let x = event.clientX
      let y = event.clientY
      this.linkContextMenuData.axis = { x, y }
    },
    deleteLink() {
      const that = this
      let sourceId = that.currentSelect.sourceId
      let targetId = that.currentSelect.targetId
      that.plumb.deleteConnection(
        that.plumb.getConnections({
          source: sourceId,
          target: targetId,
        })[0]
      )
      let linkList = that.flowData.linkList
      linkList.splice(
        linkList.findIndex((link) => link.sourceId == sourceId || link.targetId == targetId),
        1
      )
      that.currentSelect = {}
    },
    loseShortcut() {
      this.activeShortcut = false
    },
    getShortcut() {
      this.activeShortcut = true
    },
    openTest() {
      const that = this

      let flowObj = Object.assign({}, that.flowData)
      that.$refs.testModal.flowData = flowObj
      that.$refs.testModal.testVisible = true
    },
    moveNode(type) {
      const that = this

      let m = flowConfig.defaultStyle.movePx,
        isX = true
      switch (type) {
        case 'left':
          m = -m
          break
        case 'up':
          m = -m
          isX = false
          break
        case 'right':
          break
        case 'down':
          isX = false
      }

      if (that.currentSelectGroup.length > 0) {
        that.currentSelectGroup.forEach(function (node, index) {
          if (isX) {
            node.x += m
          } else {
            node.y += m
          }
        })
        that.plumb.repaintEverything()
      } else if (that.currentSelect.id) {
        if (isX) {
          that.currentSelect.x += m
        } else {
          that.currentSelect.y += m
        }
        that.plumb.repaintEverything()
      }
    },
  },
}
</script>

<style lang="less" scoped>
@import './style/flow-designer.less';
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849

4.modules文件中的所有文件代码

FlowArea.vue代码如下

<template>
  <div style="width: 100%; height: 100%; overflow: hidden; position: relative;">
    <div
      v-if="container.auxiliaryLine.isOpen && container.auxiliaryLine.isShowXLine"
      class="auxiliary-line-x"
      :style="{ top: auxiliaryLinePos.y + 'px' }"
    ></div>
    <div
      v-if="container.auxiliaryLine.isOpen && container.auxiliaryLine.isShowYLine"
      class="auxiliary-line-y"
      :style="{ left: auxiliaryLinePos.x + 'px' }"
    ></div>
    <div
      id="flowContainer"
      class="flow-container"
      :class="{ grid: flowData.config.showGrid, zoomIn: currentTool.type == 'zoom-in', zoomOut: currentTool.type == 'zoom-out', canScale: container.scaleFlag, canDrag: container.dragFlag, canMultiple: rectangleMultiple.flag }"
      :style="{ top: container.pos.top + 'px', left: container.pos.left + 'px', transform: 'scale(' + container.scale + ')', transformOrigin: container.scaleOrigin.x + 'px ' + container.scaleOrigin.y + 'px' }"
      @click.stop="containerHandler"
      @mousedown="mousedownHandler"
      @mousemove="mousemoveHandler"
      @mouseup="mouseupHandler"
      @mousewheel="scaleContainer"
      @DOMMouseScroll="scaleContainer"
      @contextmenu="showContainerContextMenu"
    >
      <flow-node
        v-for="(node, index) in flowData.nodeList"
        :key="index"
        :node="node"
        :plumb="plumb"
        :select.sync="currentSelect"
        :selectGroup.sync="currentSelectGroup"
        :currentTool="currentTool"
        :activityId="activityId"
        @showNodeContextMenu="showNodeContextMenu"
        @isMultiple="isMultiple"
        @updateNodePos="updateNodePos"
        @alignForLine="alignForLine"
        @hideAlignLine="hideAlignLine"
      >
      </flow-node>
      <div
        class="rectangle-multiple"
        v-if="rectangleMultiple.flag && rectangleMultiple.multipling"
        :style="{ top: rectangleMultiple.position.top + 'px', left: rectangleMultiple.position.left + 'px', width: rectangleMultiple.width + 'px', height: rectangleMultiple.height + 'px' }"
      >
      </div>
    </div>
    <!-- <div class="container-scale">
			缩放倍数：{{ container.scaleShow }}%
		</div>
		<div class="mouse-position">
			x: {{ mouse.position.x }}, y: {{ mouse.position.y }}
		</div> -->
    <vue-context-menu
      class="customMultiMenuClass"
      :contextMenuData="containerContextMenuData"
      @flowInfo="flowInfo"
      @paste="paste"
      @selectAll="selectAll"
      @saveFlow="saveFlow"
      @verticaLeft="verticaLeft"
      @verticalCenter="verticalCenter"
      @verticalRight="verticalRight"
      @levelUp="levelUp"
      @levelCenter="levelCenter"
      @levelDown="levelDown"
      @addRemark="addRemark"
    >
    </vue-context-menu>
    <!-- 节点右键操作 -->
    <vue-context-menu
      class="customMultiMenuClass"
      :contextMenuData="nodeContextMenuData"
      @copyNode="copyNode"
      @deleteNode="deleteNode"
    >
    </vue-context-menu>
  </div>
</template>

<script>
import jsplumb from 'jsplumb'
import { flowConfig } from '../config/args-config.js'
import $ from 'jquery'
import 'jquery-ui/ui/widgets/draggable'
import 'jquery-ui/ui/widgets/droppable'
import 'jquery-ui/ui/widgets/resizable'
import { ZFSN } from '../util/ZFSN.js'
import FlowNode from './FlowNode'

export default {
  props: ['browserType', 'flowData', 'plumb', 'select', 'selectGroup', 'currentTool', 'activityId'],
  components: {
    jsplumb,
    FlowNode,
  },
  mounted() {
    this.initFlowArea()
  },
  data() {
    return {
      ctx: null,
      currentSelect: this.select,
      currentSelectGroup: this.selectGroup,
      container: {
        pos: {
          //每个框架不同，不能用-3000
          top: -500,
          left: -500,
        },
        dragFlag: false,
        draging: false,
        scale: flowConfig.defaultStyle.containerScale.init,
        scaleFlag: false,
        scaleOrigin: {
          x: 0,
          y: 0,
        },
        scaleShow: ZFSN.mul(flowConfig.defaultStyle.containerScale.init, 100),
        auxiliaryLine: {
          isOpen: flowConfig.defaultStyle.isOpenAuxiliaryLine,
          isShowXLine: false,
          isShowYLine: false,
          controlFnTimesFlag: true,
        },
      },
      auxiliaryLinePos: {
        x: 0,
        y: 0,
      },
      mouse: {
        position: {
          x: 0,
          y: 0,
        },
        tempPos: {
          x: 0,
          y: 0,
        },
      },
      rectangleMultiple: {
        flag: false,
        multipling: false,
        position: {
          top: 0,
          left: 0,
        },
        height: 0,
        width: 0,
      },
      containerContextMenuData: flowConfig.contextMenu.container,
      nodeContextMenuData: flowConfig.contextMenu.node,
      tempLinkId: '',
      clipboard: [],
    }
  },
  methods: {
    initFlowArea() {
      const that = this
      that.ctx = document.getElementById('flowContainer').parentNode
      $('.flow-container').droppable({
        accept: function (t) {
          if (t[0].className.indexOf('node-item') != -1) {
            let event = window.event || 'firefox'
            if (that.ctx.contains(event.srcElement) || event == 'firefox') {
              return true
            }
          }
          return false
        },
        hoverClass: 'flow-container-active',
        drop: function (event, ui) {
          let belongto = ui.draggable.attr('belongto')
          let type = ui.draggable.attr('type')
          that.$emit('selectTool', 'drag')
          that.$emit('findNodeConfig', belongto, type, (node) => {
            if (!node) {
              that.$message.error('未知的节点类型！')
              return
            }
            that.addNewNode(node)
          })
        },
      })
    },
    mousedownHandler(e) {
      const that = this

      let event = window.event || e

      if (event.button == 0) {
        if (that.container.dragFlag) {
          that.mouse.tempPos = that.mouse.position
          that.container.draging = true
        }

        that.currentSelectGroup = []
        if (that.rectangleMultiple.flag) {
          that.mouse.tempPos = that.mouse.position
          that.rectangleMultiple.multipling = true
        }
      }
    },
    mousemoveHandler(e) {
      const that = this

      let event = window.event || e

      if (event.target.id == 'flowContainer') {
        that.mouse.position = {
          x: event.offsetX,
          y: event.offsetY,
        }
      } else {
        let cn = event.target.className
        let tn = event.target.tagName
        if (cn != 'lane-text' && cn != 'lane-text-div' && tn != 'svg' && tn != 'path' && tn != 'I') {
          that.mouse.position.x = event.target.offsetLeft + event.offsetX
          that.mouse.position.y = event.target.offsetTop + event.offsetY
        }
      }
      if (that.container.draging) {
        let nTop = that.container.pos.top + (that.mouse.position.y - that.mouse.tempPos.y)
        let nLeft = that.container.pos.left + (that.mouse.position.x - that.mouse.tempPos.x)
        if (nTop >= 0) nTop = 0
        if (nLeft >= 0) nLeft = 0
        that.container.pos = {
          top: nTop,
          left: nLeft,
        }
      }
      if (that.rectangleMultiple.multipling) {
        let h = that.mouse.position.y - that.mouse.tempPos.y
        let w = that.mouse.position.x - that.mouse.tempPos.x
        let t = that.mouse.tempPos.y
        let l = that.mouse.tempPos.x
        if (h >= 0 && w < 0) {
          w = -w
          l -= w
        } else if (h < 0 && w >= 0) {
          h = -h
          t -= h
        } else if (h < 0 && w < 0) {
          h = -h
          w = -w
          t -= h
          l -= w
        }
        that.rectangleMultiple.height = h
        that.rectangleMultiple.width = w
        that.rectangleMultiple.position.top = t
        that.rectangleMultiple.position.left = l
      }
    },
    mouseupHandler() {
      const that = this

      if (that.container.draging) that.container.draging = false
      if (that.rectangleMultiple.multipling) {
        that.judgeSelectedNode()
        that.rectangleMultiple.multipling = false
        that.rectangleMultiple.width = 0
        that.rectangleMultiple.height = 0
      }
    },
    judgeSelectedNode() {
      const that = this

      let ay = that.rectangleMultiple.position.top
      let ax = that.rectangleMultiple.position.left
      let by = ay + that.rectangleMultiple.height
      let bx = ax + that.rectangleMultiple.width

      let nodeList = that.flowData.nodeList
      nodeList.forEach(function (node, index) {
        if (node.y >= ay && node.x >= ax && node.y <= by && node.x <= bx) {
          that.plumb.addToDragSelection(noaddToDragSelectionde.id)
          that.currentSelectGroup.push(node)
        }
      })
    },
    scaleContainer(e) {
      const that = this

      let event = window.event || e

      if (that.container.scaleFlag) {
        if (that.browserType == 2) {
          if (event.detail < 0) {
            that.enlargeContainer()
          } else {
            that.narrowContainer()
          }
        } else {
          if (event.deltaY < 0) {
            that.enlargeContainer()
          } else if (that.container.scale) {
            that.narrowContainer()
          }
        }
      }
    },
    enlargeContainer() {
      const that = this
      that.container.scaleOrigin.x = that.mouse.position.x
      that.container.scaleOrigin.y = that.mouse.position.y
      let newScale = ZFSN.add(that.container.scale, flowConfig.defaultStyle.containerScale.onceEnlarge)
      if (newScale <= flowConfig.defaultStyle.containerScale.max) {
        that.container.scale = newScale
        that.container.scaleShow = ZFSN.mul(that.container.scale, 100)
        that.plumb.setZoom(that.container.scale)
      }
    },
    narrowContainer() {
      const that = this
      that.container.scaleOrigin.x = that.mouse.position.x
      that.container.scaleOrigin.y = that.mouse.position.y
      let newScale = ZFSN.sub(that.container.scale, flowConfig.defaultStyle.containerScale.onceNarrow)
      if (newScale >= flowConfig.defaultStyle.containerScale.min) {
        that.container.scale = newScale
        that.container.scaleShow = ZFSN.mul(that.container.scale, 100)
        that.plumb.setZoom(that.container.scale)
      }
    },
    showContainerContextMenu(e) {
      let event = window.event || e

      event.preventDefault()
      $('.vue-contextmenuName-node-menu').css('display', 'none')
      $('.vue-contextmenuName-link-menu').css('display', 'none')
      this.selectContainer()
      let x = event.clientX
      let y = event.clientY
      this.containerContextMenuData.axis = { x, y }
    },
    showNodeContextMenu(e) {
      let event = window.event || e

      event.preventDefault()
      $('.vue-contextmenuName-flow-menu').css('display', 'none')
      $('.vue-contextmenuName-link-menu').css('display', 'none')
      let x = event.clientX
      let y = event.clientY
      this.nodeContextMenuData.axis = { x, y }
    },
    flowInfo() {
      const that = this

      let nodeList = that.flowData.nodeList
      let linkList = that.flowData.linkList
      alert('当前流程图中有 ' + nodeList.length + ' 个节点，有 ' + linkList.length + ' 条连线。')
    },
    paste() {
      const that = this
      let dis = 0
      that.clipboard.forEach(function (node, index) {
        let newNode = Object.assign({}, node)
        newNode.id = newNode.type + '-' + ZFSN.getId()
        let nodePos = that.computeNodePos(that.mouse.position.x + dis, that.mouse.position.y + dis)
        newNode.x = nodePos.x
        newNode.y = nodePos.y
        dis += 20
        that.flowData.nodeList.push(newNode)
      })
    },
    selectAll() {
      const that = this
      that.flowData.nodeList.forEach(function (node, index) {
        that.plumb.addToDragSelection(node.id)
        that.currentSelectGroup.push(node)
      })
    },
    saveFlow() {
      this.$emit('saveFlow')
    },
    checkAlign() {
      if (this.currentSelectGroup.length < 2) {
        this.$message.error('请选择至少两个节点！')
        return false
      }
      return true
    },
    verticaLeft() {
      const that = this

      if (!that.checkAlign()) return
      let nodeList = that.flowData.nodeList
      let selectGroup = that.currentSelectGroup
      let baseX = selectGroup[0].x
      let baseY = selectGroup[0].y
      for (let i = 1; i < selectGroup.length; i++) {
        baseY = baseY + selectGroup[i - 1].height + flowConfig.defaultStyle.alignSpacing.vertical
        let f = nodeList.filter((n) => n.id == selectGroup[i].id)[0]
        f.tx = baseX
        f.ty = baseY
        that.plumb.animate(
          selectGroup[i].id,
          { top: baseY, left: baseX },
          {
            duration: flowConfig.defaultStyle.alignDuration,
            complete: function () {
              f.x = f.tx
              f.y = f.ty
            },
          }
        )
      }
    },
    verticalCenter() {
      const that = this

      if (!that.checkAlign()) return
      let nodeList = that.flowData.nodeList
      let selectGroup = that.currentSelectGroup
      let baseX = selectGroup[0].x
      let baseY = selectGroup[0].y
      let firstX = baseX
      for (let i = 1; i < selectGroup.length; i++) {
        baseY = baseY + selectGroup[i - 1].height + flowConfig.defaultStyle.alignSpacing.vertical
        baseX = firstX + ZFSN.div(selectGroup[0].width, 2) - ZFSN.div(selectGroup[i].width, 2)
        let f = nodeList.filter((n) => n.id == selectGroup[i].id)[0]
        f.tx = baseX
        f.ty = baseY
        that.plumb.animate(
          selectGroup[i].id,
          { top: baseY, left: baseX },
          {
            duration: flowConfig.defaultStyle.alignDuration,
            complete: function () {
              f.x = f.tx
              f.y = f.ty
            },
          }
        )
      }
    },
    verticalRight() {
      const that = this

      if (!that.checkAlign()) return
      let nodeList = that.flowData.nodeList
      let selectGroup = that.currentSelectGroup
      let baseX = selectGroup[0].x
      let baseY = selectGroup[0].y
      let firstX = baseX
      for (let i = 1; i < selectGroup.length; i++) {
        baseY = baseY + selectGroup[i - 1].height + flowConfig.defaultStyle.alignSpacing.vertical
        baseX = firstX + selectGroup[0].width - selectGroup[i].width
        let f = nodeList.filter((n) => n.id == selectGroup[i].id)[0]
        f.tx = baseX
        f.ty = baseY
        that.plumb.animate(
          selectGroup[i].id,
          { top: baseY, left: baseX },
          {
            duration: flowConfig.defaultStyle.alignDuration,
            complete: function () {
              f.x = f.tx
              f.y = f.ty
            },
          }
        )
      }
    },
    levelUp() {
      const that = this

      if (!that.checkAlign()) return
      let nodeList = that.flowData.nodeList
      let selectGroup = that.currentSelectGroup
      let baseX = selectGroup[0].x
      let baseY = selectGroup[0].y
      for (let i = 1; i < selectGroup.length; i++) {
        baseX = baseX + selectGroup[i - 1].width + flowConfig.defaultStyle.alignSpacing.level
        let f = nodeList.filter((n) => n.id == selectGroup[i].id)[0]
        f.tx = baseX
        f.ty = baseY
        that.plumb.animate(
          selectGroup[i].id,
          { top: baseY, left: baseX },
          {
            duration: flowConfig.defaultStyle.alignDuration,
            complete: function () {
              f.x = f.tx
              f.y = f.ty
            },
          }
        )
      }
    },
    levelCenter() {
      const that = this

      if (!that.checkAlign()) return
      let nodeList = that.flowData.nodeList
      let selectGroup = that.currentSelectGroup
      let baseX = selectGroup[0].x
      let baseY = selectGroup[0].y
      let firstY = baseY
      for (let i = 1; i < selectGroup.length; i++) {
        baseY = firstY + ZFSN.div(selectGroup[0].height, 2) - ZFSN.div(selectGroup[i].height, 2)
        baseX = baseX + selectGroup[i - 1].width + flowConfig.defaultStyle.alignSpacing.level
        let f = nodeList.filter((n) => n.id == selectGroup[i].id)[0]
        f.tx = baseX
        f.ty = baseY
        that.plumb.animate(
          selectGroup[i].id,
          { top: baseY, left: baseX },
          {
            duration: flowConfig.defaultStyle.alignDuration,
            complete: function () {
              f.x = f.tx
              f.y = f.ty
            },
          }
        )
      }
    },
    levelDown() {
      const that = this

      if (!that.checkAlign()) return
      let nodeList = that.flowData.nodeList
      let selectGroup = that.currentSelectGroup
      let baseX = selectGroup[0].x
      let baseY = selectGroup[0].y
      let firstY = baseY
      for (let i = 1; i < selectGroup.length; i++) {
        baseY = firstY + selectGroup[0].height - selectGroup[i].height
        baseX = baseX + selectGroup[i - 1].width + flowConfig.defaultStyle.alignSpacing.level
        let f = nodeList.filter((n) => n.id == selectGroup[i].id)[0]
        f.tx = baseX
        f.ty = baseY
        that.plumb.animate(
          selectGroup[i].id,
          { top: baseY, left: baseX },
          {
            duration: flowConfig.defaultStyle.alignDuration,
            complete: function () {
              f.x = f.tx
              f.y = f.ty
            },
          }
        )
      }
    },
    addRemark() {
      const that = this
      alert('添加备注(待完善)...')
    },
    copyNode() {
      const that = this

      that.clipboard = []
      if (that.currentSelectGroup.length > 0) {
        that.clipboard = Object.assign([], that.currentSelectGroup)
      } else if (that.currentSelect.id) {
        that.clipboard.push(that.currentSelect)
      }
    },
    getConnectionsByNodeId(nodeId) {
      const that = this
      let conns1 = that.plumb.getConnections({
        source: nodeId,
      })
      let conns2 = that.plumb.getConnections({
        target: nodeId,
      })
      return conns1.concat(conns2)
    },
    deleteNode() {
      const that = this
      let nodeList = that.flowData.nodeList
      let linkList = that.flowData.linkList
      let arr = []

      arr.push(Object.assign({}, that.currentSelect))

      arr.forEach(function (c, index) {
        let conns = that.getConnectionsByNodeId(c.id)
        conns.forEach(function (conn, index) {
          linkList.splice(
            linkList.findIndex((link) => link.sourceId == conn.sourceId || link.targetId == conn.targetId),
            1
          )
        })
        that.plumb.deleteEveryEndpoint()
        let inx = nodeList.findIndex((node) => node.id == c.id)
        nodeList.splice(inx, 1)
        that.$nextTick(() => {
          linkList.forEach(function (link, index) {
            let conn = that.plumb.connect({
              source: link.sourceId,
              target: link.targetId,
              anchor: flowConfig.jsPlumbConfig.anchor.default,
              connector: [
                link.cls.linkType,
                {
                  gap: 5,
                  cornerRadius: 8,
                  alwaysRespectStubs: true,
                },
              ],
              paintStyle: {
                stroke: link.cls.linkColor,
                strokeWidth: link.cls.linkThickness,
              },
            })
            if (link.label != '') {
              conn.setLabel({
                label: link.label,
                cssClass: 'linkLabel',
              })
            }
          })
        })
      })
      that.selectContainer()
    },
    addNewNode(node) {
      const that = this

      let x = that.mouse.position.x
      let y = that.mouse.position.y
      let nodePos = that.computeNodePos(x, y)
      x = nodePos.x
      y = nodePos.y

      let newNode = Object.assign({}, node)
      newNode.id = newNode.type + '-' + ZFSN.getId()
      newNode.height = 50
      if (newNode.type == 'start' || newNode.type == 'end' || newNode.type == 'event' || newNode.type == 'gateway') {
        newNode.x = x - 25
        newNode.width = 50
      } else {
        newNode.x = x - 60
        newNode.width = 120
      }
      newNode.y = y - 25
      if (newNode.type == 'x-lane') {
        newNode.height = 200
        newNode.width = 400
      } else if (newNode.type == 'y-lane') {
        newNode.height = 400
        newNode.width = 200
      }
      that.flowData.nodeList.push(newNode)
    },
    computeNodePos(x, y) {
      const pxx = flowConfig.defaultStyle.alignGridPX[0]
      const pxy = flowConfig.defaultStyle.alignGridPX[1]
      if (x % pxx) x = pxx - (x % pxx) + x
      if (y % pxy) y = pxy - (y % pxy) + y
      return {
        x: x,
        y: y,
      }
    },
    containerHandler() {
      const that = this

      that.selectContainer()
      let toolType = that.currentTool.type
      if (toolType == 'zoom-in') {
        that.enlargeContainer()
      } else if (toolType == 'zoom-out') {
        that.narrowContainer()
      }
    },
    selectContainer() {
      this.currentSelect = {}
      this.$emit('getShortcut')
    },
    isMultiple(callback) {
      callback(this.rectangleMultiple.flag)
    },
    updateNodePos() {
      const that = this

      let nodeList = that.flowData.nodeList
      that.currentSelectGroup.forEach(function (node, index) {
        let l = parseInt($('#' + node.id).css('left'))
        let t = parseInt($('#' + node.id).css('top'))
        let f = nodeList.filter((n) => n.id == node.id)[0]
        f.x = l
        f.y = t
      })
    },
    alignForLine(e) {
      const that = this

      if (that.selectGroup.length > 1) return
      if (that.container.auxiliaryLine.controlFnTimesFlag) {
        let elId = e.el.id
        let nodeList = that.flowData.nodeList
        nodeList.forEach(function (node, index) {
          if (elId != node.id) {
            let dis = flowConfig.defaultStyle.showAuxiliaryLineDistance,
              elPos = e.pos,
              elH = e.el.offsetHeight,
              elW = e.el.offsetWidth,
              disX = elPos[0] - node.x,
              disY = elPos[1] - node.y
            if ((disX >= -dis && disX <= dis) || (disX + elW >= -dis && disX + elW <= dis)) {
              that.container.auxiliaryLine.isShowYLine = true
              that.auxiliaryLinePos.x = node.x + that.container.pos.left
              let nodeMidPointX = node.x + node.width / 2
              if (nodeMidPointX == elPos[0] + elW / 2) {
                that.auxiliaryLinePos.x = nodeMidPointX + that.container.pos.left
              }
            }
            if ((disY >= -dis && disY <= dis) || (disY + elH >= -dis && disY + elH <= dis)) {
              that.container.auxiliaryLine.isShowXLine = true
              that.auxiliaryLinePos.y = node.y + that.container.pos.top
              let nodeMidPointY = node.y + node.height / 2
              if (nodeMidPointY == elPos[1] + elH / 2) {
                that.auxiliaryLinePos.y = nodeMidPointY + that.container.pos.left
              }
            }
          }
        })
        that.container.auxiliaryLine.controlFnTimesFlag = false
        setTimeout(function () {
          that.container.auxiliaryLine.controlFnTimesFlag = true
        }, 200)
      }
    },
    hideAlignLine() {
      if (this.container.auxiliaryLine.isOpen) {
        this.container.auxiliaryLine.isShowXLine = false
        this.container.auxiliaryLine.isShowYLine = false
      }
    },
  },
  watch: {
    select(val) {
      this.currentSelect = val
      if (this.tempLinkId != '') {
        $('#' + this.tempLinkId).removeClass('link-active')
        this.tempLinkId = ''
      }
      if (this.currentSelect.type == 'link') {
        this.tempLinkId = this.currentSelect.id
        $('#' + this.currentSelect.id).addClass('link-active')
      }
    },
    currentSelect: {
      handler(val) {
        this.$emit('update:select', val)
      },
      deep: true,
    },
    selectGroup(val) {
      this.currentSelectGroup = val
      if (this.currentSelectGroup.length <= 0) this.plumb.clearDragSelection()
    },
    currentSelectGroup: {
      handler(val) {
        this.$emit('update:selectGroup', val)
      },
      deep: true,
    },
  },
}
</script>

<style lang="less" scoped>
@import '../style/flow-area.less';
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771

modules文件下的FlowAttr.vue文件代码如下

<template>
  <div>
    <a-tabs
      size="small"
      defaultActiveKey="flow-attr"
      :activeKey="activeKey"
    >
      <a-tab-pane key="flow-attr">
        <span slot="tab">
          <a-icon type="cluster" />
          流程属性
        </span>
        <a-form layout="horizontal">
          <a-form-item
            label="流程id"
            :label-col="formItemLayout.labelCol"
            :wrapper-col="formItemLayout.wrapperCol"
          >
            <a-input
              :value="flowData.attr.id"
              disabled
            />
          </a-form-item>
        </a-form>
      </a-tab-pane>
      <a-tab-pane key="node-attr">
        <span slot="tab">
          <a-icon type="profile" />
          节点属性
        </span>
        <template v-if="currentSelect.type == 'start round mix'">
          <a-form layout="horizontal">
            <a-form-item
              label="类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-tag color="purple">{{ currentSelect.type }}</a-tag>
            </a-form-item>
            <a-form-item
              label="id"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="currentSelect.id"
                disabled
              />
            </a-form-item>
            <a-form-item
              label="名称"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                placeholder="请输入节点名称"
                :value="currentSelect.name"
                @change="nameChange"
              />
            </a-form-item>
          </a-form>
        </template>
        <template v-if="currentSelect.type == 'end round'">
          <a-form layout="horizontal">
            <a-form-item
              label="类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-tag color="purple">{{ currentSelect.type }}</a-tag>
            </a-form-item>
            <a-form-item
              label="id"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="currentSelect.id"
                disabled
              />
            </a-form-item>
            <a-form-item
              label="名称"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                placeholder="请输入节点名称"
                :value="currentSelect.name"
                @change="nameChange"
              />
            </a-form-item>
          </a-form>
        </template>
        <template v-if="currentSelect.type == 'node'">
          <a-form layout="horizontal">
            <a-form-item
              label="类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-tag color="purple">{{ currentSelect.type }}</a-tag>
            </a-form-item>
            <a-form-item
              label="id"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="currentSelect.id"
                disabled
              />
            </a-form-item>
            <a-form-item
              label="名称"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                placeholder="请输入节点名称"
                :value="currentSelect.name"
                @change="nameChange"
              />
            </a-form-item>
            <!-- <a-form-item
              label="驳回类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                v-model="setInfo.nodeRejectType"
                @change="e => nodeRejectTypeChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in nodeRejectType"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item> -->
            <a-form-item
              label="驳回节点"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                v-model="setInfo.nodeRejectStep"
                @change="e => nodeRejectStepChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in allNodeList"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item>
            <!--  -->
            <a-form-item
              label="会签方式"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                v-model="setInfo.nodeConfluenceType"
                @change="e => nodeConfluenceTypeChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in nodeConfluenceType"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item>
            <a-form-item
              label="回调URL"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="setInfo.thirdPartyUrl "
                @change="linkThirdPartyUrlChange"
              />
            </a-form-item>
            <a-form-item
              label="执行权限"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                :default-value="setInfo.nodeDesignate"
                v-model="setInfo.nodeDesignate"
                @change="e => nodeDesignateChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in nodeDesignateData"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item>
            <a-form-item
              v-show="specialShow"
              v-if="setInfo.nodeDesignate=='SPECIAL_USER'"
              label="指定用户"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-col
                :md="18"
                :sm="18"
              >
                <a-input
                  disabled="disabled"
                  v-model="specialName"
                />
              </a-col>
              <a-col
                :md="6"
                :sm="6"
              >
                <a-button
                  icon="search"
                  @click="setUser()"
                />
              </a-col>
            </a-form-item>
            <a-form-item
              v-show="specialShow"
              v-else
              label="指定角色"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-col
                :md="18"
                :sm="18"
              >
                <a-input
                  disabled="disabled"
                  v-model="specialName"
                />
              </a-col>
              <a-col
                :md="6"
                :sm="6"
              >
                <a-button
                  icon="search"
                  @click="setRole()"
                />
              </a-col>
            </a-form-item>
            <!-- <a-form-item
              label="当前部门"
              v-if="setInfo.nodeDesignate=='SPECIAL_ROLE'"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-switch
                checkedChildren="是"
                unCheckedChildren="否"
                v-model="currentDepart"
                @click="currentDepartChange"
              />
            </a-form-item> -->
          </a-form>
        </template>
        <template v-else-if="currentSelect.type == 'fork'">
          <a-form layout="horizontal">
            <a-form-item
              label="类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-tag color="purple">{{ currentSelect.type }}</a-tag>
            </a-form-item>
            <a-form-item
              label="id"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="currentSelect.id"
                disabled
              />
            </a-form-item>
            <a-form-item
              label="名称"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                placeholder="请输入节点名称"
                :value="currentSelect.name"
                @change="nameChange"
              />
            </a-form-item>
          </a-form>
        </template>
        <template v-else-if="currentSelect.type == 'join'">
          <a-form layout="horizontal">
            <a-form-item
              label="类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-tag color="purple">{{ currentSelect.type }}</a-tag>
            </a-form-item>
            <a-form-item
              label="id"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="currentSelect.id"
                disabled
              />
            </a-form-item>
            <a-form-item
              label="名称"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                placeholder="请输入节点名称"
                :value="currentSelect.name"
                @change="nameChange"
              />
            </a-form-item>
            <!-- <a-form-item
              label="驳回类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                v-model="setInfo.nodeRejectType"
                @change="e => nodeRejectTypeChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in nodeRejectType"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item> -->
            <a-form-item
              label="驳回节点"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                v-model="setInfo.nodeRejectStep"
                @change="e => nodeRejectStepChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in allNodeList"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item>
            <a-form-item
              label="会签方式"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                v-model="setInfo.nodeConfluenceType"
                @change="e => nodeConfluenceTypeChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in nodeConfluenceType"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item>
            <a-form-item
              label="回调URL"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="setInfo.thirdPartyUrl"
                @change="linkThirdPartyUrlChange"
              />
            </a-form-item>
            <a-form-item
              label="执行权限"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-select
                :default-value="setInfo.nodeDesignate"
                v-model="setInfo.nodeDesignate"
                @change="e => nodeDesignateChange(e)"
              >
                <a-select-option
                  v-for="(item,index) in nodeDesignateData"
                  :key="index"
                  :value="item.id"
                >{{ item.name }}</a-select-option>
              </a-select>
            </a-form-item>
            <a-form-item
              v-show="specialShow"
              v-if="setInfo.nodeDesignate=='SPECIAL_USER'"
              label="指定用户"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-col
                :md="18"
                :sm="18"
              >
                <a-input
                  disabled="disabled"
                  v-model="specialName"
                />
              </a-col>
              <a-col
                :md="6"
                :sm="6"
              >
                <a-button
                  icon="search"
                  @click="setUser()"
                />
              </a-col>
            </a-form-item>
            <a-form-item
              v-show="specialShow"
              v-else
              label="指定角色"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-col
                :md="18"
                :sm="18"
              >
                <a-input
                  disabled="disabled"
                  v-model="specialName"
                />
              </a-col>
              <a-col
                :md="6"
                :sm="6"
              >
                <a-button
                  icon="search"
                  @click="setRole()"
                />
              </a-col>
            </a-form-item>
            <!-- <a-form-item
              label="当前部门"
              v-if="setInfo.nodeDesignate=='SPECIAL_ROLE'"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-switch
                checkedChildren="是"
                unCheckedChildren="否"
                v-model="currentDepart"
                @click="currentDepartChange"
              />
            </a-form-item> -->
          </a-form>
        </template>
        <template v-else-if="currentSelect.type == 'x-lane' || currentSelect.type == 'y-lane'">
          <a-form layout="horizontal">
            <a-form-item
              label="类型"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-tag color="purple">{{ currentSelect.type }}</a-tag>
            </a-form-item>
            <a-form-item
              label="id"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                :value="currentSelect.id"
                disabled
              />
            </a-form-item>
            <a-form-item
              label="名称"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-input
                placeholder="请输入节点名称"
                :value="currentSelect.name"
                @change="nameChange"
              />
            </a-form-item>
          </a-form>
        </template>
      </a-tab-pane>
      <a-tab-pane key="link-attr">
        <span slot="tab">
          <a-icon type="branches" />
          连线属性
        </span>
        <a-form layout="horizontal">
          <a-form-item
            label="id"
            :label-col="formItemLayout.labelCol"
            :wrapper-col="formItemLayout.wrapperCol"
          >
            <a-input
              :value="currentSelect.id"
              disabled
            />
          </a-form-item>
          <a-form-item
            label="源节点"
            :label-col="formItemLayout.labelCol"
            :wrapper-col="formItemLayout.wrapperCol"
          >
            <a-input
              :value="currentSelect.sourceId"
              disabled
            />
          </a-form-item>
          <a-form-item
            label="目标节点"
            :label-col="formItemLayout.labelCol"
            :wrapper-col="formItemLayout.wrapperCol"
          >
            <a-input
              :value="currentSelect.targetId"
              disabled
            />
          </a-form-item>
          <a-form-item
            label="文本"
            :label-col="formItemLayout.labelCol"
            :wrapper-col="formItemLayout.wrapperCol"
          >
            <a-input
              :value="currentSelect.label"
              @change="linkLabelChange"
            />
          </a-form-item>
          <a-form-item
            label="添加条件"
            :label-col="formItemLayout.labelCol"
            :wrapper-col="formItemLayout.wrapperCol"
          >
            <a-button
              icon="plus"
              @click="addList()"
            />
          </a-form-item>
          <div
            :key="i"
            v-for="(item,i) in compares"
          >
            <a-form-item
              :label="'条件'+i"
              :label-col="formItemLayout.labelCol"
              :wrapper-col="formItemLayout.wrapperCol"
            >
              <a-col
                :md="10"
                :sm="10"
              >
                <a-select
                  placeholder="关系"
                  v-model="compares[i].condition"
                  @change="e => conditionChange(i,e)"
                >
                  <a-select-option
                    v-for="(condition,index) in conditions "
                    :key="index"
                    :value="condition.id"
                  >{{ condition.name }}</a-select-option>
                </a-select>
              </a-col>
              <a-col
                :md="10"
                :sm="10"
              >
                <a-select
                  placeholder="属性"
                  v-model="compares[i].fieldName"
                  @change="e => fieldNameChange(i,e)"
                >
                  <a-select-option
                    v-for="(fieldName,index) in fieldNames "
                    :key="index"
                    :value="fieldName.id"
                  >{{ fieldName.name }}</a-select-option>
                </a-select>
              </a-col>
              <a-col
                :md="4"
                :sm="4"
              >
                <a-button
                  icon="minus"
                  @click="subList(i)"
                  v-if="compares.length>0"
                />
              </a-col>
              <a-col
                :md="10"
                :sm="10"
              >
                <a-select
                  placeholder="比较"
                  v-model="compares[i].operation"
                  @change="e => operationChange(i,e)"
                >
                  <a-select-option
                    v-for="(operation,index) in operations"
                    :key="index"
                    :value="operation.id"
                  >{{ operation.name }}</a-select-option>
                </a-select>
              </a-col>
              <a-col
                :md="10"
                :sm="10"
                v-if="compares[i].fieldName=='CreatedUserId'||compares[i].fieldName=='CreatedOrgId'"
              >
                <a-tooltip placement="topLeft">
                  <span
                    v-if="compares[i].valueName"
                    slot="title"
                  >
                    {{ compares[i].valueName }}
                  </span>
                  <template
                    v-else
                    slot="title"
                  >
                    值
                  </template>
                  <div>
                    <a-input
                      :disabled="true"
                      v-model="compares[i].valueName"
                      clearable
                      placeholder="值"
                    />
                  </div>
                </a-tooltip>
              </a-col>
              <a-col
                :md="10"
                :sm="10"
                v-else
              >
                <a-input
                  v-model="compares[i].value"
                  clearable
                  placeholder="值"
                  @change="e => valueChange(i,e)"
                />
              </a-col>
              <a-col
                :md="4"
                :sm="4"
                v-if="compares[i].fieldName=='CreatedUserId'"
              >
                <a-button
                  icon="search"
                  @click="setUser(i)"
                  v-if="compares.length>0"
                />
              </a-col>
              <a-col
                :md="4"
                :sm="4"
                v-if="compares[i].fieldName=='CreatedOrgId'"
              >
                <a-button
                  icon="search"
                  @click="setRole(i)"
                  v-if="compares.length>0"
                />
              </a-col>
            </a-form-item>
          </div>
        </a-form>
      </a-tab-pane>
    </a-tabs>
  </div>
</template>

<script>
import jsplumb from 'jsplumb'

export default {
  props: ['plumb', 'flowData', 'select', 'fieldNames'],
  components: {
    jsplumb,
  },
  data() {
    return {
      currentSelect: this.select,
      formItemLayout: {
        labelCol: { span: 6 },
        wrapperCol: { span: 16 },
      },
      compares: this.select.compares,
      setInfo: this.select.setInfo,
      specialName: '',
      // currentDepart: false,
      operations: [
        { id: '>', name: '>' },
        { id: '<', name: '<' },
        { id: '>=', name: '>=' },
        { id: '<=', name: '<=' },
        { id: '=', name: '=' },
        { id: '!=', name: '!=' },
        { id: 'in', name: 'in' },
        { id: 'not in', name: 'not in' },
      ],
      conditions: [
        { id: 'and', name: '并且' },
        { id: 'or', name: '或者' },
      ],
      specialShow: false,
      nodeDesignateData: [
        { id: 'ALL_USER', name: '所有用户' },
        { id: 'SPECIAL_USER', name: '指定用户' },
        { id: 'SPECIAL_ROLE', name: '指定角色' },
        // { id: 'RUNTIME_SPECIAL_ROLE', name: '运行时指定角色' },
        // { id: 'RUNTIME_SPECIAL_USER', name: '运行时指定用户' },
      ],
      // 驳回类型
      // nodeRejectType: [
      //   { id: '0', name: '前一步' },
      //   { id: '1', name: '第一步' },
      // ],
      nodeConfluenceType: [
        { id: 'all', name: '全部通过' },
        { id: 'one', name: '至少有一个通过' },
      ],
      activeKey: 'flow-attr',
      currentCompare: null,
    }
  },
  methods: {
    nameChange(e) {
      this.currentSelect.name = e.target.value
      this.currentSelect.setInfo.nodeName = this.currentSelect.name
      this.currentSelect.setInfo.nodeCode = this.currentSelect.name
    },
    linkLabelChange(e) {
      const that = this
      let label = e.target.value

      that.currentSelect.label = label
      let conn = that.plumb.getConnections({
        source: that.currentSelect.sourceId,
        target: that.currentSelect.targetId,
      })[0]
      if (label != '') {
        conn.setLabel({
          label: label,
          cssClass: 'linkLabel',
        })
      } else {
        let labelOverlay = conn.getLabelOverlay()
        if (labelOverlay) conn.removeOverlay(labelOverlay.id)
      }
    },
    linkThirdPartyUrlChange(e) {
      const that = this
      let thirdPartyUrl = e.target.value
      that.currentSelect.setInfo.thirdPartyUrl = thirdPartyUrl
    },
    // 驳回类型切换
    // nodeRejectTypeChange(e) {
    //   const that = this
    //   let nodeRejectType = e
    //   that.setInfo.nodeRejectType = nodeRejectType
    //   that.currentSelect.setInfo.nodeRejectType = nodeRejectType
    // },
    nodeRejectStepChange(e) {
      const that = this
      let nodeRejectStep = e
      that.setInfo.nodeRejectStep = nodeRejectStep
      that.currentSelect.setInfo.nodeRejectStep = nodeRejectStep
    },
    nodeConfluenceTypeChange(e) {
      const that = this
      let nodeConfluenceType = e
      that.setInfo.nodeConfluenceType = nodeConfluenceType
      that.currentSelect.setInfo.nodeConfluenceType = nodeConfluenceType
    },
    addList() {
      const that = this
      let compares = that.compares
      compares.push({ fieldType: 'form', value: '', name: '', condition: 'and', valueName: '', operation: '=' })
      that.compares = compares
      that.currentSelect.compares = compares
    },
    subList(e) {
      const that = this
      let compares = that.compares
      if (compares.length == 1) {
        compares = [{ fieldType: 'form', value: '', name: '', condition: 'and', valueName: '', operation: '=' }]
      } else {
        compares.splice(e, 1)
      }
      that.compares = compares
      that.currentSelect.compares = compares
    },
    fieldNameChange(i, e) {
      const that = this
      const compares = that.compares
      compares[i].fieldName = e
      that.currentSelect.compares = compares
    },
    conditionChange(i, e) {
      const that = this
      const compares = that.compares
      compares[i].condition = e
      that.currentSelect.compares = compares
    },
    operationChange(i, e) {
      const that = this
      const compares = that.compares
      compares[i].operation = e
      that.currentSelect.compares = compares
    },
    valueChange(i, e) {
      const that = this
      const compares = that.compares
      that.currentSelect.compares = compares
    },
    //打开选择用户界面
    setUser(value) {
      const that = this
      if (that.currentSelect.type == 'link') {
        that.currentCompare = value
        this.$emit('openUser', null)
      } else {
        that.currentCompare = null
        this.$emit('openUser', {
          rowKeyList: that.setInfo.nodeDesignateData,
          rowDataList: this.setInfo.selectRows || [],
        })
      }
    },
    //打开选择角色界面
    setRole(value) {
      const that = this
      if (that.currentSelect.type == 'link') {
        that.currentCompare = value
        this.$emit('openUser', null)
      } else {
        that.currentCompare = null
        this.$emit('openRole', {
          rowKeyList: that.setInfo.nodeDesignateData,
          rowDataList: this.setInfo.selectRows || [],
        })
      }
    },
    setFlowAttrForm(record, type) {
      const that = this
      const nodeDesignateData = []
      const nodeDesignateName = []
      if (record.length) {
        record.forEach((item) => {
          nodeDesignateData.push(item.id)
          nodeDesignateName.push(item.name)
        })
      }
      if (that.currentSelect.type == 'link') {
        that.compares[that.currentCompare].value = nodeDesignateData.join(',')
        that.compares[that.currentCompare].valueName = nodeDesignateName.join(',')
        that.currentSelect.compares = that.compares
      } else {
        that.setInfo.selectRows = record.length > 0 ? record : []
        that.setInfo.nodeDesignateData = nodeDesignateData
        that.setInfo.nodeDesignateName = nodeDesignateName
        that.currentSelect.setInfo.nodeDesignateName = nodeDesignateName
        that.currentSelect.setInfo.nodeDesignateData = nodeDesignateData
        if (nodeDesignateName.length > 0) {
          that.specialName = nodeDesignateName.join(',')
        } else {
          that.specialName = ''
          that.setInfo.nodeDesignate = 'ALL_USER'
          this.currentSelect.setInfo.nodeDesignate = 'ALL_USER'
          this.specialShow = false
        }
      }
    },
    // currentDepartChange(e) {
    //   const that = this
    //   let currentDepart = e
    //   that.currentDepart = currentDepart
    //   that.setInfo.currentDepart = currentDepart
    //   that.currentSelect.setInfo = that.setInfo
    // },
    nodeDesignateChange(e) {
      const that = this
      let nodeDesignate = e
      that.setInfo.nodeDesignate = nodeDesignate
      that.setInfo.nodeDesignateData = []
      that.setInfo.nodeDesignateName = []
      that.setInfo.selectRows = []
      // that.setInfo.currentDepart = false
      // that.currentDepart = false
      that.specialName = ''
      if (nodeDesignate == 'SPECIAL_USER') {
        that.specialShow = true
      } else if (nodeDesignate == 'SPECIAL_ROLE') {
        that.specialShow = true
      } else {
        that.specialShow = false
      }
      that.currentSelect.setInfo.nodeDesignate = nodeDesignate
      that.currentSelect.setInfo.selectRows = []
    },

    // 线数据进行排序
    sortLinkList(linkList) {
      linkList.sort((next, pre) => {
        if (next.sourceId.includes('start')) {
          return -1 //next排到前面
        } else if (pre.targetId.includes('end')) {
          return -1 // pre排到后面
        } else if (next.targetId === pre.sourceId) {
          return -1 //pre排到前面
        } else {
          return 1 // 保持原有顺序
        }
      })
      return linkList
    },

    // 根据线数据顺序进行节点顺序排列
    sortNodeList(nodeList, linkList) {
      if (linkList.length) {
        const _newLinkList = linkList.map((item) => item.sourceId)
        _newLinkList.push(linkList[linkList.length - 1].targetId)
        nodeList.sort((next, pre) => {
          return _newLinkList.indexOf(next.id) - _newLinkList.indexOf(pre.id)
        })
        return nodeList
      }
    },
  },
  watch: {
    select(val) {
      console.log(val, '当前选择的节点')
      this.currentSelect = val
      if (this.currentSelect.type == 'link') {
        this.activeKey = 'link-attr'
        if (!this.currentSelect.compares || this.currentSelect.compares.length == 0) {
          this.currentSelect.compares = [
            { fieldType: 'form', value: '', name: '', condition: 'and', valueName: '', operation: '=' },
          ]
        }
        this.compares = this.currentSelect.compares
      } else if (!this.currentSelect.type) {
        this.activeKey = 'flow-attr'
      } else {
        this.activeKey = 'node-attr'
        if (this.currentSelect.type == 'node' || this.currentSelect.type == 'join') {
          if (!this.currentSelect.setInfo) {
            this.currentSelect.setInfo = {}
            this.currentSelect.setInfo.nodeCode = this.currentSelect.name
            this.currentSelect.setInfo.nodeName = this.currentSelect.name
          }
          if (!this.currentSelect.setInfo.nodeDesignate || this.currentSelect.setInfo.nodeDesignate == 'ALL_USER') {
            this.currentSelect.setInfo.nodeDesignate = 'ALL_USER'
            this.specialShow = false
            this.specialName = ''
          }

          // 驳回节点没有值 ---给默认值
          if (!this.currentSelect.setInfo.nodeRejectStep && this.allNodeList && this.allNodeList.length) {
            this.currentSelect.setInfo.nodeRejectStep = this.allNodeList[this.allNodeList.length - 1].id
          }
          if (!this.currentSelect.setInfo.nodeConfluenceType) {
            this.currentSelect.setInfo.nodeConfluenceType = 'all'
          }
          if (
            this.currentSelect.setInfo.nodeDesignate == 'SPECIAL_USER' ||
            this.currentSelect.setInfo.nodeDesignate == 'SPECIAL_ROLE'
          ) {
            this.specialShow = true
            this.specialName = this.currentSelect.setInfo.nodeDesignateName.join(',')
          }
          this.setInfo = this.currentSelect.setInfo
        }
      }
    },
    currentSelect: {
      handler(val) {
        this.$emit('update:select', val)
      },
      deep: true,
    },
  },
  computed: {
    allNodeList() {
      console.log(this.flowData, 'this.flowData---this.flowData')
      const linkList = this.sortLinkList(this.flowData.linkList)
      let nodeList = this.flowData.nodeList
      if (linkList.length) {
        const _newLinkList = linkList.map((item) => item.sourceId)
        _newLinkList.push(linkList[linkList.length - 1].targetId)
        nodeList.sort((next, pre) => {
          return _newLinkList.indexOf(next.id) - _newLinkList.indexOf(pre.id)
        })
        if (this.select && this.select.id) {
          const _index = nodeList.findIndex((v) => v.id === this.select.id)
          nodeList = nodeList.slice(0, _index)
        }
        console.log(nodeList, 'nodeList----nodeList')
        return nodeList
      }
    },
  },
}
</script>

<style lang="less" scoped>
@import '../style/flow-attr.less';
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035

modules文件下的FlowNode.vue文件代码如下

<template>
  <div
    v-if="node.type == 'start round mix'"
    :id="node.id"
    class="common-circle-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px',
    	cursor: currentTool.type == 'drag' ? 'move' : (currentTool.type == 'connection' ? 'crosshair' :
    																								(currentTool.type == 'zoom-in' ? 'zoom-in' :
    																								(currentTool.type == 'zoom-out' ? 'zoom-out' : 'default'))),
      background:verificationStyle[!!activityId?'1':'4'] }"
    @click.stop="selectNode"
    @contextmenu.stop="showNodeContextMenu"
  >
    <a-icon type="play-circle" />
    {{ node.name }}
  </div>

  <div
    v-else-if="node.type == 'end round'"
    :id="node.id"
    class="common-circle-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px',
    	cursor: currentTool.type == 'drag' ? 'move' : (currentTool.type == 'connection' ? 'crosshair' :
    																								(currentTool.type == 'zoom-in' ? 'zoom-in' :
    																								(currentTool.type == 'zoom-out' ? 'zoom-out' : 'default'))),
      background:verificationStyle[!!activityId&&activityId==node.id?'0':(!!node.setInfo&&!!node.setInfo.Taged?node.setInfo.Taged.toString():'4')] }"
    @click.stop="selectNode"
    @contextmenu.stop="showNodeContextMenu"
  >
    <a-icon type="close-circle" />
    {{ node.name }}
  </div>

  <div
    v-else-if="node.type == 'node'"
    :id="node.id"
    class="common-rectangle-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px',
    		cursor: currentTool.type == 'drag' ? 'move' : (currentTool.type == 'connection' ? 'crosshair' :
    																								(currentTool.type == 'zoom-in' ? 'zoom-in' :
    																								(currentTool.type == 'zoom-out' ? 'zoom-out' : 'default'))),
      background:verificationStyle[!!activityId&&activityId==node.id?'0':(!!node.setInfo&&!!node.setInfo.Taged?node.setInfo.Taged.toString():'4')] }"
    @click.stop="selectNode"
    @contextmenu.stop="showNodeContextMenu"
  >
    <a-icon type="setting" />
    {{ node.name }}
  </div>

  <div
    v-else-if="node.type == 'fork'"
    :id="node.id"
    class="common-rectangle-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px',
    		cursor: currentTool.type == 'drag' ? 'move' : (currentTool.type == 'connection' ? 'crosshair' :
    																								(currentTool.type == 'zoom-in' ? 'zoom-in' :
    																								(currentTool.type == 'zoom-out' ? 'zoom-out' : 'default'))),
      background:verificationStyle[!!activityId&&activityId==node.id?'0':(!!node.setInfo&&!!node.setInfo.Taged?node.setInfo.Taged.toString():'4')] }"
    @click.stop="selectNode"
    @contextmenu.stop="showNodeContextMenu"
  >
    <a-icon type="fullscreen" />
    {{ node.name }}
  </div>

  <div
    v-else-if="node.type == 'join'"
    :id="node.id"
    class="common-rectangle-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px',
    		cursor: currentTool.type == 'drag' ? 'move' : (currentTool.type == 'connection' ? 'crosshair' :
    																								(currentTool.type == 'zoom-in' ? 'zoom-in' :
    																								(currentTool.type == 'zoom-out' ? 'zoom-out' : 'default'))),
      background:verificationStyle[!!activityId&&activityId==node.id?'0':(!!node.setInfo&&!!node.setInfo.Taged?node.setInfo.Taged.toString():'4')] }"
    @click.stop="selectNode"
    @contextmenu.stop="showNodeContextMenu"
  >
    <a-icon type="fullscreen-exit" />
    {{ node.name }}
  </div>

  <div
    v-else-if="node.type == 'x-lane'"
    :id="node.id"
    class="common-x-lane-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px', height: node.height + 'px', width: node.width + 'px',
    		cursor: currentTool.type == 'zoom-in' ? 'zoom-in' : (currentTool.type == 'zoom-out' ? 'zoom-out' : 'default') }"
  >
    <div
      class="lane-text-div"
      :style="{ cursor: currentTool.type == 'drag' ? 'move' : 'default' }"
      @click.stop="selectNode"
      @contextmenu.stop="showNodeContextMenu"
    >
      <span class="lane-text">{{ node.name }}</span>
    </div>
  </div>

  <div
    v-else-if="node.type == 'y-lane'"
    :id="node.id"
    class="common-y-lane-node"
    :class="{ active: isActive() }"
    :style="{ top: node.y + 'px', left: node.x + 'px', height: node.height + 'px', width: node.width + 'px',
    		cursor: currentTool.type == 'zoom-in' ? 'zoom-in' : (currentTool.type == 'zoom-out' ? 'zoom-out' : 'default') }"
  >
    <div
      class="lane-text-div"
      :style="{ cursor: currentTool.type == 'drag' ? 'move' : 'default' }"
      @click.stop="selectNode"
      @contextmenu.stop="showNodeContextMenu"
    >
      <span class="lane-text">{{ node.name }}</span>
    </div>
  </div>

  <div v-else></div>
</template>


<script>
import jsplumb from 'jsplumb'
import { flowConfig } from '../config/args-config.js'
import $ from 'jquery'
import 'jquery-ui/ui/widgets/draggable'
import 'jquery-ui/ui/widgets/droppable'
import 'jquery-ui/ui/widgets/resizable'
import { ZFSN } from '../util/ZFSN.js'

export default {
  props: ['select', 'selectGroup', 'node', 'plumb', 'currentTool', 'activityId'],
  components: {
    jsplumb,
  },
  mounted() {
    this.registerNode()
  },
  data() {
    return {
      currentSelect: this.select,
      currentSelectGroup: this.selectGroup,
      verificationStyle: flowConfig.verificationStyle,
    }
  },
  methods: {
    registerNode() {
      const that = this
      that.plumb.draggable(that.node.id, {
        containment: 'parent',
        handle: function (e, el) {
          var possibles = el.parentNode.querySelectorAll(
            '.common-circle-node,.common-rectangle-node,.common-diamond-node,.lane-text-div'
          )
          for (var i = 0; i < possibles.length; i++) {
            if (possibles[i] === el || e.target.className == 'lane-text') return true
          }
          return false
        },
        grid: flowConfig.defaultStyle.alignGridPX,
        drag: function (e) {
          if (flowConfig.defaultStyle.isOpenAuxiliaryLine) {
            that.$emit('alignForLine', e)
          }
        },
        stop: function (e) {
          that.node.x = e.pos[0]
          that.node.y = e.pos[1]
          if (that.currentSelectGroup.length > 1) {
            that.$emit('updateNodePos')
          }
          that.$emit('hideAlignLine')
        },
      })

      if (that.node.type == 'x-lane' || that.node.type == 'y-lane') {
        $('#' + that.node.id).resizable({
          minHeight: 200,
          minWidth: 200,
          maxHeight: 2000,
          maxWidth: 2000,
          stop: function (event, ui) {
            that.node.height = ui.size.height
            that.node.width = ui.size.width
          },
        })
      }
      that.currentSelect = that.node
      that.currentSelectGroup = []
    },
    selectNode() {
      const that = this
      that.currentSelect = this.node
      that.$emit('isMultiple', (flag) => {
        if (!flag) {
          that.currentSelectGroup = []
        } else {
          let f = that.currentSelectGroup.filter((s) => s.id == that.node.id)
          if (f.length <= 0) {
            that.plumb.addToDragSelection(that.node.id)
            that.currentSelectGroup.push(that.node)
          }
        }
      })
    },
    showNodeContextMenu(e) {
      this.$emit('showNodeContextMenu', e)
      this.selectNode()
    },
    isActive() {
      const that = this
      if (that.currentSelect.id == that.node.id) return true
      let f = that.currentSelectGroup.filter((n) => n.id == that.node.id)
      if (f.length > 0) return true
      return false
    },
  },
  watch: {
    select(val) {
      this.currentSelect = val
    },
    currentSelect: {
      handler(val) {
        this.$emit('update:select', val)
      },
      deep: true,
    },
    selectGroup(val) {
      this.currentSelectGroup = val
    },
    currentSelectGroup: {
      handler(val) {
        this.$emit('update:selectGroup', val)
      },
      deep: true,
    },
  },
}
</script>

<style lang="less" scoped>
@import '../style/flow-node.less';
</style>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249

modules文件下Settingmodal.vue文件代码如下

<template>
	<div>
		<a-drawer
			title="设置"
			placement="left"
			:width="600"
			:visible="settingVisible"
			@close="close">

			<a-form
				:form="settingForm"
				layout="horizontal">

				<a-divider orientation="left">画布</a-divider>
				<a-form-item label="缩小比例" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-slider
						:min="0.05"
						:max="0.5"
						:step="0.05"
						:tipFormatter="formatterContainerOnceNarrow"
						v-decorator="['containerOnceNarrow', {}]"
						@afterChange="setContainerOnceNarrow" />
				</a-form-item>
				<a-form-item label="放大比例" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-slider
						:min="0.05"
						:max="0.5"
						:step="0.05"
						:tipFormatter="formatterContainerOnceEnlarge"
						v-decorator="['containerOnceEnlarge', {}]"
						@afterChange="setContainerOnceEnlarge" />
				</a-form-item>

				<a-divider orientation="left">连线</a-divider>
				<a-form-item label="类型" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-select v-decorator="['linkType', {}]" @change="setFlowType">
						<a-select-option value="Bezier">贝塞尔曲线</a-select-option>
						<a-select-option value="Straight">直线</a-select-option>
						<a-select-option value="Flowchart">流程图线</a-select-option>
						<a-select-option value="StateMachine">状态线</a-select-option>
					</a-select>
				</a-form-item>
				<a-form-item label="颜色" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<colorPicker v-model="linkColor" @change="setLinkColor" />
				</a-form-item>
				<a-form-item label="粗细" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-slider
						:min="1"
						:max="10"
						v-decorator="['linkThickness', {}]"
						@afterChange="setStrokeWidth" />
				</a-form-item>

				<a-divider orientation="left">默认样式</a-divider>
				<a-form-item label="辅助线" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-switch
						:checked="isOpenAuxiliaryLine"
						v-decorator="['isOpenAuxiliaryLine', {}]"
						checkedChildren="开"
						unCheckedChildren="关"
						@change='toggleOpenAuxiliaryLine'/>
				</a-form-item>
				<a-form-item label="自动对齐水平间距" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-slider
						:min="10"
						:max="800"
						:step="5"
						v-decorator="['alignLevelDistance', {}]"
						@afterChange="setAlignLevelDistance" />
				</a-form-item>
				<a-form-item label="自动对齐垂直间距" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-slider
						:min="10"
						:max="800"
						:step="5"
						v-decorator="['alignVerticalDistance', {}]"
						@afterChange="setAlignVerticalDistance" />
				</a-form-item>
				<a-form-item label="微移距离" :label-col="formItemLayout.labelCol" :wrapper-col="formItemLayout.wrapperCol">
					<a-slider
						:min="1"
						v-decorator="['movePx', {}]"
						@afterChange="setMovePx" />
				</a-form-item>
			</a-form>
		</a-drawer>
	</div>
</template>

<script>
	import { flowConfig } from '../config/args-config.js'

	export default {
		data () {
			return {
				settingVisible: false,
				formItemLayout: {
					labelCol: { span: 6 },
					wrapperCol: { span: 15 }
				},
				initFlag: false,
				settingForm: this.$form.createForm(this),
				isOpenAuxiliaryLine: flowConfig.defaultStyle.isOpenAuxiliaryLine,
				linkColor: flowConfig.jsPlumbInsConfig.PaintStyle.stroke
			}
		},
		methods: {
			init () {
				const that = this;
				that.$nextTick(() => {
					that.settingForm.setFieldsValue({
						movePx: flowConfig.defaultStyle.movePx,
						linkType: flowConfig.jsPlumbInsConfig.Connector[0],
						linkThickness: flowConfig.jsPlumbInsConfig.PaintStyle.strokeWidth,
						alignLevelDistance: flowConfig.defaultStyle.alignSpacing.level,
						alignVerticalDistance: flowConfig.defaultStyle.alignSpacing.vertical,
						containerOnceNarrow: flowConfig.defaultStyle.containerScale.onceNarrow,
						containerOnceEnlarge: flowConfig.defaultStyle.containerScale.onceEnlarge
					});
				});
			},
			open () {
				this.settingVisible = true;
				if (!this.initFlag) {
					this.init();
					this.initFlag = true;
				}
			},
			close () {
				this.settingVisible = false;
			},
			setFlowType (v) {
				flowConfig.jsPlumbInsConfig.Connector[0] = v;
			},
			toggleOpenAuxiliaryLine (flag) {
				this.isOpenAuxiliaryLine = flag;
				flowConfig.defaultStyle.isOpenAuxiliaryLine = flag;
			},
			setMovePx (v) {
				flowConfig.defaultStyle.movePx = v;
			},
			setLinkColor (v) {
				this.linkColor = v;
				flowConfig.jsPlumbInsConfig.PaintStyle.stroke = v;
			},
			setStrokeWidth (v) {
				flowConfig.jsPlumbInsConfig.PaintStyle.strokeWidth = v;
			},
			setAlignLevelDistance (v) {
				flowConfig.defaultStyle.alignSpacing.level = v;
			},
			setAlignVerticalDistance (v) {
				flowConfig.defaultStyle.alignSpacing.vertical = v;
			},
			formatterContainerOnceNarrow (v) {
				return `${v*100}%`;
			},
			setContainerOnceNarrow (v) {
				flowConfig.defaultStyle.containerScale.onceNarrow = v;
			},
			formatterContainerOnceEnlarge (v) {
				return `${v*100}%`;
			},
			setContainerOnceEnlarge (v) {
				flowConfig.defaultStyle.containerScale.onceEnlarge = v;
			}
		}
	}
</script>

<style>
	.m-colorPicker .box {
		z-index: 9999 !important;
		width: 220px !important;
	}

	.ant-divider-horizontal.ant-divider-with-text, .ant-divider-horizontal.ant-divider-with-text-left, .ant-divider-horizontal.ant-divider-with-text-right {
		font-weight: 800;
		margin: 24px 0 4px;
	}
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181

modules文件下ShortcutModal.vue文件代码如下

<template>
	<a-modal
		title="快捷键大全"
		width="50%"
		:visible="modalVisible"
		okText="确认"
		cancelText="取消"
		@ok="saveSetting"
		@cancel="cancel">
		<a-table
			rowKey="code"
			:columns="columns"
			:dataSource="dataSource">
		</a-table>
	</a-modal>
</template>

<script>
	import { flowConfig } from '../config/args-config.js'

	export default {
		data () {
			return {
				modalVisible: false,
				columns: [
					{
						title: '功能',
						align: 'center',
						key: 'shortcutName',
						dataIndex: 'shortcutName',
						width: '50%'
					},
					{
						title: '快捷键',
						align: 'center',
						key: 'codeName',
						dataIndex: 'codeName',
						width: '50%'
					}
				],
				dataSource: []
			}
		},
		methods: {
			open () {
				const that = this;

				that.modalVisible = true;
				let obj = Object.assign({}, flowConfig.shortcut);
				for (let k in obj) {
					that.dataSource.push(obj[k]);
				}
			},
			close () {
				this.dataSource = [];
				this.modalVisible = false;
			},
			saveSetting () {
				this.close();
			},
			cancel () {
				this.close();
			}
		}
	}
</script>

<style>
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

modules文件下TestModal.vue文件代码如下

<template>
	<div>
		<a-drawer
			title="JSON"
			placement="right"
			:width="600"
			:visible="testVisible"
			@close="onClose">

			<div>当前的flowData:</div>
			<json-view
				:value="flowData"
				:expand-depth=3
				boxed
				copyable/>

			<div style="margin-top: 12px;">暂存:</div>
			<a-textarea :autosize="{ minRows: 10, maxRows: 100 }" :value="flowDataJson" @change="editFlowDataJson" />

			<a-divider />
			<a-button @click="onLoad">加载</a-button>
			<a-button @click="tempSave" :style="{ marginRight: '8px' }" type="primary">暂存</a-button>
		</a-drawer>
	</div>
</template>

<script>
	import JsonView from 'vue-json-viewer'
	import { flowConfig } from '../config/args-config.js'

	export default {
		components: {
			JsonView
		},
		data () {
			return {
				testVisible: false,
				flowData: null,
				flowDataJson: ''
			}
		},
		methods: {
			onClose () {
				this.testVisible = false;
			},
			editFlowDataJson (e) {
				this.flowDataJson = e.target.value;
			},
			tempSave () {
				let tempObj = Object.assign({}, this.flowData);
				tempObj.status = flowConfig.flowStatus.SAVE;
				this.flowDataJson = JSON.stringify(tempObj);
			},
			clearData () {
				this.$emit('clear123',this.flowDataJson);
			},
			onLoad () {
				this.clearData();
				setTimeout(() => {
					this.$emit('loadFlow', this.flowDataJson);
					this.onClose();
				}, 100)
			}
		}
	}
</script>

<style>
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69

config文件下args-config.js文件代码如下

export let flowConfig = {
	jsPlumbInsConfig: {
		Connector: [
			"Flowchart",
			{
				gap: 5,
				cornerRadius: 8,
				alwaysRespectStubs: true
			}
		],
		ConnectionOverlays: [
			[
				'Arrow',
				{
					width: 10,
					length: 10,
					location: 1
				}
			]
		],
		PaintStyle: {
			stroke: "#2a2929",
			strokeWidth: 2
		},
		HoverPaintStyle: {
			stroke: "#409EFF",
			strokeWidth: 3
		},
		EndpointStyle: {
			fill: "#456",
			stroke: "#2a2929",
			strokeWidth: 1,
			radius: 3
		},
		EndpointHoverStyle: {
			fill: "pink"
		}
	},
	jsPlumbConfig: {
		anchor: {
			default: ["Bottom", "Right", "Top", "Left"]
		},
		conn: {
			isDetachable: false
		},
		makeSourceConfig: {
			filter: "a",
            filterExclude: true,
            maxConnections: -1,
            endpoint: [ "Dot", { radius: 7 } ],
            anchor: ["Bottom", "Right", "Top", "Left"]
		},
		makeTargetConfig: {
			filter: "a",
            filterExclude: true,
            maxConnections: -1,
            endpoint: [ "Dot", { radius: 7 } ],
            anchor: ["Bottom", "Right", "Top", "Left"]
		}
	},
	defaultStyle: {
		dragOpacity: 0.7,
		alignGridPX: [5, 5],
		alignSpacing: {
			level: 100,
			vertical: 100
		},
		alignDuration: 300,
		containerScale: {
			init: 1,
			min: 0.5,
			max: 3,
			onceNarrow: 0.1,
			onceEnlarge: 0.1
		},
		isOpenAuxiliaryLine: true,
		showAuxiliaryLineDistance: 20,
		movePx: 5,
		photoBlankDistance: 200
	},
	// ID的生成类型。1.uuid uuid 2.time_stamp 时间戳 3.sequence 序列 4.time_stamp_and_sequence 时间戳加序列 5.custom 自定义
	idType: 'uuid',
	flowStatus: {
		CREATE: '0',
		SAVE: '1',
		MODIFY: '2',
		LOADING: '3'
	},
	shortcut: {
		multiple: {
			code: 17,
			codeName: 'CTRL',
			shortcutName: '多选',
		},
		dragContainer: {
			code: 32,
			codeName: 'SPACE',
			shortcutName: '画布拖拽',
		},
		scaleContainer: {
			code: 18,
			codeName: 'ALT(firefox下为SHIFT)',
			shortcutName: '画布缩放',
		},
		dragTool: {
			code: 68,
			codeName: 'D',
			shortcutName: '拖拽工具',
		},
		connTool: {
			code: 76,
			codeName: 'L',
			shortcutName: '连线工具',
		},
		zoomInTool: {
			code: 190,
			codeName: '<',
			shortcutName: '放大工具',
		},
		zoomOutTool: {
			code: 188,
			codeName: '>',
			shortcutName: '缩小工具',
		},
		leftMove: {
			code: 37,
			codeName: '←',
			shortcutName: '左移',
		},
		upMove: {
			code: 38,
			codeName: '↑',
			shortcutName: '上移',
		},
		rightMove: {
			code: 39,
			codeName: '→',
			shortcutName: '右移',
		},
		downMove: {
			code: 40,
			codeName: '↓',
			shortcutName: '下移',
		},
		testModal: {
			code: 84,
			codeName: 'CTRL+ALT+P',
			shortcutName: '打开测试页面',
		}
	},
	contextMenu: {
		container: {
			menuName: 'flow-menu',
			axis: {
				x: null,
				y: null
			},
			menulists: [
				// {
				// 	fnHandler: 'flowInfo',
				// 	icoName: 'edit',
				// 	btnName: '流程图信息'
				// },
				{
					fnHandler: 'paste',
					icoName: 'edit',
					btnName: '粘贴'
		        },
		        {
		        	fnHandler: 'selectAll',
					icoName: 'edit',
					btnName: '全选'
		        },
		        // {
		        // 	fnHandler: 'saveFlow',
				// 	icoName: 'edit',
				// 	btnName: '保存流程'
		        // },
		        // {
		        // 	iconName: 'edit',
		        // 	fnHandler: 'addRemark',
		        // 	btnName: '添加备注'
		        // },
		        {
					icoName: 'edit',
					btnName: '对齐方式',
					children: [
						{
							icoName: 'edit',
	                        fnHandler: 'verticaLeft',
	                        btnName: '垂直左对齐'
						},
						{
							icoName: 'edit',
	                        fnHandler: 'verticalCenter',
	                        btnName: '垂直居中'
						},
						{
							icoName: 'edit',
	                        fnHandler: 'verticalRight',
	                        btnName: '垂直右对齐'
						},
						{
							icoName: 'edit',
	                        fnHandler: 'levelUp',
	                        btnName: '水平上对齐'
						},
						{
							icoName: 'edit',
	                        fnHandler: 'levelCenter',
	                        btnName: '水平居中'
						},
						{
							icoName: 'edit',
	                        fnHandler: 'levelDown',
	                        btnName: '水平下对齐'
						}
					]
		        }
			]
		},
		node: {
			menuName: 'node-menu',
			axis: {
				x: null,
				y: null
			},
			menulists: [
				{
					fnHandler: 'copyNode',
					icoName: 'edit',
					btnName: '复制节点'
				},
				{
					fnHandler: 'deleteNode',
					icoName: 'edit',
					btnName: '删除节点'
				}
			]
		},
		link: {
			menuName: 'link-menu',
			axis: {
				x: null,
				y: null
			},
			menulists: [
				{
					fnHandler: 'deleteLink',
					icoName: 'edit',
					btnName: '删除连线'
				}
			]
		}
	},
	verificationStyle:{0:"#5bc0de",//正在处理
								1:"#7ccb7c",//已完成
								2:"#d9534f",//不同意
								3:"#faad14",//驳回或者撤回
								4:"#f4f6fc"},//还未处理
	flowLineAdditions:[{id:'CreatedUserId',name:'申请人'},
						{id:'CreatedOrgId',name:'所属组织'}]//连线条件额外参数
};

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264

config文件下basic-node-config.js文件代码如下

export const tools = [
	{
		type: 'drag',
		icon: 'drag',
		name: '拖拽'
	},
	{
		type: 'connection',
		icon: 'fork',
		name: '连线'
	},
	{
		type: 'zoom-in',
		icon: 'zoom-in',
		name: '放大'
	},
	{
		type: 'zoom-out',
		icon: 'zoom-out',
		name: '缩小'
	}
];

export const commonNodes = [
	{
		type: 'start round mix',
		name: '开始',
		icon: 'play-circle'
	},
	{
		type: 'end round',
		name: '结束',
		icon: 'close-circle'
	},
	{
		type: 'node',
		name: '任务节点',
		icon: 'setting'
	},
	{
		type: 'fork',
		name: '会签开始',
		icon: 'fullscreen'
	},
	{
		type: 'join',
		name: '会签结束',
		icon: 'fullscreen-exit'
	}
];

export const laneNodes = [
	{
		type: 'x-lane',
		name: '横向泳道',
		icon: 'column-width'
	},
	{
		type: 'y-lane',
		name: '纵向泳道',
		icon: 'column-height'
	}
];

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

util文件下ZFSN.js文件代码如下

import { flowConfig } from '../config/args-config.js'

export let ZFSN = {
	seqNo: 1,
	consoleLog: function(strArr) {
		let log = '';
		for (let i = 0, len = strArr.length; i < len; i++) {
			log += strArr[i] + '\n';
		}
		//console.log('%c' + log, 'color: red; font-weight: bold;');
	},
	getId: function() {
		let idType = flowConfig.idType;
		if (typeof idType == 'string') {
			if (idType == 'uuid') {
				return this.getUUID();
			} else if (idType == 'time_stamp') {
				return this.getTimeStamp();
			}
		} else if (idType instanceof Array) {
			if (idType[0] == 'time_stamp_and_sequence') {
				return this.getSequence(idType[1]);
			} else if (idType[0] == 'time_stamp_and_sequence') {
				return this.getTimeStampAndSequence(idType[1]);
			} else if (idType[0] == 'custom') {
				return idType[1]();
			}
		}
	},
	getUUID: function() {
		let s = [];
		let hexDigits = "0123456789abcdef";
		for(let i = 0; i < 36; i++) {
			s[i] = hexDigits.substr(Math.floor(Math.random() * 0x10), 1);
		}
		s[14] = "4";
		s[19] = hexDigits.substr((s[19] & 0x3) | 0x8, 1);
		s[8] = s[13] = s[18] = s[23] = "-";

		let uuid = s.join("");
		return uuid.replace(/-/g, '');
	},
	getTimeStamp: function() {
		return new Date().getTime();
	},
	getSequence: function(seqNoLength) {
		let zeroStr = new Array(seqNoLength).fill('0').join('');
		return (zeroStr + (this.seqNo++)).slice(-seqNoLength);
	},
	getTimeStampAndSequence: function(seqNoLength) {
		return this.getTimeStamp() + this.getSequence(seqNoLength);
	},
	add: function(a, b) {
		let c, d, e;
		try {
			c = a.toString().split(".")[1].length;
		} catch (f) {
			c = 0;
		}
		try {
			d = b.toString().split(".")[1].length;
		} catch (f) {
			d = 0;
		}
		return e = Math.pow(10, Math.max(c, d)), (this.mul(a, e) + this.mul(b, e)) / e;
	},
	sub: function(a, b) {
		let c, d, e;
		try {
			c = a.toString().split(".")[1].length;
		} catch (f) {
			c = 0;
		}
		try {
			d = b.toString().split(".")[1].length;
		} catch (f) {
			d = 0;
		}
		return e = Math.pow(10, Math.max(c, d)), (this.mul(a, e) - this.mul(b, e)) / e;
	},
	mul: function(a, b) {
		let c = 0, d = a.toString(), e = b.toString();
		try {
			c += d.split(".")[1].length;
		} catch (f) {}
		try {
			c += e.split(".")[1].length;
		} catch (f) {}
		return Number(d.replace(".", "")) * Number(e.replace(".", "")) / Math.pow(10, c);
	},
	div: function(a, b) {
		let c, d, e = 0, f = 0;
		try {
			e = a.toString().split(".")[1].length;
		} catch (g) {}
		try {
			f = b.toString().split(".")[1].length;
		} catch (g) {}
		return c = Number(a.toString().replace(".", "")), d = Number(b.toString().replace(".", "")), this.mul(c / d, Math.pow(10, f - e));
	}
};

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102

style文件下flow-area.less文件代码如下

@active-color: #409EFF;

.btn-wrapper-simple {
    height: 24px !important;
    line-height: 24px !important;
}
.vue-contextmenu-listWrapper {
    padding-left: 1px !important;
}
.child-ul-wrapper {
    padding-left: 1px !important;
}

.flow-container {
    width: 1000%;
    height: 1000%;
    position: relative;
    transition: transform 0.5s ease 0s,transform-origin 0.5s ease 0s;

    &.grid {
        background-image: -webkit-linear-gradient(90deg, rgba(235, 235, 235, 1) 5%, rgba(0, 0, 0, 0) 5%);
        background-image: -moz-linear-gradient(90deg, rgba(235, 235, 235, 1) 5%, rgba(0, 0, 0, 0) 5%);
        background-image: -o-linear-gradient(90deg, rgba(235, 235, 235, 1) 5%, rgba(0, 0, 0, 0) 5%);
        background-image: -webkit-gradient(linear, 0 100%, 0 0, color-stop(0.05, rgba(235, 235, 235, 1)), color-stop(0.05, rgba(0, 0, 0, 0)));
        background-image: linear-gradient(90deg, rgba(235, 235, 235, 1) 5%, rgba(0, 0, 0, 0) 5%),linear-gradient(rgba(235, 235, 235, 1) 5%, rgba(0, 0, 0, 0) 5%);
        background-size: 1rem 1rem;
    }

    &.zoomIn {
        cursor: zoom-in;
    }
    &.zoomOut {
        cursor: zoom-out;
    }
    &.canScale {
        cursor: url(../assets/search.png), default;
    }
    &.canDrag {
        cursor: grab;
    }
    &.canMultiple {
        cursor: url(../assets/multip-pointer.png), default;
    }
}

.rectangle-multiple {
    position: absolute;
    border: 1px dashed #31676f;
    background-color: #0cceea29;
}

.flow-container-active {
    background-color: #e4e4e438;
    cursor: crosshair;
}

.auxiliary-line-x {
    position: absolute;
    border: 0.5px solid @active-color;
    width: 100%;
    z-index: 9999;
}
.auxiliary-line-y {
    position: absolute;
    border: 0.5px solid @active-color;
    height: 100%;
    z-index: 9999;
}

.link-active {
    outline: 2px dashed @active-color;
}

.container-scale {
    position: absolute;
    top: 0;
    left: 5px;
}

.mouse-position {
    position: absolute;
    bottom: 0;
    right: 5px;
}

.common-remarks {
    width: 100px;
    height: 150px;
    position: absolute;
    background-color: #ffffaa;
}
::v-deep.customMultiMenuClass {
  .context-menu-list{
    .btn-wrapper-simple{
      height: auto;
    }
    .has-child{
      .float-status-2{
        padding-left: 0;
      }
    }
  }
  // .float-status-2 {
  //   padding-left: 0;
  //   .btn-wrapper-simple {
  //     height: auto;
  //   }
  // }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

style文件下flow-designer.less文件代码如下

@primary-color: #409EFF;

.container {
    border: 2px solid #e4e7ed;
    height: 100%;

    moz-user-select: -moz-none;
    -moz-user-select: none;
    -o-user-select:none;
    -khtml-user-select:none;
    -webkit-user-select:none;
    -ms-user-select:none;
    user-select:none;
}

.select-area {
    border-right: 1px solid #e4e7ed;
}

.header-option {
    background: white;
    height: 36px;
    line-height: 36px;
    border-bottom: 2px solid #e4e7ed;
    text-align: right;
}

.header-option-button {
    border: 0;
    margin-left: 8px;
}

.flowContent {
    background: #fafafa;
    height: 100%;
    border: 2px dashed rgba(170,170,170,0.7);
}

.ant-layout-footer {
    padding: 4px 8px;
}
.foot {
    height: auto;
    text-align: center;
}

.attr-area {
    border-left: 1px solid #e4e7ed;
    min-height:350px;
}

.tag {
    margin: 6px;
}

.tool-item {
    background: #f4f6fc;
    height: 32px;
    line-height: 32px;
    margin: 5px;
    padding-left: 8px;
    text-align: center;
    cursor: pointer;

    &:hover{
        background: #d2d3d6;
    }

    &.active {
        background: black;
    }
}

.node-item {
    background: #f4f6fc;
    height: 32px;
    line-height: 32px;
    margin: 5px;
    padding-left: 8px;
    text-align: left;
    cursor: move;
    min-width: 80px;

    &:hover{
        color: @primary-color;
        outline: 1px dashed @primary-color;
    }
}

.ant-list-grid .ant-list-item {
    margin-bottom: 8px;
}

.linkLabel {
    background-color: white;
    padding: 1px;
    border: 1px solid #346789;
    border-radius: 5px;
    opacity: 0.8;
    z-index: 3;
}
::v-deep.customMenuClass {
  padding-left: 0;

  .context-menu-list {
    .btn-wrapper-simple {
      height: auto;
    }
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

style文件下flow-node.less文件代码如下

@common-node-bg: #f4f6fc;
@common-node-bg-hover: #f4f6fcb0;
@common-node-active: #409EFF;

.common-circle-node {
    position: absolute;
    height: 50px;
    width: 100px;
    line-height: 50px;
    text-align: center;
    border: 1px solid #777;
    border-radius: 100px;
    background-color: @common-node-bg;
    white-space: nowrap;
    &:hover{
        background-color: @common-node-bg-hover;
        z-index: 2;
    }

    &.active {
        outline: 2px dashed @common-node-active;
        outline-offset: 0px;
    }
}

.common-rectangle-node {
    position: absolute;
    height: 50px;
    width: 120px;
    line-height: 50px;
    text-align: center;
    border: 1px solid #777;
    border-radius: 5px;
    background-color: @common-node-bg;
    white-space: nowrap;

    &:hover {
        background-color: @common-node-bg-hover;
        z-index: 2;
    }

    &.active {
        outline: 2px dashed @common-node-active;
        outline-offset: 0px;
    }
}

.common-diamond-node {
    position: absolute;
    height: 50px;
    width: 50px;
    line-height: 50px;
    text-align: center;
    border: 1px solid #777;
    border-radius: 3px;
    background-color: @common-node-bg;
    transform: rotate(45deg);
    white-space: nowrap;

    &:before {
        position: absolute;
        content: '网关';
        transform: rotate(-45deg);
        top: 0;
        left: 0;
        right: 0;
        bottom: 0;
    }

    &:hover {
        background-color: @common-node-bg-hover;
        z-index: 2;
    }

    &.active {
        outline: 2px dashed @common-node-active;
        outline-offset: 0px;
    }
}

.common-x-lane-node {
    position: absolute;
    text-align: center;
    border: 1px solid #777;
    border-radius: 2px;
    z-index: -1;

    &.active {
        outline: 2px dashed @common-node-active;
        outline-offset: 0px;
        .ui-resizable-se{
            z-index: 90;
            width: 8px;
            height: 8px;
            border: 1px;
            right: -5px;
            bottom: -5px;
            cursor: se-resize;
            position:absolute;
        }
        .ui-resizable-s{
            z-index: 90;
            width: 100%;
            height: 15px;
            border: 1px;
            right: 5px;
            bottom: -5px;
            cursor: s-resize;
            position:absolute;
        }
        .ui-resizable-e{
            z-index: 90;
            width: 15px;
            height: 100%;
            border: 1px;
            right: -5px;
            bottom: 5px;
            cursor: e-resize;
            position:absolute;
        }
    }

    .lane-text-div {
        width: 18px;
        height: 100%;
        position: absolute;
        display: table;
        border-right: 1px solid #777;
        background-color: @common-node-bg;

        &:hover {
            z-index: 2;
        }

        .lane-text {
            word-wrap: break-word;
            display: table-cell;
            vertical-align: middle;
            font-size: 0.8em;
        }
    }
}

.common-y-lane-node {
    position: absolute;
    text-align: center;
    border: 1px solid #777;
    border-radius: 2px;
    z-index: -1;

    &.active {
        outline: 2px dashed @common-node-active;
        outline-offset: 0px;
        .ui-resizable-se{
            z-index: 90;
            width: 8px;
            height: 8px;
            border: 1px;
            right: -5px;
            bottom: -5px;
            cursor: se-resize;
            position:absolute;
        }
        .ui-resizable-s{
            z-index: 90;
            width: 100%;
            height: 15px;
            border: 1px;
            right: 5px;
            bottom: -5px;
            cursor: s-resize;
            position:absolute;
        }
        .ui-resizable-e{
            z-index: 90;
            width: 15px;
            height: 100%;
            border: 1px;
            right: -5px;
            bottom: 5px;
            cursor: e-resize;
            position:absolute;
        }
    }

    .lane-text-div {
        width: 100%;
        height: 18px;
        position: absolute;
        display: table;
        border-bottom: 1px solid #777;
        background-color: @common-node-bg;

        &:hover {
            z-index: 2;
        }

        .lane-text {
            word-wrap: break-word;
            display: table-cell;
            font-size: 0.8em;
        }
    }
}

.node-icon {
    position: absolute;
    top: 3px;
    left: 3px;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
