• 【Java编程系列】gateway限流实践时发生的问题和解决方案

    前期回顾：

    【Java编程系列】Springcloud-gateway自带限流方案实践篇

    1、实践中发生的问题

    主要有以下几个问题：

    1、限流返回的响应数据无法自定义

    (LogFormatUtils.java:91) - [7b93af46-20] Completed 429 TOO_MANY_REQUESTS

    返回后显示的情况如下：


    2、默认的限流器（RequestRateLimiterGatewayFilterFactory）会发生异常

    有一部分情况会出现：Error [java.lang.UnsupportedOperationException]

    详细信息如下：

    1. 2023-04-25 12:27:10.628 [NGIEGzOnuguYdozn] ERROR (HttpWebHandlerAdapter.java:295) - [7533b14d-23] Error [java.lang.UnsupportedOperationException] for HTTP POST "***/activity/interaction", but ServerHttpResponse already committed (429 TOO_MANY_REQUESTS)
    2. 2023-04-25 12:27:10.641 [NGIEGzOnuguYdozn] ERROR (Loggers.java:319) - [id: 0x7533b14d, L:/0:0:0:0:0:0:0:1:18085 - R:/0:0:0:0:0:0:0:1:48745] Error starting response. Replying error status
    3. java.lang.UnsupportedOperationException: null
    4. 	at org.springframework.http.ReadOnlyHttpHeaders.add(ReadOnlyHttpHeaders.java:91)
    5. 	Suppressed: reactor.core.publisher.FluxOnAssembly$OnAssemblyException:
    6. Error has been observed at the following site(s):
    7. 	|_ checkpoint ⇢ springfox.boot.starter.autoconfigure.SwaggerUiWebFluxConfiguration$CustomWebFilter [DefaultWebFilterChain]
    8. 	|_ checkpoint ⇢ org.springframework.cloud.gateway.filter.WeightCalculatorWebFilter [DefaultWebFilterChain]
    9. 	|_ checkpoint ⇢ HTTP POST "/***/***/interact" [Exception***Handler]
    10. Stack trace:
    11. 		at org.springframework.http.ReadOnlyHttpHeaders.add(ReadOnlyHttpHeaders.java:91)
    12. 		at org.springframework.cloud.gateway.filter.factory.RequestRateLimiterGatewayFilterFactory.lambda$null$0(RequestRateLimiterGatewayFilterFactory.java:120)
    13. 		at reactor.core.publisher.MonoFlatMap$FlatMapMain.onNext(MonoFlatMap.java:118)
    14. 		at reactor.core.publisher.FluxMapFuseable$MapFuseableSubscriber.onNext(FluxMapFuseable.java:121)
    15. 		at reactor.core.publisher.Operators$MonoSubscriber.complete(Operators.java:1705)
    16. 		at reactor.core.publisher.MonoReduceSeed$ReduceSeedSubscriber.onComplete(MonoReduceSeed.java:156)
    17. 		at reactor.core.publisher.Operators$MultiSubscriptionSubscriber.onComplete(Operators.java:1939)
    18. 		at reactor.core.publisher.FluxUsingWhen$UsingWhenSubscriber.deferredComplete(FluxUsingWhen.java:402)
    19. 		at reactor.core.publisher.FluxUsingWhen$CommitInner.onComplete(FluxUsingWhen.java:536)
    20. 		at reactor.core.publisher.MonoIgnoreElements$IgnoreElementsSubscriber.onComplete(MonoIgnoreElements.java:81)
    21. 		at reactor.core.publisher.FluxFlatMap$FlatMapMain.checkTerminated(FluxFlatMap.java:803)
    22. 		at reactor.core.publisher.FluxFlatMap$FlatMapMain.drainLoop(FluxFlatMap.java:589)
    23. 		at reactor.core.publisher.FluxFlatMap$FlatMapMain.drain(FluxFlatMap.java:569)
    24. 		at reactor.core.publisher.FluxFlatMap$FlatMapMain.onComplete(FluxFlatMap.java:455)
    25. 		at reactor.core.publisher.FluxArray$ArraySubscription.slowPath(FluxArray.java:137)
    26. 		at reactor.core.publisher.FluxArray$ArraySubscription.request(FluxArray.java:99)
    27. 		at reactor.core.publisher.FluxFlatMap$FlatMapMain.onSubscribe(FluxFlatMap.java:363)
    28. 		at reactor.core.publisher.FluxMerge.subscribe(FluxMerge.java:69)
    29. 		at reactor.core.publisher.Mono.subscribe(Mono.java:4110)
    30. 		at reactor.core.publisher.FluxUsingWhen$UsingWhenSubscriber.onComplete(FluxUsingWhen.java:394)
    31. 		at reactor.core.publisher.FluxMap$MapSubscriber.onComplete(FluxMap.java:136)
    32. 		at reactor.core.publisher.Operators$MultiSubscriptionSubscriber.onComplete(Operators.java:1939)
    33. 		at reactor.core.publisher.FluxConcatMap$ConcatMapImmediate.drain(FluxConcatMap.java:359)
    34. 		at reactor.core.publisher.FluxConcatMap$ConcatMapImmediate.onComplete(FluxConcatMap.java:268)
    35. 		at reactor.core.publisher.Operators$MultiSubscriptionSubscriber.onComplete(Operators.java:1939)
    36. 		at reactor.core.publisher.MonoFlatMapMany$FlatMapManyInner.onComplete(MonoFlatMapMany.java:252)
    37. 		at io.lettuce.core.RedisPublisher$ImmediateSubscriber.onComplete(RedisPublisher.java:895)
    38. 		at io.lettuce.core.RedisPublisher$State.onAllDataRead(RedisPublisher.java:673)
    39. 		at io.lettuce.core.RedisPublisher$State$3.read(RedisPublisher.java:587)
    40. 		at io.lettuce.core.RedisPublisher$State$3.onDataAvailable(RedisPublisher.java:544)
    41. 		at io.lettuce.core.RedisPublisher$RedisSubscription.onDataAvailable(RedisPublisher.java:313)
    42. 		at io.lettuce.core.RedisPublisher$RedisSubscription.onAllDataRead(RedisPublisher.java:328)
    43. 		at io.lettuce.core.RedisPublisher$SubscriptionCommand.complete(RedisPublisher.java:758)
    44. 		at io.lettuce.core.protocol.CommandHandler.complete(CommandHandler.java:654)
    45. 		at io.lettuce.core.protocol.CommandHandler.decode(CommandHandler.java:614)
    46. 		at io.lettuce.core.protocol.CommandHandler.channelRead(CommandHandler.java:565)
    47. 		at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:377)
    48. 		at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:363)
    49. 		at io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:355)
    50. 		at io.netty.channel.DefaultChannelPipeline$HeadContext.channelRead(DefaultChannelPipeline.java:1410)
    51. 		at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:377)
    52. 		at io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:363)
    53. 		at io.netty.channel.DefaultChannelPipeline.fireChannelRead(DefaultChannelPipeline.java:919)
    54. 		at io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:163)
    55. 		at io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:714)
    56. 		at io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:650)
    57. 		at io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:576)
    58. 		at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:493)
    59. 		at io.netty.util.concurrent.SingleThreadEventExecutor$4.run(SingleThreadEventExecutor.java:989)
    60. 		at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
    61. 		at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
    62. 		at java.lang.Thread.run(Thread.java:748)

    3、在nacos配置gateway的限流配置不生效问题

    在nacos的配置中，配置gateway的限流配置，如下：

    1. - id: ***service
    2.   uri: 'lb://***service'
    3.   order: 0
    4.   filters: []
    5.   predicates:
    6.     - args:
    7.         pattern: /xxx/**
    8.               name: Path
    9. - id: ***service-limiter
    10.   uri: lb://***service
    11.   order: 0
    12.   predicates:
    13.     - Path= /xxx/activity/**
    14.   filters:
    15.     - name: GatewayRequestRateLimiter
    16.       args:
    17.         key-resolver: "#{@remoteAddrKeyResolver}"
    18.         redis-rate-limiter.replenishRate: 20 # 令牌桶填充的速率 秒为单位
    19.         redis-rate-limiter.burstCapacity: 20 # 令牌桶总容量
    20.         redis-rate-limiter.requestedTokens: 1 # 每次请求获取的令牌数

    你会发现这样配置是不会生效的~~~，测试时都有点不理解。。。

    2、解决方案

    首先，我们分析一下2种情况导致的原因，

    第一个问题，因为源码的过滤器RequestRateLimiterGatewayFilterFactory中，会将限流拦截的请求的http status code设置为429，但是具体的内容格式却不是JSON格式，导致我们看到的响应结果如上图所示。

    第二个问题，通过报错内容提示，我们可以找到源码的120行：

    at org.springframework.cloud.gateway.filter.factory.RequestRateLimiterGatewayFilterFactory.

    lambda$null$0(RequestRateLimiterGatewayFilterFactory.java:120)

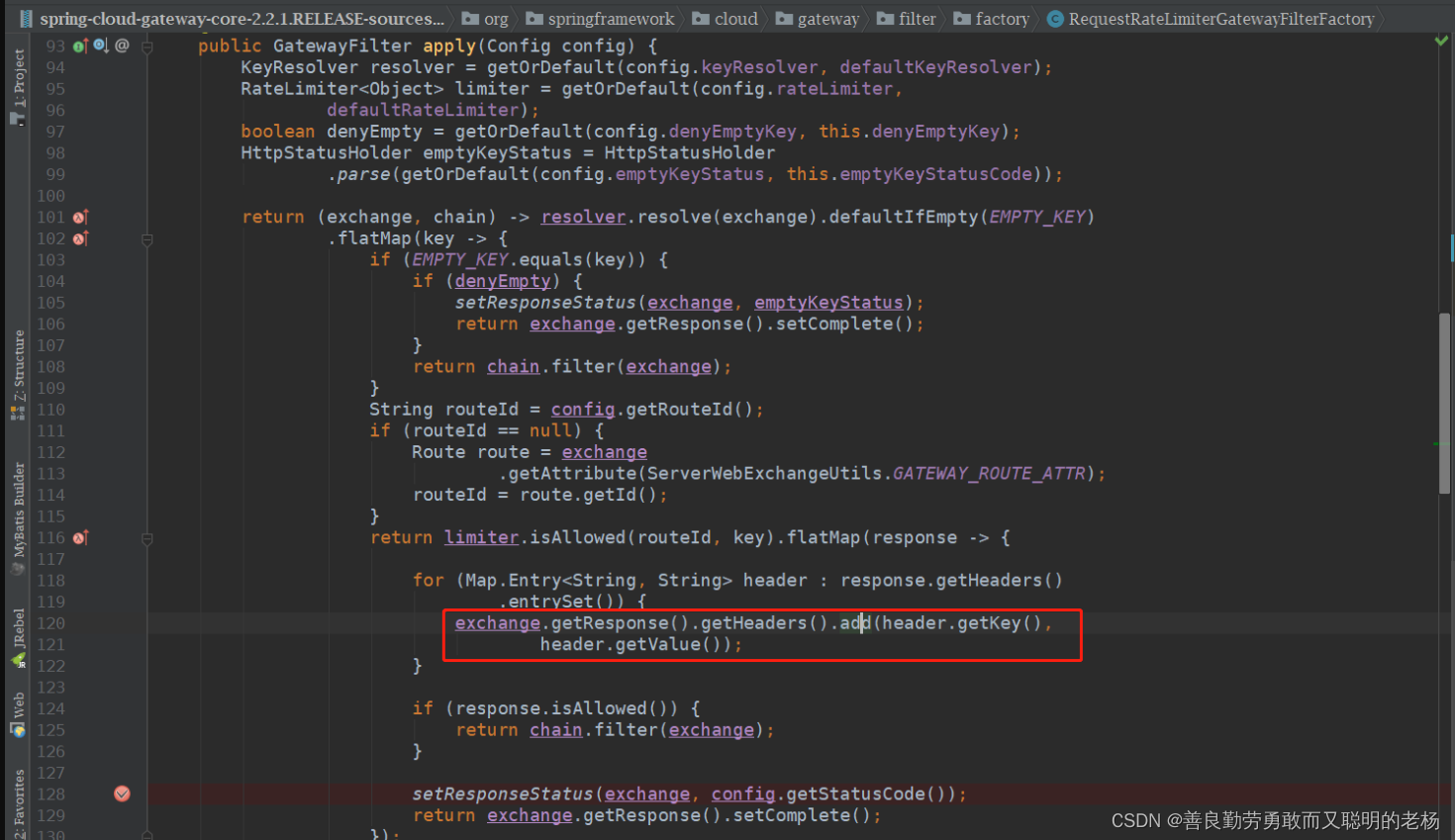

    源码如下：

    这里有往header里加参数，但是提示显示，是 ReadOnlyHttpHeaders.add，只读的headers，是不可以添加操作的，所以抛出了UnsupportedOperationException的异常：

     所以，

    这2个问题基本都是由于源代码的过滤器所导致，这里要解决问题，我们可以自定义一个过滤器替代一下，代码如下：

    1. package ***.filters;
    2.
    3. import com.alibaba.fastjson.JSONObject;
    4. import lombok.extern.slf4j.Slf4j;
    5. import org.springframework.cloud.gateway.filter.GatewayFilter;
    6. import org.springframework.cloud.gateway.filter.factory.RequestRateLimiterGatewayFilterFactory;
    7. import org.springframework.cloud.gateway.filter.ratelimit.KeyResolver;
    8. import org.springframework.cloud.gateway.filter.ratelimit.RateLimiter;
    9. import org.springframework.cloud.gateway.route.Route;
    10. import org.springframework.cloud.gateway.support.ServerWebExchangeUtils;
    11. import org.springframework.core.io.buffer.DataBuffer;
    12. import org.springframework.http.HttpStatus;
    13. import org.springframework.http.server.reactive.ServerHttpResponse;
    14. import org.springframework.stereotype.Component;
    15. import reactor.core.publisher.Mono;
    16.
    17. import java.nio.charset.StandardCharsets;
    18. import java.util.Map;
    19.
    20. /**
    21.  * @Date: 2023/4/25 10:44
    22.  * @Description gateway限流limiter，重写限流原过滤器RequestRateLimiterGatewayFilterFactory
    23.  */
    24. @Component
    25. @Slf4j
    26. public class GatewayRequestRateLimiter extends RequestRateLimiterGatewayFilterFactory {
    27.
    28.   private final RateLimiter defaultRateLimiter;
    29.
    30.   private final KeyResolver defaultKeyResolver;
    31.
    32.   public GatewayRequestRateLimiter(RateLimiter defaultRateLimiter, KeyResolver defaultKeyResolver) {
    33.     super(defaultRateLimiter, defaultKeyResolver);
    34.     this.defaultRateLimiter = defaultRateLimiter;
    35.     this.defaultKeyResolver = defaultKeyResolver;
    36.   }
    37.
    38.   @Override
    39.   public GatewayFilter apply(Config config) {
    40.     KeyResolver resolver = getOrDefault(config.getKeyResolver(), defaultKeyResolver);
    41.     RateLimiter limiter = getOrDefault(config.getRateLimiter(), defaultRateLimiter);
    42.     return (exchange, chain) -> resolver.resolve(exchange).flatMap(key -> {
    43.       String routeId = config.getRouteId();
    44.       if (routeId == null) {
    45.         Route route = exchange.getAttribute(ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR);
    46.         routeId = route.getId();
    47.       }
    48.       String finalRouteId = routeId;
    49.       return limiter.isAllowed(routeId, key).flatMap(response -> {
    50.         for (Map.Entry header : response.getHeaders().entrySet()) {
    51.           exchange.getResponse().getHeaders().add(header.getKey(), header.getValue());
    52.         }
    53.
    54.         if (response.isAllowed()) {
    55.           return chain.filter(exchange);
    56.         }
    57.
    58.         ServerHttpResponse httpResponse = exchange.getResponse();
    59.         //修改code为500
    60.         httpResponse.setStatusCode(HttpStatus.INTERNAL_SERVER_ERROR);
    61.         if (!httpResponse.getHeaders().containsKey("Content-Type")) {
    62.           httpResponse.getHeaders().add("Content-Type", "application/json");
    63.         }
    64.
    65.         //此处无法触发全局异常处理，手动返回
    66.         JSONObject object = new JSONObject();
    67.         object.put("status","429");
    68.         object.put("message","请求已被限流");
    69.         DataBuffer buffer = httpResponse.bufferFactory().wrap(object.toJSONString().getBytes(StandardCharsets.UTF_8));
    70.         return httpResponse.writeWith(Mono.just(buffer));
    71.       });
    72.     });
    73.   }
    74.
    75.   private  T getOrDefault(T configValue, T defaultValue) {
    76.     return (configValue != null) ? configValue : defaultValue;
    77.   }
    78. }
      79.

      然后，替换掉原来的gateway中的配置项：


      1. filters:
      2.     - name: GatewayRequestRateLimiter   #替换原默认过滤器RequestRateLimiter
      3.       args:
      4.         key-resolver: "#{@remoteAddrKeyResolver}"
      5.         redis-rate-limiter.replenishRate: 20 # 令牌桶填充的速率 秒为单位
      6.         redis-rate-limiter.burstCapacity: 20 # 令牌桶总容量
      7.         redis-rate-limiter.requestedTokens: 1 # 每次请求获取的令牌数


      然后再来看看效果，返回结果：




      第三个问题，是因为该服务的限流配置的过滤器优先级，和要限流的服务本身的路由配置，两者之间的执行前后优先级一样或是限流的在服务本身配置之后了，简单说就是order的值如果更大，就会越迟执行，所以才导致限流配置没生效。。改成如下即可：


      1. - id: ***service-limiter
      2.   uri: lb://***service
      3.   order: -1   ##将优先级改小，即提高优先级
      4.   predicates:
      5.     - Path= /xxx/activity/**
      6.   filters:
      7.     - name: GatewayRequestRateLimiter
      8.       args:
      9.         key-resolver: "#{@remoteAddrKeyResolver}"
      10.         redis-rate-limiter.replenishRate: 20 # 令牌桶填充的速率 秒为单位
      11.         redis-rate-limiter.burstCapacity: 20 # 令牌桶总容量
      12.         redis-rate-limiter.requestedTokens: 1 # 每次请求获取的令牌数




       好啦，至此限流的优化处理，基本完成啦。。。


      最后，对于本文有疑问的地方，欢迎下方留言讨论，喜欢的朋友，请帮忙一键三连~~~
