ArcGIS切片服务获取切片方案xml文件（conf.xml）

在使用ArcGIS进行影像、地形等切片时，往往需要保持一致的切片方案才能够更好的加载地图服务。

本文介绍如何获取已经发布好的ArcGIS服务的切片方案xml文件。

当然切片xml文件还可以通过工具Generate Tile Cache Tiling Scheme生成，具体操作可参考相关文档，本文不做说明。

示例服务地址：http://localhost:6080/arcgis/rest/services/test/globaltdt5/MapServer

有两种方式获取切片方案xml文件：

1、如果能够直接登录到发布服务的ArcGIS服务器，可以通过服务器对应的文件夹找到conf.xml文件

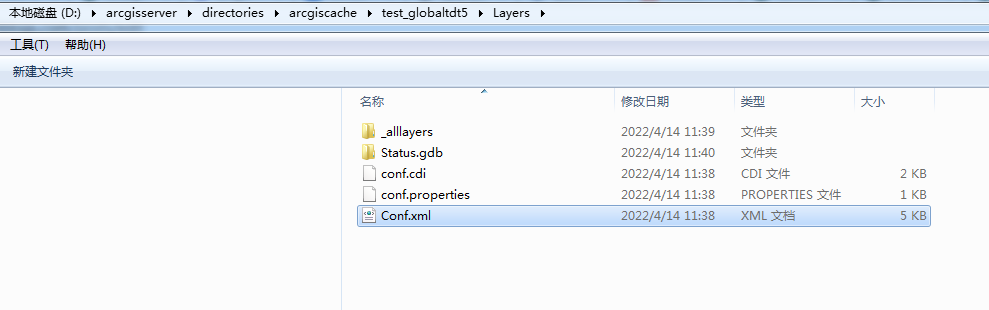

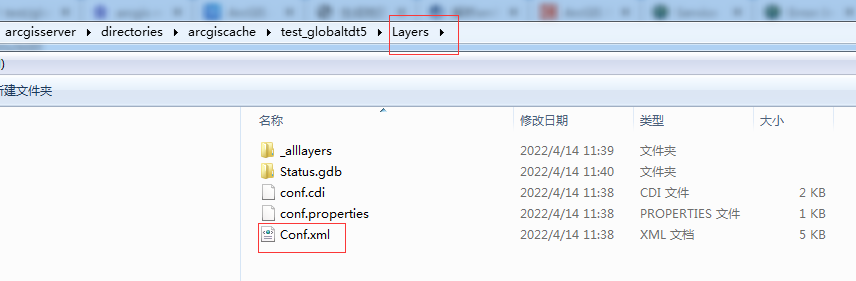

文件路径（具体路径根据安装情况确定）:D:\arcgisserver\directories\arcgiscache\test_globaltdt5\Layers\Conf.xml



2、如果只是提供了一个服务访问地址，无法登录到指定机器，可通过url获取：

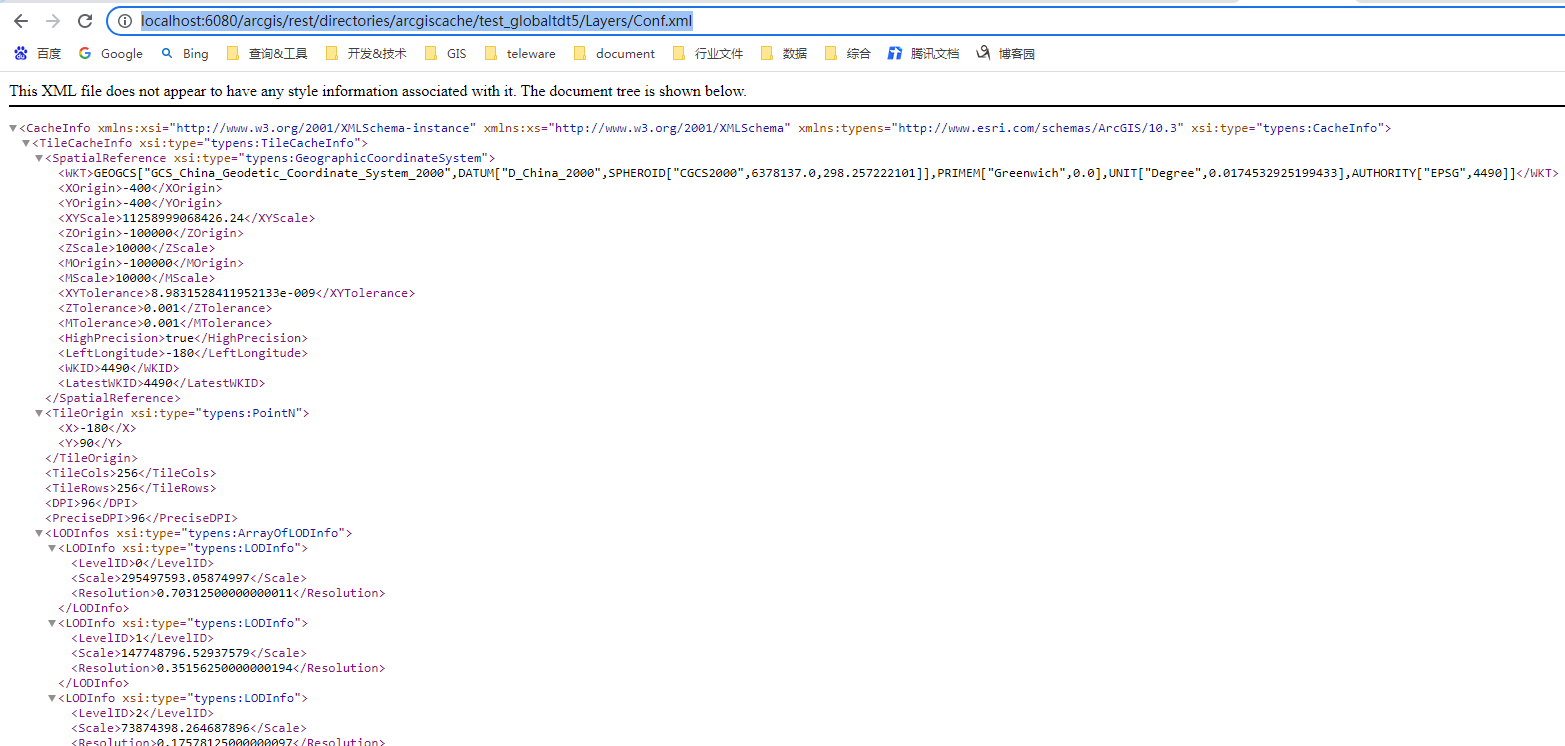

http://localhost:6080/arcgis/rest/directories/arcgiscache/test_globaltdt5/Layers/Conf.xml

说明：rest/directories/arcgiscache对应ArcGIS服务器上的arcgiscache目录：



test_globaltdt5为目录+服务名称：

 Layers\Conf.xml为服务目录下的固定名称





注意：不建议使用多种不同切片方案，尤其做三维系统，不论是基于cesium还是基于ArcGIS，建议使用ogc标准的切片方案。

目前大多数都是使用以下切片方案，建议使用该方案（ogc_2000_start_0.xml）：

xml version="1.0" encoding="UTF-8"?>

-<TileCacheInfo xmlns:typens="http://www.esri.com/schemas/ArcGIS/10.5" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="typens:TileCacheInfo">


-<SpatialReference xsi:type="typens:GeographicCoordinateSystem">

<WKT>GEOGCS["GCS_China_Geodetic_Coordinate_System_2000",DATUM["D_China_2000",SPHEROID["CGCS2000",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433],AUTHORITY["EPSG",4490]]WKT>

<XOrigin>-400XOrigin>

<YOrigin>-400YOrigin>

<XYScale>11258999068426.24XYScale>

<ZOrigin>-100000ZOrigin>

<ZScale>10000ZScale>

<MOrigin>-100000MOrigin>

<MScale>10000MScale>

<XYTolerance>8.9831528411952133e-009XYTolerance>

<ZTolerance>0.001ZTolerance>

<MTolerance>0.001MTolerance>

<HighPrecision>trueHighPrecision>

<LeftLongitude>-180LeftLongitude>

<WKID>4490WKID>

<LatestWKID>4490LatestWKID>

SpatialReference>


-<TileOrigin xsi:type="typens:PointN">

<X>-180X>

<Y>90Y>

TileOrigin>

<TileCols>256TileCols>

<TileRows>256TileRows>

<DPI>96DPI>


-<LODInfos xsi:type="typens:ArrayOfLODInfo">


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>0LevelID>

<Scale>295497593.05874997Scale>

<Resolution>0.70312500000000011Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>1LevelID>

<Scale>147748796.52937579Scale>

<Resolution>0.35156250000000194Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>2LevelID>

<Scale>73874398.264687896Scale>

<Resolution>0.17578125000000097Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>3LevelID>

<Scale>36937199.132343948Scale>

<Resolution>0.087890625000000486Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>4LevelID>

<Scale>18468599.566171981Scale>

<Resolution>0.043945312500000264Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>5LevelID>

<Scale>9234299.7830859888Scale>

<Resolution>0.021972656250000125Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>6LevelID>

<Scale>4617149.8915429944Scale>

<Resolution>0.010986328125000062Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>7LevelID>

<Scale>2308574.9457714972Scale>

<Resolution>0.0054931640625000312Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>8LevelID>

<Scale>1154287.4728857479Scale>

<Resolution>0.0027465820312500139Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>9LevelID>

<Scale>577143.73644287419Scale>

<Resolution>0.0013732910156250076Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>10LevelID>

<Scale>288571.86822143709Scale>

<Resolution>0.00068664550781250379Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>11LevelID>

<Scale>144285.9341107186Scale>

<Resolution>0.00034332275390625206Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>12LevelID>

<Scale>72142.967055359273Scale>

<Resolution>0.00017166137695312595Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>13LevelID>

<Scale>36071.483527679637Scale>

<Resolution>8.5830688476562974e-005Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>14LevelID>

<Scale>18035.741763839818Scale>

<Resolution>4.2915344238281487e-005Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>15LevelID>

<Scale>9017.8708819199092Scale>

<Resolution>2.1457672119140744e-005Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>16LevelID>

<Scale>4508.9354409599546Scale>

<Resolution>1.0728836059570372e-005Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>17LevelID>

<Scale>2254.4677204799768Scale>

<Resolution>5.364418029785185e-006Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>18LevelID>

<Scale>1127.2338602399891Scale>

<Resolution>2.6822090148925942e-006Resolution>

LODInfo>


-<LODInfo xsi:type="typens:LODInfo">

<LevelID>19LevelID>

<Scale>563.61693011999444Scale>

<Resolution>1.3411045074462967e-006Resolution>

LODInfo>

LODInfos>

<PreciseDPI>96PreciseDPI>

TileCacheInfo>
