对dubbo的DubboReference.check的参数进行剖析

背景

在使用dubbo的时候，发现当消费者启动的时候，如果提供者没有启动，即使提供者后来启动了，消费者也调不通提供者提供的接口了。

注册中心使用都是nacos

dubbo版本是3.0.4

例子

接口

public interface DemoService {
    String sayHello();
}

提供者

@DubboService
public class DemoServiceImpl implements DemoService {
    @Override
    public String sayHello() {
        return "hello";
    }
}

@EnableDubbo
@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
public class ReferenceCheckProviderStarter {
    public static void main(String[] args) {
        new SpringApplicationBuilder(ReferenceCheckProviderStarter.class)
                .web(WebApplicationType.NONE) // .REACTIVE, .SERVLET
                .run(args);
        System.out.println("dubbo service started");
    }
}

消费者

@EnableDubbo
@RestController
@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
public class ReferenceCheckConsumerStarter {

    @DubboReference
    private DemoService demoService;

    @GetMapping("/dubbo/nacos/test")
    public Object test() {
        return demoService.sayHello();
    }

    public static void main(String[] args) {
        SpringApplication.run(ReferenceCheckConsumerStarter.class, args);
    }
}

1. 先启动provider，再启动consumer

a. 启动provider

nacos出现provider的服务

b. 启动consumer

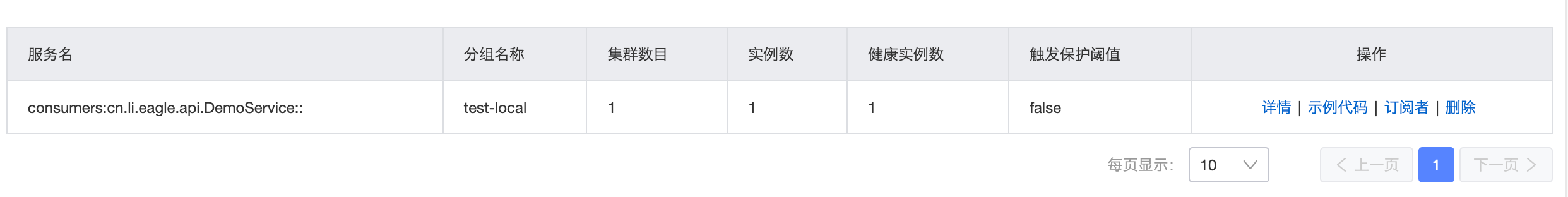

nacos出现consumer的服务

访问 http://127.0.0.1:8080/dubbo/nacos/test 后返回

hello

c. 终止provider

nacos上provider的服务消失了

访问 http://127.0.0.1:8080/dubbo/nacos/test 后返回

No provider available from registry

d. 重新启动provider

nacos出现provider的服务

访问 http://127.0.0.1:8080/dubbo/nacos/test 后返回

hello

可以看出：先启动provider，再启动consumer，整个过程是没问题。

2. 先启动consumer，再启动provider

a. 启动consumer


nacos出现consumer的服务，但立即又消失了

b. 启动provider

nacos出现provider的服务

访问 http://127.0.0.1:8080/dubbo/nacos/test 后返回

Directory already destroyed .

可以看出：当consumer先启动时，如果provider此时没有启动，consumer就再也访问不到provider的服务了。

3. 先启动consumer，再启动provider (check=false)

修改一下注解@DubboRefere的参数

@DubboReference(check = false)
private DemoService demoService;

a. 启动consumer

nacos出现consumer的服务

访问 http://127.0.0.1:8080/dubbo/nacos/test 后返回
No provider available from registry

b. 启动provider

nacos出现provider的服务

访问 http://127.0.0.1:8080/dubbo/nacos/test 后返回
hello

可以看出：即使是consumer先启动，当provider启动后，consumer还是能够访问到provider的服务的。

关于报错

org.apache.dubbo.rpc.RpcException: No provider available from registry

public class RegistryDirectory extends DynamicDirectory {
@Override
    public List> doList(Invocation invocation) {
        if (forbidden) {
            // 1. No service provider 2. Service providers are disabled
            throw new RpcException(RpcException.FORBIDDEN_EXCEPTION, "No provider available from registry " +
                    getUrl().getAddress() + " for service " + getConsumerUrl().getServiceKey() + " on consumer " +
                    NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() +
                    ", please check status of providers(disabled, not registered or in blacklist).");
        }

        // ......
    }
}

public class RegistryDirectory extends DynamicDirectory {
    String EMPTY_PROTOCOL = "empty";

    private void refreshInvoker(List invokerUrls) {
        Assert.notNull(invokerUrls, "invokerUrls should not be null");

        if (invokerUrls.size() == 1
                && invokerUrls.get(0) != null
                && EMPTY_PROTOCOL.equals(invokerUrls.get(0).getProtocol())) {
            this.forbidden = true; // Forbid to access
            this.invokers = Collections.emptyList();
            routerChain.setInvokers(this.invokers);
            destroyAllInvokers(); // Close all invokers
        } else {
            this.forbidden = false; // Allow to access

            if (invokerUrls == Collections.emptyList()) {
                invokerUrls = new ArrayList<>();
            }
            if (invokerUrls.isEmpty() && this.cachedInvokerUrls != null) {
                invokerUrls.addAll(this.cachedInvokerUrls);
            } else {
                this.cachedInvokerUrls = new HashSet<>();
                this.cachedInvokerUrls.addAll(invokerUrls);//Cached invoker urls, convenient for comparison
            }
            if (invokerUrls.isEmpty()) {
                return;
            }

            // can't use local reference because this.urlInvokerMap might be accessed at isAvailable() by main thread concurrently.
            Map> oldUrlInvokerMap = null;
            if (this.urlInvokerMap != null) {
                // the initial capacity should be set greater than the maximum number of entries divided by the load factor to avoid resizing.
                oldUrlInvokerMap = new LinkedHashMap<>(Math.round(1 + this.urlInvokerMap.size() / DEFAULT_HASHMAP_LOAD_FACTOR));
                this.urlInvokerMap.forEach(oldUrlInvokerMap::put);
            }
            Map> newUrlInvokerMap = toInvokers(oldUrlInvokerMap, invokerUrls);// Translate url list to Invoker map

            /**
             * If the calculation is wrong, it is not processed.
             *
             * 1. The protocol configured by the client is inconsistent with the protocol of the server.
             *    eg: consumer protocol = dubbo, provider only has other protocol services(rest).
             * 2. The registration center is not robust and pushes illegal specification data.
             *
             */
            if (CollectionUtils.isEmptyMap(newUrlInvokerMap)) {
                logger.error(new IllegalStateException("urls to invokers error .invokerUrls.size :" + invokerUrls.size() + ", invoker.size :0. urls :" + invokerUrls
                        .toString()));
                return;
            }

            List> newInvokers = Collections.unmodifiableList(new ArrayList<>(newUrlInvokerMap.values()));
            // pre-route and build cache, notice that route cache should build on original Invoker list.
            // toMergeMethodInvokerMap() will wrap some invokers having different groups, those wrapped invokers not should be routed.
            routerChain.setInvokers(newInvokers);
            this.invokers = multiGroup ? toMergeInvokerList(newInvokers) : newInvokers;
            this.urlInvokerMap = newUrlInvokerMap;

            try {
                destroyUnusedInvokers(oldUrlInvokerMap, newUrlInvokerMap); // Close the unused Invoker
            } catch (Exception e) {
                logger.warn("destroyUnusedInvokers error. ", e);
            }

            // notify invokers refreshed
            this.invokersChanged();
        }
    }

    private synchronized void refreshOverrideAndInvoker(List urls) {
        // mock zookeeper://xxx?mock=return null
        overrideDirectoryUrl();
        refreshInvoker(urls);
    }

    @Override
    public synchronized void notify(List urls) {
        if (isDestroyed()) {
            return;
        }

        Map> categoryUrls = urls.stream()
                .filter(Objects::nonNull)
                .filter(this::isValidCategory)
                .filter(this::isNotCompatibleFor26x)
                .collect(Collectors.groupingBy(this::judgeCategory));

        List configuratorURLs = categoryUrls.getOrDefault(CONFIGURATORS_CATEGORY, Collections.emptyList());
        this.configurators = Configurator.toConfigurators(configuratorURLs).orElse(this.configurators);

        List routerURLs = categoryUrls.getOrDefault(ROUTERS_CATEGORY, Collections.emptyList());
        toRouters(routerURLs).ifPresent(this::addRouters);

        // providers
        List providerURLs = categoryUrls.getOrDefault(PROVIDERS_CATEGORY, Collections.emptyList());

        // 3.x added for extend URL address
        ExtensionLoader addressListenerExtensionLoader = getUrl().getOrDefaultModuleModel().getExtensionLoader(AddressListener.class);
        List supportedListeners = addressListenerExtensionLoader.getActivateExtension(getUrl(), (String[]) null);
        if (supportedListeners != null && !supportedListeners.isEmpty()) {
            for (AddressListener addressListener : supportedListeners) {
                providerURLs = addressListener.notify(providerURLs, getConsumerUrl(),this);
            }
        }

        refreshOverrideAndInvoker(providerURLs); // 这里
    }

}

public abstract class AbstractRegistry implements Registry {
    /**
     * Notify changes from the Provider side.
     *
     * @param url      consumer side url
     * @param listener listener
     * @param urls     provider latest urls
     */
    protected void notify(URL url, NotifyListener listener, List urls) {
        if (url == null) {
            throw new IllegalArgumentException("notify url == null");
        }
        if (listener == null) {
            throw new IllegalArgumentException("notify listener == null");
        }
        if ((CollectionUtils.isEmpty(urls))
            && !ANY_VALUE.equals(url.getServiceInterface())) {
            logger.warn("Ignore empty notify urls for subscribe url " + url);
            return;
        }
        if (logger.isInfoEnabled()) {
            logger.info("Notify urls for subscribe url " + url + ", url size: " + urls.size());
        }
        // keep every provider's category.
        Map> result = new HashMap<>(); // 这里
        for (URL u : urls) {
            if (UrlUtils.isMatch(url, u)) {
                String category = u.getCategory(DEFAULT_CATEGORY);
                List categoryList = result.computeIfAbsent(category, k -> new ArrayList<>()); // 这里
                categoryList.add(u); // 这里
            }
        }
        if (result.size() == 0) {
            return;
        }
        Map> categoryNotified = notified.computeIfAbsent(url, u -> new ConcurrentHashMap<>());
        for (Map.Entry> entry : result.entrySet()) {
            String category = entry.getKey();
            List categoryList = entry.getValue();
            categoryNotified.put(category, categoryList);
            listener.notify(categoryList); // 这里
            // We will update our cache file after each notification.
            // When our Registry has a subscribe failure due to network jitter, we can return at least the existing cache URL.
            if (localCacheEnabled) {
                saveProperties(url);
            }
        }
    }
}

public class NacosRegistry extends FailbackRegistry {
    private void notifySubscriber(URL url, NotifyListener listener, Collection instances) {
        List enabledInstances = new LinkedList<>(instances);
        if (enabledInstances.size() > 0) {
            //  Instances
            filterEnabledInstances(enabledInstances);
        }
        List urls = toUrlWithEmpty(url, enabledInstances);
        NacosRegistry.this.notify(url, listener, urls); // 这里
    }

    String EMPTY_PROTOCOL = "empty";

    private List toUrlWithEmpty(URL consumerURL, Collection instances) {
        List urls = buildURLs(consumerURL, instances);
        if (urls.size() == 0) { // 这里
            URL empty = URLBuilder.from(consumerURL)
                .setProtocol(EMPTY_PROTOCOL)
                .addParameter(CATEGORY_KEY, DEFAULT_CATEGORY)
                .build();
            urls.add(empty);
        }
        return urls;
    }
}

当没有可用的服务时，instances是空的

当有可用的服务时，instances是不为空的

是怎么通知的

public class ServiceInfoHolder implements Closeable {
    public ServiceInfo processServiceInfo(ServiceInfo serviceInfo) {
        String serviceKey = serviceInfo.getKey();
        if (serviceKey == null) {
            return null;
        }
        ServiceInfo oldService = serviceInfoMap.get(serviceInfo.getKey());
        if (isEmptyOrErrorPush(serviceInfo)) {
            //empty or error push, just ignore
            return oldService;
        }
        serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);
        boolean changed = isChangedServiceInfo(oldService, serviceInfo);
        if (StringUtils.isBlank(serviceInfo.getJsonFromServer())) {
            serviceInfo.setJsonFromServer(JacksonUtils.toJson(serviceInfo));
        }
        MetricsMonitor.getServiceInfoMapSizeMonitor().set(serviceInfoMap.size());
        if (changed) { // 这里
            NAMING_LOGGER.info("current ips:(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() + " -> "
                    + JacksonUtils.toJson(serviceInfo.getHosts()));
            NotifyCenter.publishEvent(new InstancesChangeEvent(serviceInfo.getName(), serviceInfo.getGroupName(),
                    serviceInfo.getClusters(), serviceInfo.getHosts())); // 这里
            DiskCache.write(serviceInfo, cacheDir);
        }
        return serviceInfo;
    }
}

public class DefaultPublisher extends Thread implements EventPublisher {
    private BlockingQueue queue;

    @Override
    public void init(Class type, int bufferSize) {
        setDaemon(true);
        setName("nacos.publisher-" + type.getName());
        this.eventType = type;
        this.queueMaxSize = bufferSize;
        this.queue = new ArrayBlockingQueue<>(bufferSize); // 这里
        start();
    }

    @Override
    public boolean publish(Event event) {
        checkIsStart();
        boolean success = this.queue.offer(event); // 这里
        if (!success) {
            LOGGER.warn("Unable to plug in due to interruption, synchronize sending time, event : {}", event);
            receiveEvent(event);
            return true;
        }
        return true;
    }

    @Override
    public void run() {
        openEventHandler();
    }

    void openEventHandler() {
        try {

            // This variable is defined to resolve the problem which message overstock in the queue.
            int waitTimes = 60;
            // To ensure that messages are not lost, enable EventHandler when
            // waiting for the first Subscriber to register
            for (; ; ) {
                if (shutdown || hasSubscriber() || waitTimes <= 0) {
                    break;
                }
                ThreadUtils.sleep(1000L);
                waitTimes--;
            }

            for (; ; ) {
                if (shutdown) {
                    break;
                }
                final Event event = queue.take(); // 这里
                receiveEvent(event);  // 这里
                UPDATER.compareAndSet(this, lastEventSequence, Math.max(lastEventSequence, event.sequence()));
            }
        } catch (Throwable ex) {
            LOGGER.error("Event listener exception : ", ex);
        }
    }

    void receiveEvent(Event event) {
        final long currentEventSequence = event.sequence();

        if (!hasSubscriber()) {
            LOGGER.warn("[NotifyCenter] the {} is lost, because there is no subscriber.");
            return;
        }

        // Notification single event listener
        for (Subscriber subscriber : subscribers) {
            // Whether to ignore expiration events
            if (subscriber.ignoreExpireEvent() && lastEventSequence > currentEventSequence) {
                LOGGER.debug("[NotifyCenter] the {} is unacceptable to this subscriber, because had expire",
                        event.getClass());
                continue;
            }

            // Because unifying smartSubscriber and subscriber, so here need to think of compatibility.
            // Remove original judge part of codes.
            notifySubscriber(subscriber, event); // 这里
        }
    }

    @Override
    public void notifySubscriber(final Subscriber subscriber, final Event event) {

        LOGGER.debug("[NotifyCenter] the {} will received by {}", event, subscriber);

        final Runnable job = () -> subscriber.onEvent(event);
        final Executor executor = subscriber.executor();

        if (executor != null) {
            executor.execute(job); // 这里
        } else {
            try {
                job.run(); // 这里
            } catch (Throwable e) {
                LOGGER.error("Event callback exception: ", e);
            }
        }
    }
}

public class InstancesChangeNotifier extends Subscriber {
    @Override
    public void onEvent(InstancesChangeEvent event) {
        String key = ServiceInfo
                .getKey(NamingUtils.getGroupedName(event.getServiceName(), event.getGroupName()), event.getClusters());
        ConcurrentHashSet eventListeners = listenerMap.get(key);
        if (CollectionUtils.isEmpty(eventListeners)) {
            return;
        }
        for (final EventListener listener : eventListeners) {
            final com.alibaba.nacos.api.naming.listener.Event namingEvent = transferToNamingEvent(event);
            if (listener instanceof AbstractEventListener && ((AbstractEventListener) listener).getExecutor() != null) {
                ((AbstractEventListener) listener).getExecutor().execute(() -> listener.onEvent(namingEvent)); // 这里
            } else {
                listener.onEvent(namingEvent); // 这里
            }
        }
    }
}

public class NacosRegistry extends FailbackRegistry {
        @Override
        public void onEvent(Event event) {
            if (event instanceof NamingEvent) {
                NamingEvent e = (NamingEvent) event;
                notifier.notify(e.getInstances()); // 这里
            }
        }
}

public abstract class RegistryNotifier {
    public synchronized void notify(Object rawAddresses) {
        this.rawAddresses = rawAddresses;
        long notifyTime = System.currentTimeMillis();
        this.lastEventTime = notifyTime;

        long delta = (System.currentTimeMillis() - lastExecuteTime) - delayTime;

        // more than 10 calls && next execute time is in the future
        boolean delay = shouldDelay.get() && delta < 0;
        if (delay) {
            scheduler.schedule(new NotificationTask(this, notifyTime), -delta, TimeUnit.MILLISECONDS); // 这里
        } else {
            // check if more than 10 calls
            if (!shouldDelay.get() && executeTime.incrementAndGet() > DEFAULT_DELAY_EXECUTE_TIMES) {
                shouldDelay.set(true);
            }
            scheduler.submit(new NotificationTask(this, notifyTime)); // 这里
        }
    }

    public static class NotificationTask implements Runnable {
        private final RegistryNotifier listener;
        private final long time;

        public NotificationTask(RegistryNotifier listener, long time) {
            this.listener = listener;
            this.time = time;
        }

        @Override
        public void run() {
            try {
                if (this.time == listener.lastEventTime) {
                    listener.doNotify(listener.rawAddresses); // 这里
                    listener.lastExecuteTime = System.currentTimeMillis();
                    synchronized (listener) {
                        if (this.time == listener.lastEventTime) {
                            listener.rawAddresses = null;
                        }
                    }
                }
            } catch (Throwable t) {
                logger.error("Error occurred when notify directory. ", t);
            }
        }
    }}
}

public class NacosRegistry extends FailbackRegistry {

    private class RegistryChildListenerImpl implements EventListener {
        private RegistryNotifier notifier;

        public RegistryChildListenerImpl(String serviceName, URL consumerUrl, NotifyListener listener) {
            notifier = new RegistryNotifier(getUrl(), NacosRegistry.this.getDelay()) {
                @Override
                protected void doNotify(Object rawAddresses) {
                    List instances = (List) rawAddresses;
                    if (isServiceNamesWithCompatibleMode(consumerUrl)) {
                        /**
                         * Get all instances with corresponding serviceNames to avoid instance overwrite and but with empty instance mentioned
                         * in https://github.com/apache/dubbo/issues/5885 and https://github.com/apache/dubbo/issues/5899
                         */
                        NacosInstanceManageUtil.initOrRefreshServiceInstanceList(serviceName, instances);
                        instances = NacosInstanceManageUtil.getAllCorrespondingServiceInstanceList(serviceName);
                    }
                    NacosRegistry.this.notifySubscriber(consumerUrl, listener, instances); // 这里
                }
            };
        }
}

然后就调用了上面的👆🏻

什么时候添加监听器的？

public class NacosRegistry extends FailbackRegistry {

    private void subscribeEventListener(String serviceName, final URL url, final NotifyListener listener)
        throws NacosException {
        EventListener eventListener = new RegistryChildListenerImpl(serviceName, url, listener);  // 这里
        namingService.subscribe(serviceName,
            getUrl().getGroup(Constants.DEFAULT_GROUP),
            eventListener); // 这里
    }

    private void doSubscribe(final URL url, final NotifyListener listener, final Set serviceNames) {
        try {
            if (isServiceNamesWithCompatibleMode(url)) {
                List allCorrespondingInstanceList = Lists.newArrayList();

                /**
                 * Get all instances with serviceNames to avoid instance overwrite and but with empty instance mentioned
                 * in https://github.com/apache/dubbo/issues/5885 and https://github.com/apache/dubbo/issues/5899
                 *
                 * namingService.getAllInstances with {@link org.apache.dubbo.registry.support.AbstractRegistry#registryUrl}
                 * default {@link DEFAULT_GROUP}
                 *
                 * in https://github.com/apache/dubbo/issues/5978
                 */
                for (String serviceName : serviceNames) {
                    List instances = namingService.getAllInstances(serviceName,
                        getUrl().getGroup(Constants.DEFAULT_GROUP));
                    NacosInstanceManageUtil.initOrRefreshServiceInstanceList(serviceName, instances);
                    allCorrespondingInstanceList.addAll(instances);
                }
                notifySubscriber(url, listener, allCorrespondingInstanceList);
                for (String serviceName : serviceNames) {
                    subscribeEventListener(serviceName, url, listener); // 这里
                }
            } else {
                for (String serviceName : serviceNames) {
                    List instances = new LinkedList<>();
                    instances.addAll(namingService.getAllInstances(serviceName
                        , getUrl().getGroup(Constants.DEFAULT_GROUP)));
                    String serviceInterface = serviceName;
                    String[] segments = serviceName.split(SERVICE_NAME_SEPARATOR, -1);
                    if (segments.length == 4) {
                        serviceInterface = segments[SERVICE_INTERFACE_INDEX];
                    }
                    URL subscriberURL = url.setPath(serviceInterface).addParameters(INTERFACE_KEY, serviceInterface,
                        CHECK_KEY, String.valueOf(false));
                    notifySubscriber(subscriberURL, listener, instances);
                    subscribeEventListener(serviceName, subscriberURL, listener);
                }
            }
        } catch (Throwable cause) {
            throw new RpcException("Failed to subscribe " + url + " to nacos " + getUrl() + ", cause: " + cause.getMessage(), cause);
        }
    }
}

org.apache.dubbo.rpc.RpcException: Directory already destroyed

public abstract class AbstractDirectory implements Directory {
    @Override
    public List> list(Invocation invocation) throws RpcException {
        if (destroyed) {
            throw new RpcException("Directory already destroyed .url: " + getUrl());
        }

        return doList(invocation);
    }

    @Override
    public void destroy() {
        destroyed = true; // 这里
    }
}

public class ReferenceConfig extends ReferenceConfigBase {

    private void checkInvokerAvailable() throws IllegalStateException {
        if (shouldCheck() && !invoker.isAvailable()) {
            invoker.destroy(); // 这里
            throw new IllegalStateException("Should has at least one way to know which services this interface belongs to," +
                " subscription url: " + invoker.getUrl());
        }
    }

    protected synchronized void init() {
        // ......

        checkInvokerAvailable(); // 这里
    }

}

public abstract class ReferenceConfigBase extends AbstractReferenceConfig {
    public boolean shouldCheck() {
        checkDefault();
        Boolean shouldCheck = isCheck(); // 这里
        if (shouldCheck == null && getConsumer() != null) {
            shouldCheck = getConsumer().isCheck();
        }
        if (shouldCheck == null) {
            // default true // 这里
            shouldCheck = true;
        }
        return shouldCheck;
    }
}

public class RegistryDirectory extends DynamicDirectory {
    @Override
    public boolean isAvailable() {
        if (isDestroyed() || this.forbidden) { // 这里
            return false;
        }
        Map> localUrlInvokerMap = urlInvokerMap; // 这里
        return CollectionUtils.isNotEmptyMap(localUrlInvokerMap)
                && localUrlInvokerMap.values().stream().anyMatch(Invoker::isAvailable);
    }
}

如果没有设置check字段，那么就会在启动的时候检查提供方是否可用，如果不可用，就销毁了。
