【MMDetection】MMDetection中AnchorGenerator学习笔记

初始化-AnchorGenerator()

@TASK_UTILS.register_module()
class AnchorGenerator:

    def __init__(self, strides, ratios, scales=None, base_sizes=None, scale_major=True, octave_base_scale=None, scales_per_octave=None, centers=None, center_offset=0., use_box_type=False):

        # check center and center_offset
        if center_offset != 0:
            assert centers is None, 'center cannot be set when center_offset' \
                                    f'!=0, {centers} is given.'
        if not (0 <= center_offset <= 1):
            raise ValueError('center_offset should be in range [0, 1], '
                             f'{center_offset} is given.')
        if centers is not None:
            assert len(centers) == len(strides), \
                'The number of strides should be the same as centers, got ' \
                f'{strides} and {centers}'

        # calculate base sizes of anchors
        self.strides = [_pair(stride) for stride in strides]
        self.base_sizes = [min(stride) for stride in self.strides
                           ] if base_sizes is None else base_sizes
        assert len(self.base_sizes) == len(self.strides), \
            'The number of strides should be the same as base sizes, got ' \
            f'{self.strides} and {self.base_sizes}'

        # calculate scales of anchors
        assert ((octave_base_scale is not None
                 and scales_per_octave is not None) ^ (scales is not None)), \
            'scales and octave_base_scale with scales_per_octave cannot' \
            ' be set at the same time'
        if scales is not None:
            self.scales = torch.Tensor(scales)
        elif octave_base_scale is not None and scales_per_octave is not None:
            octave_scales = np.array(
                [2**(i / scales_per_octave) for i in range(scales_per_octave)])
            scales = octave_scales * octave_base_scale
            self.scales = torch.Tensor(scales)
        else:
            raise ValueError('Either scales or octave_base_scale with '
                             'scales_per_octave should be set')

        self.octave_base_scale = octave_base_scale
        self.scales_per_octave = scales_per_octave
        self.ratios = torch.Tensor(ratios)
        self.scale_major = scale_major
        self.centers = centers
        self.center_offset = center_offset
        self.base_anchors = self.gen_base_anchors()
        self.use_box_type = use_box_type
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

构造函数参数讲解
注意：这三个参数scale_major,center_offset,use_box_type我不是很清晰，如果你们看到了有懂的，可以评论告诉我一下，谢谢啦。

strides:           (list[int] | list[tuple[int, int]])  输入的各个特征图的stride步长，若为list[int]，则经过_pair(stride)变为list[tuple[int, int]]；若为list[tuple[int, int]]，表示(w_stride,h_stride)。
ratios:            (list[float]) 每个grid上生成多个anchor的ratio，ratio=height/width，基于base_size变化。
scales:            (list[int] | None) 每个grid上生成多个anchor的scale，表示缩放比例，基于base_size变化，注意不可以与octave_base_scale、scales_per_octave同时指定。在RetinaNet模型中，指定了octave_base_scaleh和scales_per_octave，因此scales默认为None.
base_sizes:        (list[int] | None) 每一特征层的anchor的基本大小。若为None，则默认等于stride(若stride的长宽不一致,则选择短边) 。
scale_major:       (bool) 首先每个grid上会生成len(scales)*len(ratios)个base anchor。scale_major将确定base anchor的排列顺序！若为true，表示scale优先，即base anchors的每一行的scale相同；若为false，表示ratios优先，base anchors的每一行的ratio相同。在MMDetection2.0中，默认为True.
octave_base_scale: (int) The base scale of octave。
scales_per_octave: (int) Number of scales for each octave。octave_base_scale and scales_per_octave 用在retinanet中，注意不可以与scales同时指定，scale和octave_base_scale and scales_per_octave的转换公式为：scales = [2**(i / scales_per_octave) for i in range(scales_per_octave)]) * octave_base_scale。
centers:           (list[tuple[float, float]] | None) AnchorGenerator类中默认为None，若为None，则每个anchor中心与网格的左上角对齐！yolohead会设计center，使得anchor中心与网格中心对齐。
center_offset:     (float) The offset of center in proportion to anchors' width and height。
use_box_type:      (bool) Whether to warp anchors with the box type data structure. Defaults to False.
1
2
3
4
5
6
7
8
9
10

# 计算base_size
self.strides = [_pair(stride) for stride in strides] #
self.base_sizes = [min(stride) for stride in self.strides] if base_sizes is None else base_sizes
1
2
3

下图是RetinaNet网络中的base_size和stride.

# 得到scales. 注意RetinaNet网络中scales为None
if scales is not None:
    self.scales = torch.Tensor(scales)
elif octave_base_scale is not None and scales_per_octave is not None:
    octave_scales = np.array([2**(i / scales_per_octave) for i in range(scales_per_octave)])
    scales = octave_scales * octave_base_scale
    self.scales = torch.Tensor(scales)
1
2
3
4
5
6
7

下图是RetinaNet网络中的octave_base_scale和octave_scales .

 self.octave_base_scale = octave_base_scale # RetinaNet中为4
 self.scales_per_octave = scales_per_octave # RetinaNet中为3
 self.ratios = torch.Tensor(ratios) # RetinaNet中为[0.5, 1.0, 2.0]
 self.scale_major = scale_major # RetinaNet中为True
 self.centers = centers # RetinaNet中为None
 self.center_offset = center_offset # RetinaNet中为0
 self.base_anchors = self.gen_base_anchors() # 在下面会重点讲
 self.use_box_type = use_box_type # # RetinaNet中为False
1
2
3
4
5
6
7
8

# gen_base_anchors 调用了 gen_single_level_base_anchors，得到多尺度的anchor. gen_single_level_base_anchors 会在下面详细讲。
def gen_base_anchors(self):
    multi_level_base_anchors = []
    for i, base_size in enumerate(self.base_sizes):
        center = None
        if self.centers is not None:
            center = self.centers[i]
        multi_level_base_anchors.append(self.gen_single_level_base_anchors(base_size,vscales=self.scales, ratios=self.ratios, center=center))
    return multi_level_base_anchors
1
2
3
4
5
6
7
8
9

下面以RetinaNet为例，讲解一下

def gen_single_level_base_anchors(self, base_size, scales, ratios, center=None):

    w = base_size
    h = base_size

    if center is None:
        x_center = self.center_offset * w
        y_center = self.center_offset * h
    else:
        x_center, y_center = center

	# h/w = ratios
    h_ratios = torch.sqrt(ratios)
    w_ratios = 1 / h_ratios

    if self.scale_major:

        ws = (w * w_ratios[:, None] * scales[None, :]).view(-1)
        hs = (h * h_ratios[:, None] * scales[None, :]).view(-1)
    else:
        ws = (w * scales[:, None] * w_ratios[None, :]).view(-1)
        hs = (h * scales[:, None] * h_ratios[None, :]).view(-1)

    base_anchors = [ x_center - 0.5 * ws, y_center - 0.5 * hs, x_center + 0.5 * ws, y_center + 0.5 * hs]

    base_anchors = torch.stack(base_anchors, dim=-1)

    return base_anchors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

# 当前特征图的w和h
 w = base_size
 h = base_size
1
2
3

# 计算anchor中心点位置，默认为(0,0)
 if center is None:
     x_center = self.center_offset * w
     y_center = self.center_offset * h
 else:
     x_center, y_center = center
1
2
3
4
5
6

# 保证高宽比为ratios，注意下述操作是对tensor的操作
 h_ratios = torch.sqrt(ratios)
 w_ratios = 1 / h_ratios
1
2
3

ws = (w * w_ratios[:, None] * scales[None, :]).view(-1)
hs = (h * h_ratios[:, None] * scales[None, :]).view(-1)
1
2

注意：这里通过引入None，扩充维度。

# 生成当前层的base_anchor
base_anchors = [ x_center - 0.5 * ws, y_center - 0.5 * hs, x_center + 0.5 * ws, y_center + 0.5 * hs]
base_anchors = torch.stack(base_anchors, dim=-1)
1
2
3

需要注意scale_major变量的作用，用于确定base anchor的排列顺序。若为true，那先乘以ratios，再乘以scales。举个例子，scales=[1,2]，ratios=[0.5,1]，base size为(32,32)。那么

当scale_major为true， 则返回[ [($32\sqrt{2},\frac{32}{\sqrt{2}}$), (32,32)] , [($64\sqrt{2},\frac{64}{\sqrt{2}}$),(64,64)] ]
当scale_major为false，则返回[ [(32,32),(64,64)] , [($32\sqrt{2},\frac{32}{\sqrt{2}}$),($64\sqrt{2},\frac{64}{\sqrt{2}}$)] ]

Anchor平移-grid_priors

与anchor初始化一样，平移anchor的操作主要在single_level_grid_priors函数中，下面重点讲解这个函数。

def grid_priors(self, featmap_sizes, device='cuda'):
    assert self.num_levels == len(featmap_sizes)
    multi_level_anchors = []
    for i in range(self.num_levels):
        anchors = self.single_level_grid_priors(
            self.base_anchors[i].to(device),
            featmap_sizes[i],
            self.strides[i],
            device=device)
        multi_level_anchors.append(anchors)
    return multi_level_anchors # 返回list[num_levels * tensor(H*W*num_anchors,4)]

def single_level_grid_priors(self, base_anchors, featmap_size, stride=(16, 16), device='cuda'):

	base_anchors = self.base_anchors[level_idx].to(device).to(dtype)
	feat_h, feat_w = featmap_size
	stride_w, stride_h = self.strides[level_idx]

	shift_x = torch.arange(0, feat_w, device=device).to(dtype) * stride_w
	shift_y = torch.arange(0, feat_h, device=device).to(dtype) * stride_h

	shift_xx, shift_yy = self._meshgrid(shift_x, shift_y)
	shifts = torch.stack([shift_xx, shift_yy, shift_xx, shift_yy], dim=-1)

	all_anchors = base_anchors[None, :, :] + shifts[:, None, :]
	all_anchors = all_anchors.view(-1, 4)

	if self.use_box_type:
	    all_anchors = HorizontalBoxes(all_anchors)
	return all_anchors

def _meshgrid(self, x, y, row_major=True):
       # 获得网格点
       xx = x.repeat(len(y))
       yy = y.view(-1, 1).repeat(1, len(x)).view(-1)
       if row_major:
           return xx, yy # xx和yy的shape为(rows*cols,)
       else:
           return yy, xx
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

# 获取当前层的base_anchors
base_anchors = self.base_anchors[level_idx].to(device).to(dtype)
1
2

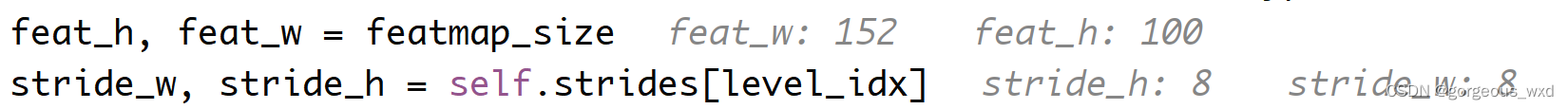

# 当前层的特征图大小和步长
feat_h, feat_w = featmap_size
stride_w, stride_h = self.strides[level_idx]
1
2
3

# 乘以stride，映射回原图
shift_x = torch.arange(0, feat_w, device=device).to(dtype) * stride_w
shift_y = torch.arange(0, feat_h, device=device).to(dtype) * stride_h
1
2
3

# 获取anchor的中心点
shift_xx, shift_yy = self._meshgrid(shift_x, shift_y)
1
2

shift_xx如下，每隔feat_w重复

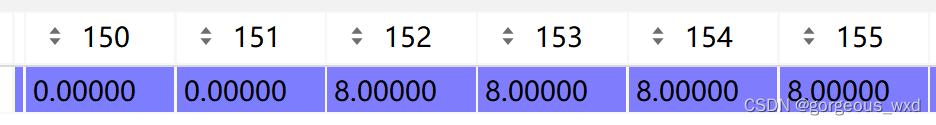

shift_yy如下，每隔feat_h加stride

shifts = torch.stack([shift_xx, shift_yy, shift_xx, shift_yy], dim=-1)
1

shifts如下,(0,1)和(2,3)一致，是因为左上角和右上角坐标移动的时候要同时移动。

非常简洁的代码实现

# 得到特征图上所有的anchors
all_anchors = base_anchors[None, :, :] + shifts[:, None, :]
1
2

base_anchors[None, :, :] 扩充维度为(1,9,4)
shifts[:, None, :] 扩成维度为(15200,1,4)
相加的时候，base_anchors(1,9,4)会广播为(15200,9,4),即将(9,4)赋值为15200份。shifts(15200,1,4)会广播为(15200,9,4),即将(1,4)复制为9份。

1
2
3
4

base_anchors如下

shifts[:, None, :]如下，相加的时候会将一行复制为9行。

# (15200,9,4)变为(136800,4)
all_anchors = all_anchors.view(-1, 4)
1
2

计算有效anchor-valid_flags

由于在数据预处理时，填充了大量黑边，所以在黑边上的anchor不用计算loss，可以忽略，节省算力。因此valid_flags返回有效的anchor索引。

def valid_flags(self, featmap_sizes, pad_shape, device='cuda'):

        # pad_shape是有效的特征图大小，是指Pad后的size，collate之前
        assert self.num_levels == len(featmap_sizes)
        multi_level_flags = []
        for i in range(self.num_levels):
            anchor_stride = self.strides[i]
            feat_h, feat_w = featmap_sizes[i]
            h, w = pad_shape[:2]
            valid_feat_h = min(int(np.ceil(h / anchor_stride[1])), feat_h) # 获得有效的特征图
            valid_feat_w = min(int(np.ceil(w / anchor_stride[0])), feat_w) # 获得有效的特征图
            flags = self.single_level_valid_flags((feat_h, feat_w),
                                                  (valid_feat_h, valid_feat_w),
                                                  self.num_base_anchors[i],
                                                  device=device)
            multi_level_flags.append(flags)  # 有效位置设置为1，否则为0
        return multi_level_flags

    def single_level_valid_flags(self,
                                 featmap_size,
                                 valid_size,
                                 num_base_anchors,
                                 device='cuda'):
        feat_h, feat_w = featmap_size
        valid_h, valid_w = valid_size
        assert valid_h <= feat_h and valid_w <= feat_w
        # 使用填桶法生成有效的位置
        valid_x = torch.zeros(feat_w, dtype=torch.bool, device=device)
        valid_y = torch.zeros(feat_h, dtype=torch.bool, device=device)
        # 有效的位置填1
        valid_x[:valid_w] = 1
        valid_y[:valid_h] = 1

        valid_xx, valid_yy = self._meshgrid(valid_x, valid_y)

        valid = valid_xx & valid_yy # tensor(H*W,) bool

        valid = valid[:, None].expand(valid.size(0),num_base_anchors).contiguous().view(-1)
        # tensor(H*W*num_base_anchors,) bool
        return valid
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

valid_x如下

valid_y如下

参考文献

1. mmdetection源码阅读笔记：prior generator
