AXI VDMA回环测试

Block Design

搭建如下图所示的硬件系统：

该硬件系统的数据流向为：
DDR–>AXI VDMA–>AXI DATA FIFO–>AXI VDMA–>DDR
即将一幅图像由一段地址空间搬运至另一段地址空间。
其中，AXI VDMA配置如下：

地址位宽32，缓存3帧，读写通道的配置如上图所示。

写通道Fsync Options选择s2mm tuser，读通道选择None，即保持默认。
AXI4-Stream DATA FIFO配置如下：

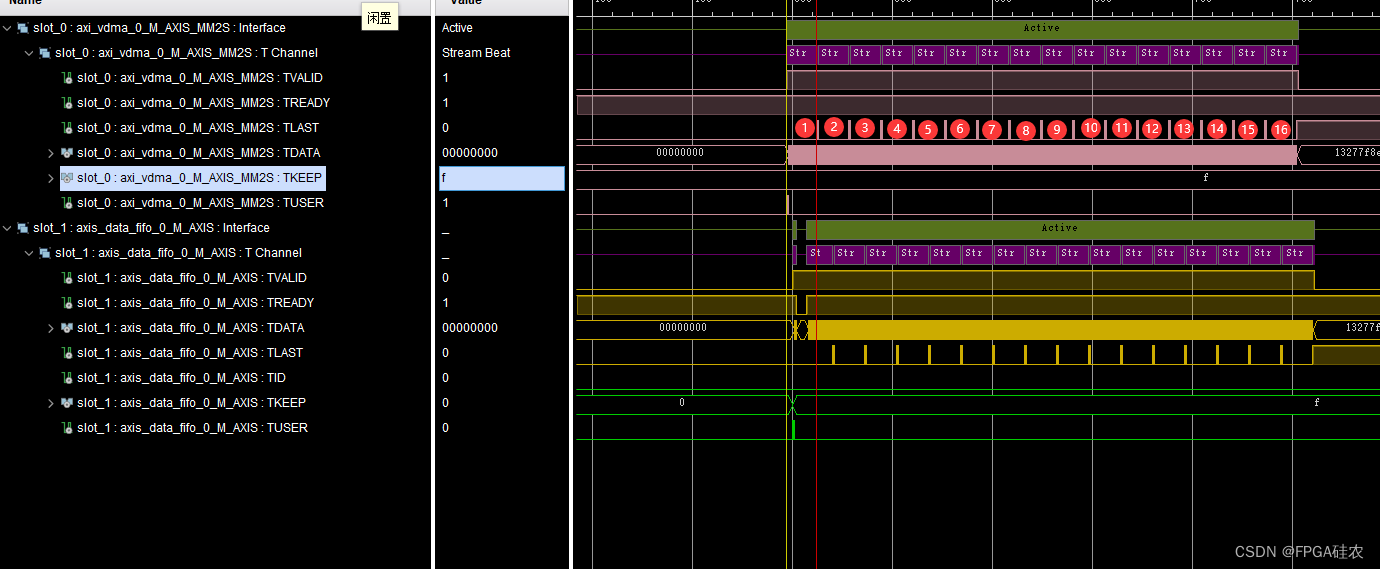

此外，为了更直观地感受整个数据传输过程，我们还在硬件系统中加入了ILA，以实时抓取波形观察。

SDK设计

vdma_api.c

/******************************************************************************
*
* Copyright (C) 2014 - 2018 Xilinx, Inc.  All rights reserved.
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to deal
* in the Software without restriction, including without limitation the rights
* to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* The above copyright notice and this permission notice shall be included in
* all copies or substantial portions of the Software.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL
* THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
* LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
* OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
* THE SOFTWARE.
*
*
*
******************************************************************************/
/*****************************************************************************/
/**
 *
 * @file vdma_api.c
 *
 * This file has high level API to configure and start the VDMA.The file assumes that:
 * The design has VDMA with both MM2S and S2MM path enable.
 * The API's has tested with hardware that has tow VDMA and MM2S to S2MM are back
 * to back connected for each VDMA.
 *
 * MODIFICATION HISTORY:
 *
 * Ver   Who  Date     Changes
 * ----- ---- -------- -------------------------------------------------------
 * 4.0   adk  11/26/15 First release
 ****************************************************************************/

#define DEBUG_MODE		0

/******************** Include files **********************************/
#include "xaxivdma.h"
#include "xparameters.h"
#include "xil_exception.h"

/******************** Data structure Declarations *****************************/

typedef struct vdma_handle
{
	/* The device ID of the VDMA */
	unsigned int device_id;
	/* The state variable to keep track if the initialization is done*/
	unsigned int init_done;
	/** The XAxiVdma driver instance data. */
	XAxiVdma* InstancePtr;
	/* The XAxiVdma_DmaSetup structure contains all the necessary information to
	 * start a frame write or read. */
	XAxiVdma_DmaSetup ReadCfg;
	XAxiVdma_DmaSetup WriteCfg;
	/* Horizontal size of frame */
	unsigned int hsize;
	/* Vertical size of frame */
	unsigned int vsize;
	/* Buffer address from where read and write will be done by VDMA */
	unsigned int src_buffer_address;
	unsigned int dest_buffer_address;
	/* Flag to tell VDMA to interrupt on frame completion*/
	unsigned int enable_frm_cnt_intr;
	/* The counter to tell VDMA on how many frames the interrupt should happen*/
	unsigned int number_of_frame_count;
}vdma_handle;

/******************** Constant Definitions **********************************/

/*
 * Device related constants. These need to defined as per the HW system.
 */
vdma_handle vdma_context[XPAR_XAXIVDMA_NUM_INSTANCES];
static unsigned int context_init=0;

/******************* Function Prototypes ************************************/

static int ReadSetup(vdma_handle *vdma_context);
static int WriteSetup(vdma_handle *vdma_context);
static int StartTransfer(XAxiVdma *InstancePtr);

/*****************************************************************************/
/**
*
* run_triple_frame_buffer API
*
* This API is the interface between application and other API. When application will call
* this API with right argument, This API will call rest of the API to configure the read
* and write path of VDMA,based on ID. After that it will start both the read and write path
* of VDMA
*
* @param	InstancePtr is the handle to XAxiVdma data structure.
* @param	DeviceId is the device ID of current VDMA
* @param	hsize is the horizontal size of the frame. It will be in Pixels.
* 		The actual size of frame will be calculated by multiplying this
* 		with tdata width.
* @param 	vsize is the Vertical size of the frame.
* @param	buf_base_addr is the buffer address where frames will be written
*		and read by VDMA.
* @param 	number_frame_count specifies after how many frames the interrupt
*		should come.
* @param 	enable_frm_cnt_intr is for enabling frame count interrupt
*		when set to 1.
* @return
*		- XST_SUCCESS if example finishes successfully
*		- XST_FAILURE if example fails.
*
******************************************************************************/
int run_triple_frame_buffer(XAxiVdma* InstancePtr, int DeviceId, int hsize,
		int vsize, int src_buf_base_addr,int dest_buf_base_addr, int number_frame_count,
		int enable_frm_cnt_intr)
{
	int Status,i;
	XAxiVdma_Config *Config;
	XAxiVdma_FrameCounter FrameCfgPtr;

	/* This is one time initialization of state machine context.
	 * In first call it will be done for all VDMA instances in the system.
	 */
	if(context_init==0) {
		for(i=0; i < XPAR_XAXIVDMA_NUM_INSTANCES; i++) {
			vdma_context[i].InstancePtr = NULL;
			vdma_context[i].device_id = -1;
			vdma_context[i].hsize = 0;
			vdma_context[i].vsize = 0;
			vdma_context[i].init_done = 0;
			vdma_context[i].src_buffer_address = 0;
			vdma_context[i].dest_buffer_address = 0;
			vdma_context[i].enable_frm_cnt_intr = 0;
			vdma_context[i].number_of_frame_count = 0;

		}
		context_init = 1;
	}

	/* The below initialization will happen for each VDMA. The API argument
	 * will be stored in internal data structure
	 */

	/* The information of the XAxiVdma_Config comes from hardware build.
	 * The user IP should pass this information to the AXI DMA core.
	 */
	Config = XAxiVdma_LookupConfig(DeviceId);
	if (!Config) {
		xil_printf("No video DMA found for ID %d\r\n",DeviceId );
		return XST_FAILURE;
	}

	if(vdma_context[DeviceId].init_done ==0) {
		vdma_context[DeviceId].InstancePtr = InstancePtr;

		/* Initialize DMA engine */
		Status = XAxiVdma_CfgInitialize(vdma_context[DeviceId].InstancePtr,
						Config, Config->BaseAddress);
		if (Status != XST_SUCCESS) {
			xil_printf("Configuration Initialization failed %d\r\n",
					Status);
			return XST_FAILURE;
		}

		vdma_context[DeviceId].init_done = 1;
	}

	vdma_context[DeviceId].device_id = DeviceId;
	vdma_context[DeviceId].vsize = vsize;

	vdma_context[DeviceId].src_buffer_address = src_buf_base_addr;
	vdma_context[DeviceId].dest_buffer_address = dest_buf_base_addr;
	vdma_context[DeviceId].enable_frm_cnt_intr = enable_frm_cnt_intr;
	vdma_context[DeviceId].number_of_frame_count = number_frame_count;
	vdma_context[DeviceId].hsize = hsize * (Config->Mm2SStreamWidth>>3);

	/* Setup the write channel */
	Status = WriteSetup(&vdma_context[DeviceId]);
	if (Status != XST_SUCCESS) {
		xil_printf("Write channel setup failed %d\r\n", Status);
		if(Status == XST_VDMA_MISMATCH_ERROR)
			xil_printf("DMA Mismatch Error\r\n");
		return XST_FAILURE;
	}

	/* Setup the read channel */
	Status = ReadSetup(&vdma_context[DeviceId]);
	if (Status != XST_SUCCESS) {
		xil_printf("Read channel setup failed %d\r\n", Status);
		if(Status == XST_VDMA_MISMATCH_ERROR)
			xil_printf("DMA Mismatch Error\r\n");
		return XST_FAILURE;
	}

	/* The frame counter interrupt is enabled, setting VDMA for same */
	if(vdma_context[DeviceId].enable_frm_cnt_intr) {
		FrameCfgPtr.ReadDelayTimerCount = 1;
		FrameCfgPtr.ReadFrameCount = number_frame_count;
		FrameCfgPtr.WriteDelayTimerCount = 1;
		FrameCfgPtr.WriteFrameCount = number_frame_count;

		XAxiVdma_SetFrameCounter(vdma_context[DeviceId].InstancePtr,&FrameCfgPtr);
		/* Enable DMA read and write channel interrupts. The configuration for interrupt
		 * controller will be done by application	 */
		XAxiVdma_IntrEnable(vdma_context[DeviceId].InstancePtr,
				XAXIVDMA_IXR_ERROR_MASK |
				XAXIVDMA_IXR_FRMCNT_MASK,XAXIVDMA_WRITE);
		XAxiVdma_IntrEnable(vdma_context[DeviceId].InstancePtr,
				XAXIVDMA_IXR_ERROR_MASK |
				XAXIVDMA_IXR_FRMCNT_MASK,XAXIVDMA_READ);
	} else	{
		/* Enable DMA read and write channel interrupts. The configuration for interrupt
		* controller will be done by application	 */
		XAxiVdma_IntrEnable(vdma_context[DeviceId].InstancePtr,
					XAXIVDMA_IXR_ERROR_MASK,XAXIVDMA_WRITE);
		XAxiVdma_IntrEnable(vdma_context[DeviceId].InstancePtr,
					XAXIVDMA_IXR_ERROR_MASK ,XAXIVDMA_READ);
	}

	/* Start the DMA engine to transfer */
	Status = StartTransfer(vdma_context[DeviceId].InstancePtr);
	if (Status != XST_SUCCESS) {
		if(Status == XST_VDMA_MISMATCH_ERROR)
			xil_printf("DMA Mismatch Error\r\n");
		return XST_FAILURE;
	}
#if DEBUG_MODE
	xil_printf("Code is in Debug mode, Make sure that buffer addresses are at valid memory \r\n");
	xil_printf("In triple mode, there has to be six consecutive buffers for Debug mode \r\n");
	{
		u32 pixels,j,Addr = vdma_context[DeviceId].buffer_address;
		u8 *dst,*src;
		u32 total_pixel = vdma_context[DeviceId].stride * vdma_context[DeviceId].vsize;
		src = (unsigned char *)Addr;
		dst = (unsigned char *)Addr + (total_pixel * vdma_context->InstancePtr->MaxNumFrames);

		for(j=0;j<vdma_context->InstancePtr->MaxNumFrames;j++) {
			for(pixels=0;pixels<total_pixel;pixels++) {
				if(src[pixels] != dst[pixels]) {
					xil_printf("VDMA transfer failed: SRC=0x%x, DST=0x%x\r\n",
							src[pixels],dst[pixels]);
					exit(-1);
				}
			}
			src = src + total_pixel;
			dst = dst + total_pixel;
		}
	}
	xil_printf("VDMA transfer is happening and checked for 3 frames \r\n");
#endif

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
*
* This function sets up the read channel
*
* @param	vdma_context is the context pointer to the VDMA engine.
*
* @return	XST_SUCCESS if the setup is successful, XST_FAILURE otherwise.
*
* @note		None.
*
******************************************************************************/
static int ReadSetup(vdma_handle *vdma_context)
{
	int Index;
	u32 Addr;
	int Status;

	vdma_context->ReadCfg.VertSizeInput = vdma_context->vsize;
	vdma_context->ReadCfg.HoriSizeInput = vdma_context->hsize;

	vdma_context->ReadCfg.Stride = vdma_context->hsize;
	vdma_context->ReadCfg.FrameDelay = 0;  /* This example does not test frame delay */

	vdma_context->ReadCfg.EnableCircularBuf = 1;
	vdma_context->ReadCfg.EnableSync = 1;  /* Gen-Lock */

	vdma_context->ReadCfg.PointNum = 0;
	vdma_context->ReadCfg.EnableFrameCounter = 0; /* Endless transfers */

	vdma_context->ReadCfg.FixedFrameStoreAddr = 0; /* We are not doing parking */
	/* Configure the VDMA is per fixed configuration, This configuration is being used by majority
	 * of customer. Expert users can play around with this if they have different configurations */

	Status = XAxiVdma_DmaConfig(vdma_context->InstancePtr, XAXIVDMA_READ, &vdma_context->ReadCfg);
	if (Status != XST_SUCCESS) {
		xil_printf("Read channel config failed %d\r\n", Status);
		return XST_FAILURE;
	}

	/* Initialize buffer addresses
	 *
	 * These addresses are physical addresses
	 */
	Addr = vdma_context->src_buffer_address;

	for(Index = 0; Index < vdma_context->InstancePtr->MaxNumFrames; Index++) {
		vdma_context->ReadCfg.FrameStoreStartAddr[Index] = Addr;

		/* Initializing the buffer in case of Debug mode */

#if DEBUG_MODE
		{
			u32 i;
			u8 *src;
			u32 total_pixel = vdma_context->stride * vdma_context->vsize;
			src = (unsigned char *)Addr;
			xil_printf("Read Buffer %d address: 0x%x \r\n",Index,Addr);
			for(i=0;i<total_pixel;i++)
			{
				src[i] = i & 0xFF;
			}
		}
#endif
		Addr +=  vdma_context->hsize * vdma_context->vsize;
	}

	/* Set the buffer addresses for transfer in the DMA engine
	 * The buffer addresses are physical addresses
	 */
	Status = XAxiVdma_DmaSetBufferAddr(vdma_context->InstancePtr, XAXIVDMA_READ,
			vdma_context->ReadCfg.FrameStoreStartAddr);
	if (Status != XST_SUCCESS) {
		xil_printf(
			"Read channel set buffer address failed %d\r\n", Status);

		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

/*****************************************************************************/
/**
*
* This function sets up the write channel
*
* @param	dma_context is the context pointer to the VDMA engine..
*
* @return	XST_SUCCESS if the setup is successful, XST_FAILURE otherwise.
*
* @note		None.
*
******************************************************************************/
static int WriteSetup(vdma_handle *vdma_context)
{
	int Index;
	u32 Addr;
	int Status;

	vdma_context->WriteCfg.VertSizeInput = vdma_context->vsize;
	vdma_context->WriteCfg.HoriSizeInput = vdma_context->hsize;

	vdma_context->WriteCfg.Stride = vdma_context->hsize;
	vdma_context->WriteCfg.FrameDelay = 0;  /* This example does not test frame delay */

	vdma_context->WriteCfg.EnableCircularBuf = 1;
	vdma_context->WriteCfg.EnableSync = 1;  /*  Gen-Lock */

	vdma_context->WriteCfg.PointNum = 0;
	vdma_context->WriteCfg.EnableFrameCounter = 0; /* Endless transfers */

	vdma_context->WriteCfg.FixedFrameStoreAddr = 0; /* We are not doing parking */
	/* Configure the VDMA is per fixed configuration, This configuration
	 * is being used by majority of customers. Expert users can play around
	 * with this if they have different configurations
	 */

	Status = XAxiVdma_DmaConfig(vdma_context->InstancePtr, XAXIVDMA_WRITE, &vdma_context->WriteCfg);
	if (Status != XST_SUCCESS) {
		xil_printf(
			"Write channel config failed %d\r\n", Status);

		return Status;
	}

	/* Initialize buffer addresses
	 *
	 * Use physical addresses
	 */
	Addr = vdma_context->dest_buffer_address;
	/* If Debug mode is enabled write frame is shifted 3 Frames
	 * store ahead to compare read and write frames
	 */
#if DEBUG_MODE
	Addr = Addr + vdma_context->InstancePtr->MaxNumFrames * \
			(vdma_context->stride * vdma_context->vsize);
#endif

	for(Index = 0; Index < vdma_context->InstancePtr->MaxNumFrames; Index++) {
		vdma_context->WriteCfg.FrameStoreStartAddr[Index] = Addr;
#if DEBUG_MODE
		xil_printf("Write Buffer %d address: 0x%x \r\n",Index,Addr);
#endif

		Addr += (vdma_context->hsize * vdma_context->vsize);
	}

	/* Set the buffer addresses for transfer in the DMA engine */
	Status = XAxiVdma_DmaSetBufferAddr(vdma_context->InstancePtr,
			XAXIVDMA_WRITE,
			vdma_context->WriteCfg.FrameStoreStartAddr);
	if (Status != XST_SUCCESS) {
		xil_printf("Write channel set buffer address failed %d\r\n",
				Status);
		return XST_FAILURE;
	}

	/* Clear data buffer
	 */
#if DEBUG_MODE
	memset((void *)vdma_context->buffer_address, 0,
			vdma_context->ReadCfg.Stride * vdma_context->ReadCfg.VertSizeInput * vdma_context->InstancePtr->MaxNumFrames);
#endif
	return XST_SUCCESS;
}

/*****************************************************************************/
/**
*
* This function starts the DMA transfers. Since the DMA engine is operating
* in circular buffer mode, video frames will be transferred continuously.
*
* @param	InstancePtr points to the DMA engine instance
*
* @return
*		- XST_SUCCESS if both read and write start successfully
*		- XST_FAILURE if one or both directions cannot be started
*
* @note		None.
*
******************************************************************************/
static int StartTransfer(XAxiVdma *InstancePtr)
{
	int Status;
	/* Start the write channel of VDMA */
	Status = XAxiVdma_DmaStart(InstancePtr, XAXIVDMA_WRITE);
	if (Status != XST_SUCCESS) {
		xil_printf("Start Write transfer failed %d\r\n", Status);

		return XST_FAILURE;
	}
	/* Start the Read channel of VDMA */
	Status = XAxiVdma_DmaStart(InstancePtr, XAXIVDMA_READ);
	if (Status != XST_SUCCESS) {
		xil_printf("Start read transfer failed %d\r\n", Status);

		return XST_FAILURE;
	}

	return XST_SUCCESS;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462

vdma.c

/******************************************************************************
*
* Copyright (C) 2014 - 2018 Xilinx, Inc.  All rights reserved.
*
* Permission is hereby granted, free of charge, to any person obtaining a copy
* of this software and associated documentation files (the "Software"), to deal
* in the Software without restriction, including without limitation the rights
* to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the Software is
* furnished to do so, subject to the following conditions:
*
* The above copyright notice and this permission notice shall be included in
* all copies or substantial portions of the Software.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
* IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
* FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL
* THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
* LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
* OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
* THE SOFTWARE.
*
*
*
******************************************************************************/
/*****************************************************************************/
/**
 *
 * @file vdma.c
 *
 * This file comprises sample application to  usage of VDMA APi's in vdma_api.c.
 *  .
 *
 * MODIFICATION HISTORY:
 *
 * Ver   Who  Date     Changes
 * ----- ---- -------- -------------------------------------------------------
 * 4.0   adk  11/26/15 First release
 * 4.1   adk  01/07/16 Updated DDR base address for Ultrascale (CR 799532) and
 *		       removed the defines for S6/V6.
 *       ms   04/05/17 Modified Comment lines in functions to
 *                     recognize it as documentation block for doxygen
 *                     generation of examples.
 ****************************************************************************/

/*** Include file ***/
#include "xparameters.h"
#include "xstatus.h"
#include "xil_exception.h"
#include "xil_assert.h"
#include "xaxivdma.h"
#include "xaxivdma_i.h"
#include "xil_io.h"
#include
#include "xil_cache.h"

#ifdef XPAR_AXI_7SDDR_0_S_AXI_BASEADDR
#define MEMORY_BASE		XPAR_AXI_7SDDR_0_S_AXI_BASEADDR
#elif XPAR_MIG7SERIES_0_BASEADDR
#define MEMORY_BASE	XPAR_MIG7SERIES_0_BASEADDR
#elif XPAR_MIG_0_BASEADDR
#define MEMORY_BASE	XPAR_MIG_0_BASEADDR
#elif XPAR_PSU_DDR_0_S_AXI_BASEADDR
#define MEMORY_BASE	XPAR_PSU_DDR_0_S_AXI_BASEADDR
#else
#warning CHECK FOR THE VALID DDR ADDRESS IN XPARAMETERS.H, \
			DEFAULT SET TO 0x01000000
#define MEMORY_BASE		0x01000000
#endif

/*** Global Variables ***/
unsigned int srcBuffer = (MEMORY_BASE  + 0x1000000);
unsigned int destBuffer = (MEMORY_BASE + 0x2000000);

int run_triple_frame_buffer(XAxiVdma* InstancePtr, int DeviceId, int hsize,
		int vsize, int src_buf_base_addr, int dest_buf_base_addr, int number_frame_count,
		int enable_frm_cnt_intr);

/*****************************************************************************/
/**
* Main function
*
* This is main entry point to demonstrate this example.
*
* @return	None
*
******************************************************************************/

//void vdma_test(){
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x30, 0x4); //reset   S2MM VDMA Control Register
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x30, 0x8); //genlock
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0xAC, 0x08000000);//S2MM Start Addresses
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0xAC+4, 0x0A000000);
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0xAC+8, 0x09000000);
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0xA4, 16*3);//S2MM Horizontal Size
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0xA8, 0x01002000);//S2MM Frame Delay and Stride
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x30, 0x3);//S2MM VDMA Control Register
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0xA0, 16);//S2MM Vertical Size  start an S2MM transfer
//
//	//AXI VDMA1
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x0, 0x4); //reset   MM2S VDMA Control Register
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x0, 0x8); //gen-lock
//
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x5C,   0x08000000);   //MM2S Start Addresses
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x5C+4, 0x0A000000);
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x5C+8, 0x09000000);
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x54, 16*3);//MM2S HSIZE Register
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x58, 0x01002000);//S2MM FRMDELAY_STRIDE Register 1920*3=5760 ����֮��Ϊ8192=0x2000
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x0, 0x03);//MM2S VDMA Control Register
//	Xil_Out32(XPAR_AXI_VDMA_0_BASEADDR + 0x50, 16);//MM2S_VSIZE    ��������
//
//}

int main(){
	int Status;
	Xil_DCacheDisable();
	XAxiVdma InstancePtr;
    //
	printf("\n--- Entering main() --- \r\n");
	printf("Starting the VDMA \n\r");
	for(int i=0;i<16*16*3/4;i++){
		Xil_Out32(srcBuffer+i*4,(u32)i);
		Xil_Out32(destBuffer+i*4,(u32)0);
		u32 x=Xil_In32(destBuffer+i*4);
	    printf("%d\n",x);
	}
	Status = run_triple_frame_buffer(&InstancePtr, 0, 16, 16,
						srcBuffer, destBuffer, 1, 0);
    //
	if(Status != XST_SUCCESS) {
		xil_printf("Transfer of frames failed with error = %d\r\n",Status);
		return XST_FAILURE;
	}
	else {
		xil_printf("Transfer of frames started \r\n");
	}
	for(int i=0;i<16*16*3/4;i++){
		u32 x=Xil_In32(destBuffer+i*4);
		printf("%d\n",x);
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142

其中，函数

int run_triple_frame_buffer(XAxiVdma* InstancePtr, int DeviceId, int hsize,
		int vsize, int src_buf_base_addr, int dest_buf_base_addr, int number_frame_count,
		int enable_frm_cnt_intr);
1
2
3

用于启动vdma传输，这里，hsize是图像的宽度，vsize是图像的高度，src_buf_base_addr和dest_buf_base_addr分别是读通道起始地址和写通道起始地址。

实验与观察

将SDK程序烧写至开发板，串口打印如下：

可以看到，VDMA成功将srcBuffer处的数据搬运至了destBuffer,表明我们搭建的回环测试硬件平台无误。
实时抓取的波形如下

可以看到，图像的第一个数据，tuser信号为高

上图中，共有16行数据，每一行的最后一个数据在发送时，tlast信号也需要拉高。
上述两点也是AXI VDMA和AXI DMA的区别。
