Flume监听多个文件目录，并根据文件名称不同，输出到kafka不同topic中
一、Flume监听多个文件目录
1. flume的环境搭建和基础配置参考
https://blog.csdn.net/qinqinde123/article/details/128130131
2. 修改配置文件flume-conf.properties
#定义两个是数据源source1、source2 agent.sources = source1 source2 agent.channels = channel1 agent.sinks = sink1 #数据源source1：监听/home/sxvbd/bigdata/flumeTestDir目录 agent.sources.source1.type = spooldir agent.sources.source1.spoolDir = /home/sxvbd/bigdata/flumeTestDir # 文件名带路径，header中key=filePath agent.sources.source1.fileHeader = true agent.sources.source1.fileHeaderKey = filePath # 文件名不带路径，header中key=fileName agent.sources.source1.basenameHeader = true agent.sources.source1.basenameHeaderKey = fileName #数据源source2：监听/home/sxvbd/bigdata/flumeTestDir/temp目录· agent.sources.source2.type = spooldir agent.sources.source2.spoolDir = /home/sxvbd/bigdata/flumeTestDir/temp # 文件名带路径，header中key=filePaht agent.sources.source2.fileHeader = true agent.sources.source2.fileHeaderKey = filePath # 文件名不带路径，header中key=fileName agent.sources.source2.basenameHeader = true agent.sources.source2.basenameHeaderKey = fileName #定义一个channel agent.channels.channel1.type = memory agent.channels.channel1.capacity = 1000000 agent.channels.channel1.transactionCapacity = 10000 agent.channels.channel1.keep-alive = 60 #重写sink，根据文件名称不同，推送到不同topic中 agent.sinks.sink1.type = com.demo.flume.LogToDiffentKafkaTopic agent.sinks.sink1.kafka.bootstrap.servers = node24:9092,node25:9092,node26:9092 agent.sinks.sink1.parseAsFlumeEvent = false #定义source channel sink的关系 agent.sources.source1.channels = channel1 agent.sources.source2.channels = channel1 agent.sinks.sink1.channel = channel1- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
二、重写Sink，根据文件名称不同，消息发送到不同的topic中
flume监听到有新文件出现的时候，会将文件内容推送到kakfa的topic中，但是如果文件夹中有不同类型的文件，直接推送到kafka的同一个topic中，如果根据内容无法区分不同类型的文件，那就需要根据文件名称来区分。flume本身根据配置无法实现，只能通过重写Sink，根据文件名称，将内容推送到kafka的不同topic。
看了一下官网的开发文档,要想自定义一个Sink也很简单,只需要继承一个抽象类 AbstractSink 和一个用于接收配置参数的接口 Configurable 即可.然后呢就需要实现两个方法一个就是public Status process() throws EventDeliveryException {}这个方法会被多次调用,反复执行,也就是通过它来实时的获取Channel流出来的数据;第二个就是public void configure(Context context) {} 这个方法主要是通过传入的这个Contex上下文对象.来个获取配置文件中的参数,一些初始化的工作可以写在这个方法里面.1.创建springboot项目LogToDiffentKafkaTopic
2.pom.xml中引入flume相关依赖
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.demo</groupId> <artifactId>flume</artifactId> <version>1.0</version> <properties> <maven.compiler.source>8</maven.compiler.source> <maven.compiler.target>8</maven.compiler.target> <java.version>1.8</java.version> </properties> <dependencies> <!--Flume 依赖--> <dependency> <groupId>org.apache.flume</groupId> <artifactId>flume-ng-core</artifactId> <version>1.9.0</version> </dependency> <dependency> <groupId>org.apache.flume</groupId> <artifactId>flume-ng-configuration</artifactId> <version>1.9.0</version> </dependency> <!--Kafka 依赖--> <dependency> <groupId>org.apache.kafka</groupId> <artifactId>kafka-clients</artifactId> <version>2.4.1</version> </dependency> <dependency> <groupId>org.apache.kafka</groupId> <artifactId>kafka_2.11</artifactId> <version>2.4.1</version> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-nop</artifactId> <version>1.7.30</version> </dependency> </dependencies> <!--构建--> <build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <configuration> <source>${java.version}</source> <target>${java.version}</target> <encoding>UTF-8</encoding> </configuration> </plugin> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
3. 创建一个类LogToDiffentKafkaTopic.java，继承自AbstractSink
public class LogToDiffentKafkaTopic extends AbstractSink implements Configurable { private MessageClassifier messageClassifier; @Override public Status process() throws EventDeliveryException { System.out.println("========>process"); Status status = null; Channel channel = getChannel(); Transaction transaction = channel.getTransaction(); transaction.begin(); try{ Event event = channel.take(); if (event == null){ transaction.rollback(); status = Status.BACKOFF; return status; } System.out.println("========>event:" + event.toString()); //根据配置文件中定义的agent.sources.source1.basenameHeader = true和agent.sources.source1.basenameHeaderKey = fileName获取文件名称 String fileName = event.getHeaders().get("fileName"); byte[] body = event.getBody(); final String msg = new String(body); System.out.println("========>msg:" + msg.toString()); status = messageClassifier.startClassifier(msg, fileName) ; // 提交事务 transaction.commit(); }catch (Exception e){ transaction.rollback(); e.printStackTrace(); status = Status.BACKOFF; }finally { transaction.close(); } return status; } @Override public void configure(Context context) { ImmutableMap<String, String> parameters = context.getParameters(); //启动的时候，从配置文件flume-conf.properties中读取的配置信息 System.out.println("========>parameters: " + parameters.toString()); Properties properties = new Properties(); properties.put("bootstrap.servers", context.getString("kafka.bootstrap.servers", "localhost:9092")); properties.put("acks", context.getString("acks", "all")); properties.put("retries", Integer.parseInt(context.getString("retries", "0"))); properties.put("batch.size", Integer.parseInt(context.getString("batch.size", "16384"))); properties.put("linger.ms", Integer.parseInt(context.getString("linger.ms", "1"))); properties.put("buffer.memory", Integer.parseInt(context.getString("buffer.memory", "33554432"))); properties.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer"); properties.put("value.serializer", "org.apache.kafka.common.serialization.StringSerializer"); messageClassifier = new MessageClassifier(properties); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
4. 创建一个类MessageClassifier.java，继承自AbstractSink
public class MessageClassifier { /*文件名称中包含_CDSS_,则消息推送到data-ncm-hljk-cdss-topic*/ private static final String HJSJ_SSSJ_CDSS = ".*_CDSS_.*"; private static final String HJSJ_SSSJ_CDSS_TOPIC = "data-ncm-hljk-cdss-topic"; /*文件名称中包含_FZSS_,则消息推送到data-ncm-hljk-fzss-topic*/ private static final String HJSJ_SSSJ_FZSS = ".*_FZSS_.*"; private static final String HJSJ_SSSJ_FZSS_TOPIC = "data-ncm-hljk-fzss-topic"; private final KafkaProducer<String, String> producer; public MessageClassifier(Properties kafkaConf) { producer = new KafkaProducer<>(kafkaConf); } public Sink.Status startClassifier(String msg, String fileName) { System.out.println("===========>msg: " + msg); System.out.println("===========>fileName: " + fileName); try { if (Pattern.matches(HJSJ_SSSJ_CDSS, fileName)) { System.out.println("===========>HJSJ_SSSJ_CDSS"); producer.send(new ProducerRecord<>(HJSJ_SSSJ_CDSS_TOPIC, msg)); } else if (Pattern.matches(HJSJ_SSSJ_FZSS, fileName)) { System.out.println("===========>HJSJ_SSSJ_FZSS"); producer.send(new ProducerRecord<>(HJSJ_SSSJ_FZSS_TOPIC, msg)); } } catch (Exception e) { e.printStackTrace(); System.out.println("===========>exception: " + e.getMessage()); return Sink.Status.BACKOFF; } return Sink.Status.READY; } }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
5. 打jar包: flume-1.0.jar
mvn clean install -DskipTests- 1
6. 在flume的安装目录下创建plugins.d目录
mkdir -p /home/sxvbd/bigdata/flume-1.9.0/plugins.d- 1
7. 在plugins.d目录下创建一个目录(名字任意，例如demo)
mkdir -p /home/sxvbd/bigdata/flume-1.9.0/plugins.d/demo- 1
8. 在demo目录下创建两个目录：lib和libext
mkdir -p /home/sxvbd/bigdata/flume-1.9.0/plugins.d/demo/lib mkdir -p /home/sxvbd/bigdata/flume-1.9.0/plugins.d/demo/libext- 1
- 2
9. 将jar包上传到lib目录下(libext不用管)
10. 在配置文件flume-conf.properties中配置自定义sink
#Each channel's type is defined. agent.sinks.sink1.type = com.demo.flume.LogToDiffentKafkaTopic agent.sinks.sink1.kafka.bootstrap.servers = node24:9092,node25:9092,node26:9092 agent.sinks.sink1.parseAsFlumeEvent = false- 1
- 2
- 3
- 4
11.启动
nohup ../bin/flume-ng agent --conf conf -f /home/sxvbd/bigdata/flume-1.9.0/conf/flume-conf.properties -n agent -Dflume.root.logger=INFO,console > flume.log 2>&1 &- 1
12.在对应的目录下拖入文件
目录/home/sxvbd/bigdata/flumeTestDir/和目录/home/sxvbd/bigdata/flumeTestDir/temp- 1

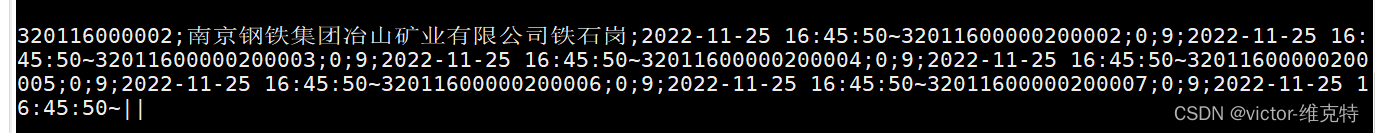

13.监听kafka的topic
-
