【WSN布局】基于LICHTENBERG算的多目标传感器选择和放置优化问题研究附matlab代码

✅作者简介：热爱科研的Matlab仿真开发者，修心和技术同步精进，matlab项目合作可私信。

🍎个人主页：Matlab科研工作室

🍊个人信条：格物致知。

更多Matlab仿真内容点击👇

智能优化算法  神经网络预测 雷达通信  无线传感器

信号处理 图像处理 路径规划 元胞自动机 无人机  电力系统

⛄ 内容介绍

随着无线传感器网络(Wireless Sensor Network,WSN)技术的不断发展,越来越多的WSN技术已经应用到了智能家居,智慧交通等领域.WSN属于一种重要的ad hoc网络,它由很多具有感知和数据处理能力的传感节点以自组织或多跳的方式搭建.目前,WSN的研究工作主要集中在网络技术和通信协议方面,关于传感器网络部署优化的研究还很少.在空旷的农场或森林部署WSN,一般做法是通过飞机进行高空随机抛撒.但是,这种方法可能出现大量的多余节点和覆盖漏洞.因此,如何用尽量少的传感节点感知最大的区域是WSN部署优化中一个亟待研究的问题.在广阔的农场环境或森林中,需要准备许多传感节点,节点大部分靠电池供电,但是,电池能量是有限的,并且无法更换.因此,如何使用相同数量的节点,达到最长的网络寿命成为WSN部署优化中另一个倍受瞩目的问题.

⛄ 部分代码

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%

%           Multi-objective Sensor Selection Optimization based on

%                      Lichtenberg Algorithm (MOSSOLA)

%

%         AUTHORS: Jo茫o Luiz Junho Pereira and Guilherme Ferreira Gomes

%

%         A Hybrid PHYSICS-based Multi-objective Metaheuristic with

%         Feature Selection for Sensor Placement Optimization (SPO)

%

%   Please cite this algorithm as:

%

% Pereira, J.L.J., Francisco, M.B., Souza Chaves, J. A., Sebasti茫o Sim玫es Cunha Jr & Gomes, G. F.

% Multi-objective sensor placement optimization of helicopter rotor blade based on feature selection.

% Mechanical Systems and Signal Processing. 2022.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

close all

clear all

clc

format long

warning off

set(0,'DefaultAxesFontName', 'Times New Roman')

set(0,'DefaultAxesFontSize', 12)

set(0,'DefaultTextFontname', 'Times New Roman')

set(0,'DefaultTextFontSize', 12)

opengl('save', 'software')

% Importing natural frequencies in FEM structure (Main Rotor Blade - MRB)

F=importdata('natural_frequencies.txt');

wn1=F.data(1:9,2); wn = [wn1(1) wn1(2) wn1(3) wn1(4) wn1(6) wn1(9)];

% Importing All sensor candidates from FEM structure (34 well spaced nodes

% in MRB)

S=importdata('Sensors.txt');

% Importing mode shapes in FEM structure (MRB)

M1=importdata('Mode1.txt'); M1x=M1.data(:,5); M1y=M1.data(:,6);M1z=M1.data(:,7);

M2=importdata('Mode2.txt'); M2x=M2.data(:,5); M2y=M2.data(:,6);M2z=M2.data(:,7);

M3=importdata('Mode3.txt'); M3x=M3.data(:,5); M3y=M3.data(:,6);M3z=M3.data(:,7);

M4=importdata('Mode4.txt'); M4x=M4.data(:,5); M4y=M4.data(:,6);M4z=M4.data(:,7);

M6=importdata('Mode6.txt'); M6x=M6.data(:,5); M6y=M6.data(:,6);M6z=M6.data(:,7);

M9=importdata('Mode9.txt'); M9x=M9.data(:,5); M9y=M9.data(:,6);M9z=M9.data(:,7);

% Calculating Total displacements (triaxial)

M1T = sqrt(M1x.^2+M1y.^2+M1z.^2); M2T = sqrt(M2x.^2+M2y.^2+M2z.^2); M3T = sqrt(M3x.^2+M3y.^2+M3z.^2);

M4T = sqrt(M4x.^2+M4y.^2+M4z.^2); M6T = sqrt(M6x.^2+M6y.^2+M6z.^2); M9T = sqrt(M9x.^2+M9y.^2+M9z.^2);

Modos = [M1T M2T M3T M4T M6T M9T];

% Optimizator Parameters

UB = ones(1,length(S)); % Uper bounds

LB = 0*UB;              % lower bounds

pop = 100;              % Population

n_iter = 100;           % Max number os iterations/gerations

ref = 0.4;              % if more than zero, a second LF is created with refinement % the size of the other

Np = 100000;            % Number of Particles (If 3D, better more than 10000)

S_c = 1;                % Stick Probability: Percentage of particles that can don麓t stuck in the

                        % cluster. Between 0 and 1. Near 0 there are more aggregate, the density of

                        % cluster is bigger and difusity is low. Near 1 is the opposite.

Rc = 150;               % Creation Radius (if 3D, better be less than 80, untill 150)

M = 0;                  % If M = 0, no lichtenberg figure is created (it is loaded a optimized figure); if 1, a single is created and used in all iterations; If 2, one is created for each iteration.(creating an LF figure takes about 2 min)

d = length(UB);         % problem dimension

ngrid = 30;             % Number of grids in each dimension

Nr = 100;               % Maximum number of solutions in PF

% Sensor Placement Optimization Parameters

C = 1;                 % METRIC USED (KE=1;EfI=2,ADPR=3;EVP=4;IE=5;FIM=6;MAC=7)

NS = 6;                % Sensor Congiguration solution with NS sensors (select from PARETO FRONT after optimization with all sensors numbers)

[x,fval] = LA_optimization(@(x)objectives(x,Modos,S,wn,C),d,pop,LB,UB,ref,n_iter,Np,Rc,S_c,M,ngrid,Nr,@constraint);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%PARETO FRONT FIGURE%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

% figure

% plot(fval(:,1),fval(:,2),'ZDataSource','',...

%     'MarkerFaceColor',[0 0 1],...

%     'MarkerEdgeColor',[0 0 0],...

%     'MarkerSize',4,...

%     'Marker','o',...

%     'LineWidth',0.1,...

%     'LineStyle','none',...

%     'Color',[0 0 0]);

% hold on

% box on

% %plot(fval(best_pos,1),fval(best_pos,2),'MarkerFaceColor',[1 1 0],'MarkerSize',14,'Marker','pentagram','LineWidth', 0.2, 'LineStyle','none','Color',[0 0 0]);

% %legend('PF','TOPSIS');

% % set(0,'DefaultAxesFontSize', 10)

% % set(0,'DefaultTextFontSize', 10)

% set(findall(gcf,'-property','FontName'),'FontName','Italic')

% set(findall(gcf,'-property','FontAngle'),'FontAngle','italic')

% set(gcf,'position',[200,200,350,200])

% %title('Non-dominated solutions','fontweight','bold');

% % axis([0 -0.01 0 30])

% xlabel('J=max(diag(MAC))')

% ylabel('Number of Sensors')

%%%%%%%%%%%%%%%%%%%%%%%%%%%TO CALCULATE HYPERVOLUME%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

% Simulation = 0;

% for i =1:10

%  Simulation = Simulation + 1

% [x,fval] = LA_optimization(@(x)objectives(x,Modos,S,wn,C),d,pop,LB,UB,ref,n_iter,Np,Rc,S_c,M,ngrid,Nr,@constraint);

% HV_Score(i) = HV(fval,length(S))

% end

%

% mean(HV_Score)

%%%%%%%%%%%%%%%%%%%%%%%%TO PLOT THE SELECTED SENSORS IN STRUCTURE%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

x = round(x);

for i = 1 : length(x)

P(i) = sum(x(i,:));

end

best_pos=find(P==NS);

Xbest = round(x(best_pos,:));

for i=1:length(S)

   SLCT(i) = S(i)*Xbest(1,i);

end

SLCT(find(SLCT==0))=[];

FITNESS = fval(best_pos,:);

NUMBERofSENSORS = FITNESS(1,2)

METRICfitness = FITNESS(1,1)

SENSORS = SLCT

ALLNODES = importdata('NODES.txt'); %ALL NODES IN FEM STRUCTURE (TO PLOT STRUCTURAL FIGURE)

NODES = [ALLNODES(:,2) ALLNODES(:,3)];

theta = -90; % to structure figure rotate in 90掳 counterclockwise

R = [cosd(theta) -sind(theta); sind(theta) cosd(theta)];

C = (R*NODES')';

%Sensor Points

for i = 1 : length(SENSORS)

    PS(i,:) = [C(SENSORS(i),1) C(SENSORS(i),2)];

end

%Plot

figure

plot(C(:,1),C(:,2),'.k')

hold on

plot(PS(:,1),PS(:,2),'ZDataSource','',...

    'MarkerFaceColor',[1 0 0],...

    'MarkerEdgeColor',[1 0 0],...

    'MarkerSize',8,...

    'Marker','o',...

    'LineWidth',0.1,...

    'LineStyle','none',...

    'Color',[1 0 0]);

axis equal

axis([-1 5.2 -0.5 0.2])

set(gcf,'position',[200,200,900,300])

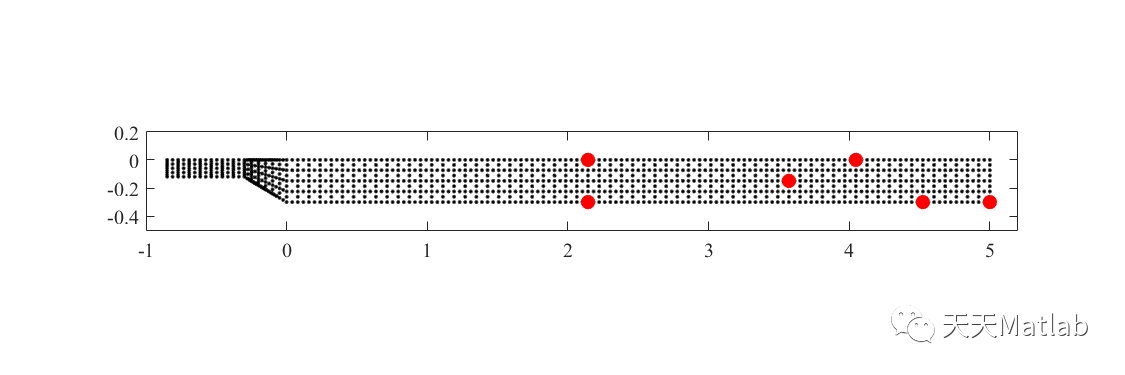

⛄ 运行结果
