• 性能测试-CPU性能分析，用户态us高，初步定位到代码行

    监控工具安装

    Grafana:安装请看我上一篇文章性能测试-JMeter influxdb grafana性能测试监控平台-食用指南_Tommy.IT的博客-CSDN博客JMeter测试脚本跑起来，在influxdb服务看看数据里面的数据，原来influxdb的jmeter库里面没有表，当JMeter脚本运行的时候，influxdb会自动创建好表并有数据写入。grafana influxdb模板id：5496，可以下载为json，在grafana里面再导入也可以。成功打开grafana首页，提示一下如果进入不了，要关闭linux的防火墙。添加模板页面：数据库名称：influxdb，其他默认，点击import。measurements:jmeter，表的名字，默认。https://blog.csdn.net/qq_30864373/article/details/127736953

    node_exporter：Download | Prometheus

    node_exporter-1.4.0.linux-amd64.tar.gz

    在被监控的机器上面安装，多台服务器的话，就安装多个node_exporter，并启动完成

    启动node_exporter:[root@centos7 node_exporter-1.4.0.linux-amd64]# nohup ./node_exporter &

    [root@centos7 node_exporter-1.4.0.linux-amd64]# nohup node_exporter &
    [1] 30117


    [root@centos7 node_exporter-1.4.0.linux-amd64]# nohup: 忽略输入并把输出追加到"nohup.out"


    nohup: 无法运行命令"node_exporter": 没有那个文件或目录


    无法运行命令"node_exporter": 没有那个文件或目录：通常应该是有重复开启了,先查询一下

    ps -ef |grep node

    prometheus：https://github.com/prometheus/prometheus/releases/download/v2.40.3/prometheus-2.40.3.linux-amd64.tar.gz

    prometheus-2.40.3.linux-amd64.tar.gz ，解压后，需要修改prometheus.yml文件，修改的时候需要注意job_name与static_configs之间的缩进，不然会报错的！

    yaml: unmarshal errors:\n  line 30: field static_configs already set in type config.ScrapeConfig\n  line 33: field static_configs already set in type config.ScrapeConfig

     prometheus.yml文件修改如下，配置要监听的服务器地址，如果有多个服务器地址： - targets: ["l192.168.1.156:9100",192.168.1.157:9200]

        static_configs:
          - targets: ["localhost:9090"]

      - job_name: "node"
        static_configs:
          - targets: ["192.168.1.156:9100"]

      - job_name: "jvm"
        static_configs:
          - targets: ["192.168.1.156:3388"]

    1. # my global config
    2. global:
    3.   scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
    4.   evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
    5.   # scrape_timeout is set to the global default (10s).
    6.
    7. # Alertmanager configuration
    8. alerting:
    9.   alertmanagers:
    10.     - static_configs:
    11.         - targets:
    12.           # - alertmanager:9093
    13.
    14. # Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
    15. rule_files:
    16.   # - "first_rules.yml"
    17.   # - "second_rules.yml"
    18.
    19. # A scrape configuration containing exactly one endpoint to scrape:
    20. # Here it's Prometheus itself.
    21. scrape_configs:
    22.   # The job name is added as a label `job=` to any timeseries scraped from this config.
    23.   - job_name: "prometheus"
    25.     # metrics_path defaults to '/metrics'
    26.     # scheme defaults to 'http'.
    28.     static_configs:
    29.       - targets: ["localhost:9090"]
    31.   - job_name: "node"
    32.     static_configs:
    33.       - targets: ["192.168.1.156:9100"]
    35.   - job_name: "jvm"
    36.     static_configs:
    37.       - targets: ["192.168.1.156:3388"]

     编辑完prometheus.yml后，启动prometheus,没有报错就可以了，用nohup ./prometheus & 后台启动

    1. [root@centos7 prometheus-2.40.3.linux-amd64]# vim ./prometheus.yml
    2. [root@centos7 prometheus-2.40.3.linux-amd64]# ./prometheus
    3. ts=2022-11-27T18:14:06.505Z caller=main.go:512 level=info msg="No time or size retention was set so using the default time retention" duration=15d
    4. ts=2022-11-27T18:14:06.505Z caller=main.go:556 level=info msg="Starting Prometheus Server" mode=server version="(version=2.40.3, branch=HEAD, revision=84e95d8cbc51b89f1a69b25dd239cae2a44cb6c1)"
    5. ts=2022-11-27T18:14:06.505Z caller=main.go:561 level=info build_context="(go=go1.19.3, user=root@72aff466572b, date=20221124-09:08:44)"
    6. ts=2022-11-27T18:14:06.505Z caller=main.go:562 level=info host_details="(Linux 3.10.0-1160.80.1.el7.x86_64 #1 SMP Tue Nov 8 15:48:59 UTC 2022 x86_64 centos7 (none))"
    7. ts=2022-11-27T18:14:06.505Z caller=main.go:563 level=info fd_limits="(soft=4096, hard=4096)"
    8. ts=2022-11-27T18:14:06.505Z caller=main.go:564 level=info vm_limits="(soft=unlimited, hard=unlimited)"
    9. ts=2022-11-27T18:14:06.506Z caller=web.go:559 level=info component=web msg="Start listening for connections" address=0.0.0.0:9090
    10. ts=2022-11-27T18:14:06.507Z caller=main.go:993 level=info msg="Starting TSDB ..."
    11. ts=2022-11-27T18:14:06.509Z caller=head.go:562 level=info component=tsdb msg="Replaying on-disk memory mappable chunks if any"
    12. ts=2022-11-27T18:14:06.509Z caller=head.go:606 level=info component=tsdb msg="On-disk memory mappable chunks replay completed" duration=4.645µs
    13. ts=2022-11-27T18:14:06.509Z caller=head.go:612 level=info component=tsdb msg="Replaying WAL, this may take a while"
    14. ts=2022-11-27T18:14:06.512Z caller=tls_config.go:232 level=info component=web msg="Listening on" address=[::]:9090
    15. ts=2022-11-27T18:14:06.512Z caller=tls_config.go:235 level=info component=web msg="TLS is disabled." http2=false address=[::]:9090
    16. ts=2022-11-27T18:14:06.513Z caller=head.go:683 level=info component=tsdb msg="WAL segment loaded" segment=0 maxSegment=1
    17. ts=2022-11-27T18:14:06.514Z caller=head.go:683 level=info component=tsdb msg="WAL segment loaded" segment=1 maxSegment=1
    18. ts=2022-11-27T18:14:06.514Z caller=head.go:720 level=info component=tsdb msg="WAL replay completed" checkpoint_replay_duration=14.183µs wal_replay_duration=4.687682ms wbl_replay_duration=121ns total_replay_duration=4.719326ms
    19. ts=2022-11-27T18:14:06.515Z caller=main.go:1014 level=info fs_type=XFS_SUPER_MAGIC
    20. ts=2022-11-27T18:14:06.515Z caller=main.go:1017 level=info msg="TSDB started"
    21. ts=2022-11-27T18:14:06.515Z caller=main.go:1197 level=info msg="Loading configuration file" filename=prometheus.yml
    22. ts=2022-11-27T18:14:06.519Z caller=main.go:1234 level=info msg="Completed loading of configuration file" filename=prometheus.yml totalDuration=3.68688ms db_storage=2.02µs remote_storage=2.83µs web_handler=189ns query_engine=433ns scrape=3.42652ms scrape_sd=33.153µs notify=16.474µs notify_sd=4.906µs rules=2.199µs tracing=10.114µs
    23. ts=2022-11-27T18:14:06.519Z caller=main.go:978 level=info msg="Server is ready to receive web requests."
    24. ts=2022-11-27T18:14:06.519Z caller=manager.go:944 level=info component="rule manager" msg="Starting rule manager..."

    再重启以下grafana

    [root@centos7 prometheus-2.40.3.linux-amd64]# systemctl restart grafana-server

    grafana配置prometheus

    选择prometheus数据源，以及配置好grafana服务地址





    导入一个模板：11074

     数据源prometheus

     Grafana监控平台结果

    top：java进程的%CPU高，us用户态比sy系统态要高，所有java的us用户态导致，系统负载升高

    Arthas-Alibaba 开源的 Java 诊断、性能分析工具

     Arthas-安装

    下载arthas-boot.jar，然后用java -jar的方式启动：

    将arthas-boot.jar下载到指定文件夹中，并启动java -jar arthas-boot.jar，执行后会显示目前系统中的java项目有哪些，并以数字开头排序好，我们只需要输入对应项目的编号就可以了

    1. curl -O https://arthas.aliyun.com/arthas-boot.jar
    2. java -jar arthas-boot.jar

    ​

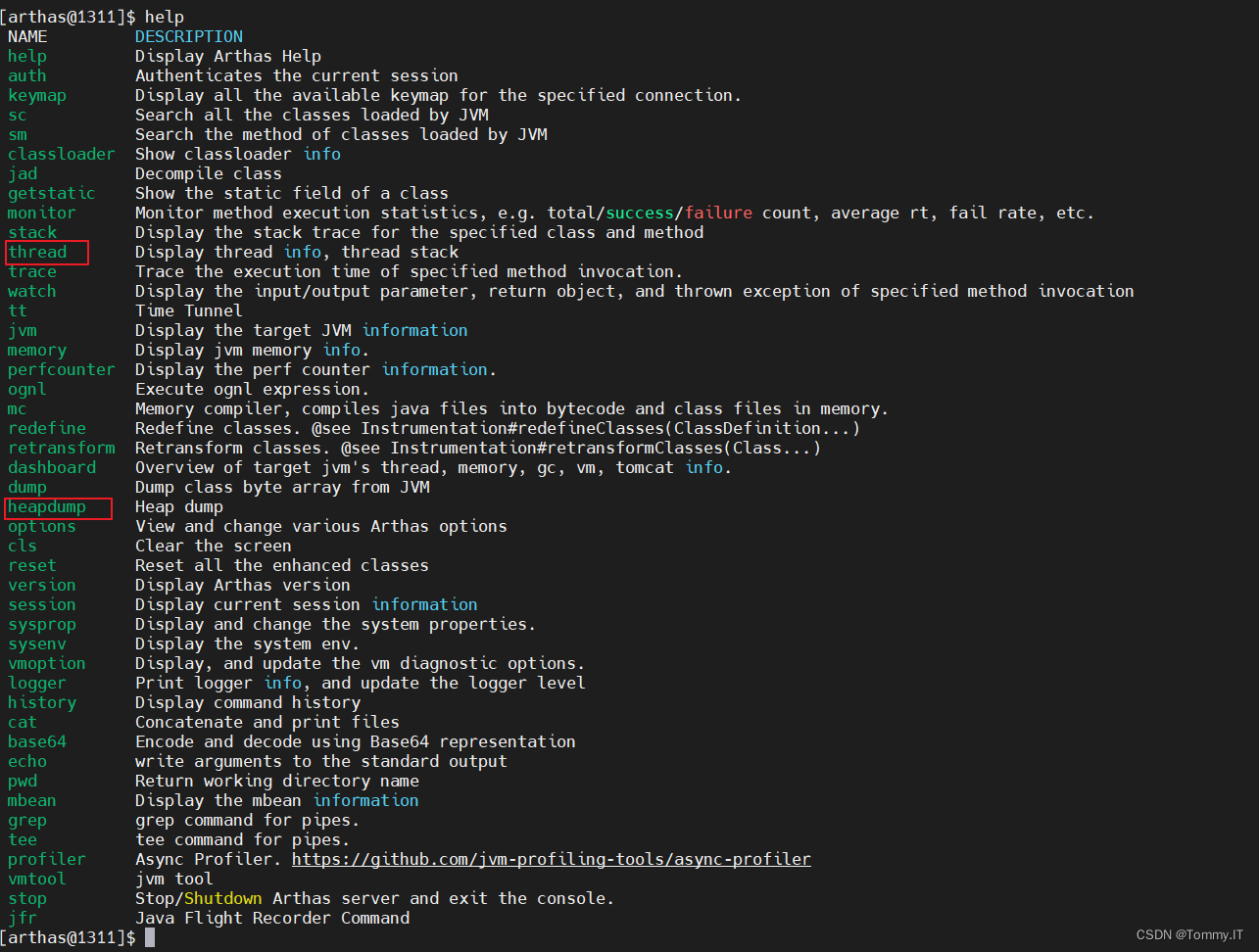

     启动完成后，自动进入arthas监控工具，输入help回车，查看帮助文档

    arthas-thread、heapdump

    heapdump，Heap dump（堆）

    thread --help,具体查看使用方法

    thread，线程，Display thread info, thread stack（栈

     线程，程序里面真正干活的

    线程栈，每个干活的线程具体的工作是什么

    thread 显示所有线程

    ​

     thread -n 5，，显示占用多资源的前5个线程和线程栈信息，发现有问题，UserController.java

    ​
