kettle 9.2源码打包和idea环境启动及常见错误

一：源码打包
这里为什么是kettle 9.2，因为kettle 9.3+需要jdk11
这里直接去下载kettle的源码，tag=9.2.0.4-R。这里需要自己搭建一个nexus仓库，因为有些包从kettle的仓库里面下载不下来。

nexus新建仓库代理, 记得加到public里面去

https://repo.orl.eng.hitachivantara.com/artifactory/pnt-mvn/
1

完整的settings.xml

<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">


  <localRepository>D:/tools/maven/apache-maven-3.6.3/conf/repositorylocalRepository>






  <pluginGroups>


    <pluginGroup>org.pentaho.maven.pluginspluginGroup>
    <pluginGroup>com.pentaho.maven.pluginspluginGroup>
    <pluginGroup>com.github.spotbugspluginGroup>
  pluginGroups>


  <proxies>

  proxies>


  <servers>




    <server>
      <id>pentaho-publicid>
      <username>devreaduserusername>
      <password>{zIMyJWfHKfoHiBJAVsAgW4E5BcJzR+nhTtgPy0J+/rs=}password>
    server>
  servers>


  <mirrors>


    <mirror>
      <id>mirrorIdid>
      <mirrorOf>*mirrorOf>
      <name>maven-publicname>
      <url>http://172.16.30.203:8081/repository/maven-public/url>
    mirror>
  mirrors>


  <profiles>




    <profile>
      <id>nexusid>
      <repositories>
        <repository>
          <id>nexus-snapshotsid>
          <url>http://172.16.30.203:8081/repository/maven-snapshots/url>
          <releases>
            <enabled>falseenabled>
          releases>
          <snapshots>
            <enabled>trueenabled>
            <updatePolicy>alwaysupdatePolicy>
          snapshots>
        repository>
        <repository>
          <id>nexus-releasesid>
          <url>http://172.16.30.203:8081/repository/maven-releases/url>
          <releases>
            <enabled>trueenabled>
          releases>
          <snapshots>
            <enabled>falseenabled>
          snapshots>
        repository>
      repositories>
      <pluginRepositories>
        <pluginRepository>
          <id>snapshotsid>
          <url>http://172.16.30.203:8081/repository/maven-snapshots/url>
          <releases>
            <enabled>falseenabled>
          releases>
          <snapshots>
            <enabled>trueenabled>
            <updatePolicy>alwaysupdatePolicy>
          snapshots>
        pluginRepository>
        <pluginRepository>
          <id>nexus-releasesid>
          <url>http://172.16.30.203:8081/repository/maven-releases/url>
          <releases>
            <enabled>trueenabled>
          releases>
          <snapshots>
            <enabled>falseenabled>
          snapshots>
        pluginRepository>
      pluginRepositories>
    profile>

  profiles>



  <activeProfiles>
    <activeProfile>nexusactiveProfile>
  activeProfiles>

settings>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332

idea导入kettle，等待下载maven依赖，慢慢等，需要很长的时间。

这个包在kettle的远程仓库也没有，可以直接去掉

有些包在kettle的远程仓库有，但是下载不下来，解决方案是手动下载，然后上传到自己的maven仓库


这里需要删除本地的文件，上传再重新下载

maven依赖下载成功了，idea上maven依赖还是红色的，这是idea的bug，解决方案为pom.xml去掉依赖，maven刷新，再加上依赖，maven刷新。

maven依赖下载成功，打包一般没问题


解压，双击Spoob.bat即可使用

二：idea开发环境启动

新建application

• 错误一

java.lang.UnsatisfiedLinkError: Could not load SWT library. Reasons:
	no swt-gtk-4623 in java.library.path
	no swt-gtk in java.library.path
	Can't load library: C:\Users\Administrator\.swt\lib\win32\x86_64\swt-gtk-4623.dll
	Can't load library: C:\Users\Administrator\.swt\lib\win32\x86_64\swt-gtk.dll
1
2
3
4
5

解决办法：

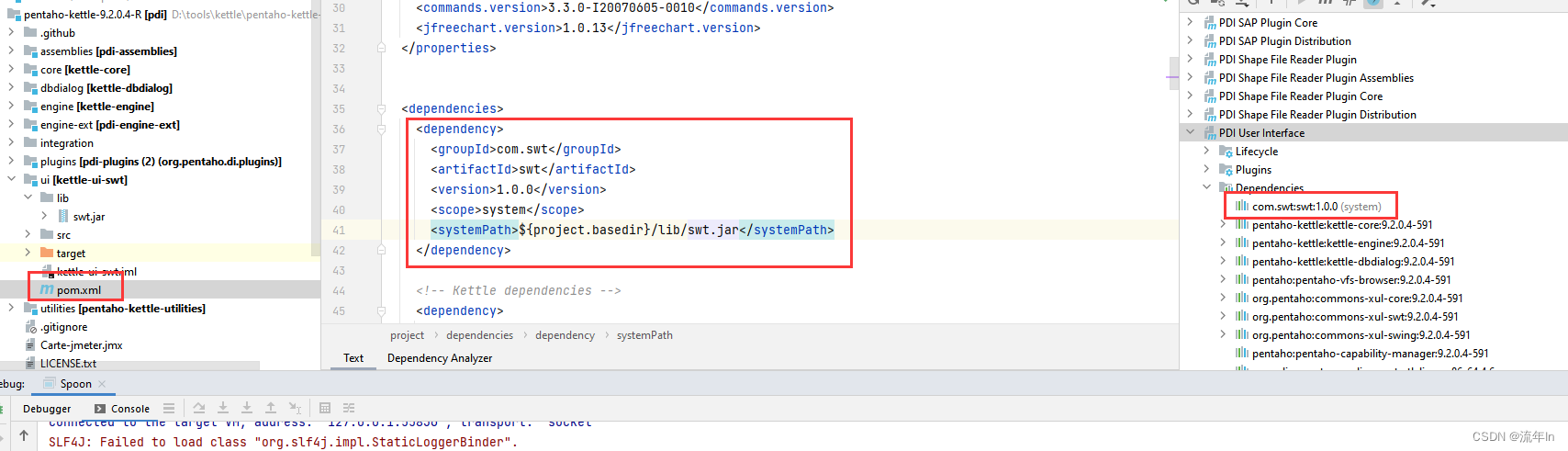

然后在ui的pom.xml添加依赖

<dependency>
      <groupId>com.swtgroupId>
      <artifactId>swtartifactId>
      <version>1.0.0version>
      <scope>systemscope>
      <systemPath>${project.basedir}/lib/swt.jarsystemPath>
dependency>
1
2
3
4
5
6
7

• 错误二：

org.pentaho.di.core.exception.KettleException:
Unable to find plugin with ID 'Kettle'.  If this is a test, make sure kettle-core tests jar is a dependency.  If this is live make sure a kettle-password-encoder-plugins.xml exits in the classpath

	at org.pentaho.di.core.encryption.Encr.init(Encr.java:61)
	at org.pentaho.di.core.KettleClientEnvironment.init(KettleClientEnvironment.java:124)
	at org.pentaho.di.core.KettleClientEnvironment.init(KettleClientEnvironment.java:80)
	at org.pentaho.di.core.KettleEnvironment.init(KettleEnvironment.java:134)
	at org.pentaho.di.core.KettleEnvironment.init(KettleEnvironment.java:101)
	at org.pentaho.di.core.KettleEnvironment.init(KettleEnvironment.java:82)
	at org.pentaho.di.ui.spoon.Spoon$1.call(Spoon.java:643)
1
2
3
4
5
6
7
8
9
10

• 错误三：

2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : Error initializing transformation
2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : org.pentaho.ui.xul.XulException: Can not locate Xul document [ui/spoon.xul]
2022/11/23 18:23:44 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.findDocument(AbstractXulLoader.java:512)
2022/11/23 18:23:44 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:229)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.init(Spoon.java:870)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.createContents(Spoon.java:9352)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.create(Window.java:431)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.open(Window.java:788)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9383)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:711)
2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : Error starting Spoon shell
2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : java.lang.NullPointerException
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.init(Spoon.java:923)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.createContents(Spoon.java:9352)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.create(Window.java:431)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.open(Window.java:788)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9383)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:711)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

• 错误四

2022/11/23 18:27:07 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:27:05.372 by Administrator) : Error starting Spoon shell
2022/11/23 18:27:07 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:27:05.372 by Administrator) : java.lang.NoClassDefFoundError: org/jaxen/JaxenException
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.preProcess(AbstractXulLoader.java:357)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:113)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.swt.SwtXulLoader.loadXul(SwtXulLoader.java:128)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.swt.SwtXulLoader.loadXul(SwtXulLoader.java:122)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:239)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.init(Spoon.java:870)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.createContents(Spoon.java:9352)
2022/11/23 18:27:07 - General - 	at org.eclipse.jface.window.Window.create(Window.java:431)
2022/11/23 18:27:07 - General - 	at org.eclipse.jface.window.Window.open(Window.java:788)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9383)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:711)
2022/11/23 18:27:07 - General - Caused by: java.lang.ClassNotFoundException: org.jaxen.JaxenException
2022/11/23 18:27:07 - General - 	at java.net.URLClassLoader.findClass(URLClassLoader.java:382)
2022/11/23 18:27:07 - General - 	at java.lang.ClassLoader.loadClass(ClassLoader.java:418)
2022/11/23 18:27:07 - General - 	at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:355)
2022/11/23 18:27:07 - General - 	at java.lang.ClassLoader.loadClass(ClassLoader.java:351)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

ui添加依赖

<dependency>
      <groupId>jaxengroupId>
      <artifactId>jaxenartifactId>
dependency>
1
2
3
4

启动成功
