大数据（9e）图解Flink窗口

1、代码模板

本地开发环境：WIN10+IDEA
只改##################### 业务逻辑 #####################之间的代码

1.1、pom.xml

<properties>
    <maven.compiler.source>8maven.compiler.source>
    <maven.compiler.target>8maven.compiler.target>
    <flink.version>1.14.6flink.version>
    <scala.binary.version>2.12scala.binary.version>
    <slf4j.version>2.0.3slf4j.version>
    <log4j.version>2.17.2log4j.version>
properties>

<dependencies>

    <dependency>
        <groupId>org.apache.flinkgroupId>
        <artifactId>flink-javaartifactId>
        <version>${flink.version}version>
    dependency>
    <dependency>
        <groupId>org.apache.flinkgroupId>
        <artifactId>flink-streaming-java_${scala.binary.version}artifactId>
        <version>${flink.version}version>
    dependency>
    <dependency>
        <groupId>org.apache.flinkgroupId>
        <artifactId>flink-clients_${scala.binary.version}artifactId>
        <version>${flink.version}version>
    dependency>
    <dependency>
        <groupId>org.apache.flinkgroupId>
        <artifactId>flink-runtime-web_${scala.binary.version}artifactId>
        <version>${flink.version}version>
    dependency>

    <dependency>
        <groupId>org.slf4jgroupId>
        <artifactId>slf4j-apiartifactId>
        <version>${slf4j.version}version>
    dependency>
    <dependency>
        <groupId>org.slf4jgroupId>
        <artifactId>slf4j-log4j12artifactId>
        <version>${slf4j.version}version>
    dependency>
    <dependency>
        <groupId>org.apache.logging.log4jgroupId>
        <artifactId>log4j-to-slf4jartifactId>
        <version>${log4j.version}version>
    dependency>
dependencies>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

1.2、log4j.properties

log4j.rootLogger=error, stdout
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%-4r [%t] %-5p %c %x - %m%n
1
2
3
4

1.3、Java模板

import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import java.util.Scanner;

public class Hello {
    public static void main(String[] args) throws Exception {
        //创建执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //设置并行度
        env.setParallelism(1);
        //加入自定义数据源
        DataStreamSource<String> dss = env.addSource(new MySource());
        //################################### 业务逻辑 ########################################
        dss.print();
        //################################### 业务逻辑 ########################################
        env.execute();
    }

    public static class MySource implements SourceFunction<String> {
        public MySource() {}

        @Override
        public void run(SourceContext<String> sc) {
            Scanner scanner = new Scanner(System.in);
            while (true) {
                String str = scanner.nextLine().trim();
                if (str.equals("STOP")) {break;}
                if (!str.equals("")) {sc.collect(str);}
            }
            scanner.close();
        }

        @Override
        public void cancel() {}
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

2、按键分区（Keyed）、非按键分区（Non-Keyed）

• 按键分区窗口 可在keyBy后执行
• 非按键分区窗口 流的并行度=1

3、窗口的分类

• 将 无界限的 数据 切分为 有界限的 数据
• https://yellow520.blog.csdn.net/article/details/121288240

3.1、基于时间的窗口

基于时间的滑动窗口

.window(SlidingProcessingTimeWindows.of(Time.seconds(6),Time.seconds(3)))
1

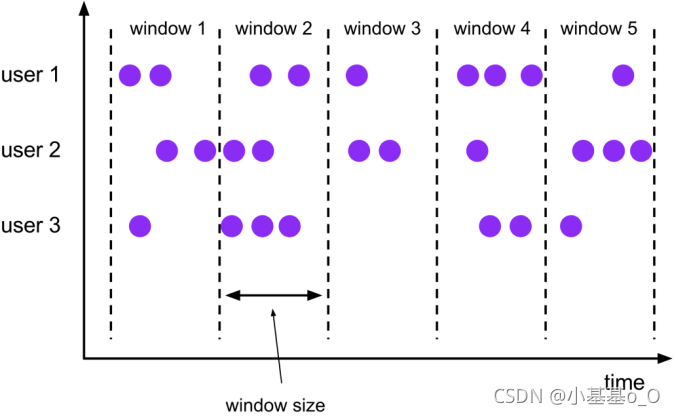

基于时间的滚动窗口

.window(TumblingProcessingTimeWindows.of(Time.seconds(3)))
1

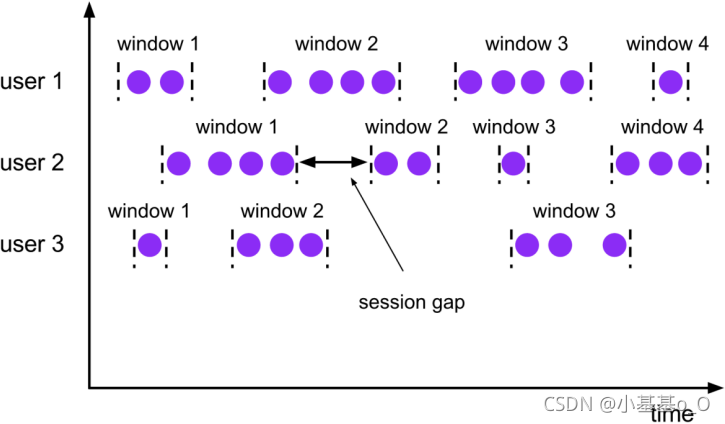

基于时间的会话窗口

.window(ProcessingTimeSessionWindows.withGap(Time.seconds(2)))
1

基于时间的全局窗口

.window(GlobalWindows.create())
1

3.2、基于事件个数的窗口

基于事件个数的滑动窗口

.countWindow(4,3)
1

基于事件个数的滚动窗口

.countWindow(4)
1

4、窗口函数

修改代码模板中##################### 业务逻辑 #####################之间的代码

4.1、ReduceFunction

import org.apache.flink.api.common.functions.ReduceFunction;
import org.apache.flink.streaming.api.windowing.assigners.TumblingProcessingTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
1
2
3

dss.keyBy(s -> s)
   .window(TumblingProcessingTimeWindows.of(Time.seconds(5)))
   .reduce((ReduceFunction<String>) (v1, v2) -> v1 + "," + v2)
   .print("输出");
1
2
3
4

基于时间的滚动窗口

4.2、AggregateFunction

import org.apache.flink.api.common.functions.AggregateFunction;
import org.apache.flink.streaming.api.windowing.assigners.SlidingProcessingTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
1
2
3

dss.windowAll(SlidingProcessingTimeWindows.of(Time.seconds(10), Time.seconds(5)))
   //AggregateFunction
   .aggregate(new AggregateFunction<String, Long, Long>() {
       //创建累加器
       @Override
       public Long createAccumulator() {return 0L;}
       //累加
       @Override
       public Long add(String in, Long acc) {return acc + 1L;}
       //从累加器获取结果
       @Override
       public Long getResult(Long acc) {return acc;}
       //合并累加器
       @Override
       public Long merge(Long a1, Long a2) {return a1 + a2;}
   })
   .print("输出");
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

基于时间的滑动窗口

4.3、ProcessWindowFunction

源码截取

abstract class ProcessAllWindowFunction<IN, OUT, W extends Window> {
    abstract void process(
        ProcessAllWindowFunction<IN, OUT, W>.Context var1,  //上下文对象
        Iterable<IN> var2,                                  //窗口内的所有输入
        Collector<OUT> var3                                 //收集器
    );
1
2
3
4
5
6

代码

import org.apache.flink.streaming.api.functions.windowing.ProcessAllWindowFunction;
import org.apache.flink.streaming.api.windowing.assigners.SlidingProcessingTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.api.windowing.windows.TimeWindow;
import org.apache.flink.util.Collector;
1
2
3
4
5

dss.windowAll(SlidingProcessingTimeWindows.of(Time.seconds(10), Time.seconds(5)))
   .process(new ProcessAllWindowFunction<String, String, TimeWindow>() {
       @Override
       public void process(Context context, Iterable<String> in, Collector<String> out) {
           //打印窗口范围
           System.out.println(context.window().toString());
           //在窗口内，收集元素
           out.collect(String.valueOf(in));
       }
   })
   .print("输出");
1
2
3
4
5
6
7
8
9
10
11

测试运行截图
