混合整数规划的机组组合附Matlab代码

✅作者简介：热爱科研的Matlab仿真开发者，修心和技术同步精进，matlab项目合作可私信。

🍎个人主页：Matlab科研工作室

🍊个人信条：格物致知。

更多Matlab仿真内容点击👇

智能优化算法  神经网络预测 雷达通信  无线传感器

信号处理 图像处理 路径规划 元胞自动机 无人机  电力系统

⛄ 内容介绍

机组组合问题要求基于已知的系统数据，求解计划时间内机组决策变量的最优组合，使得系统总成本达到最小。该问题的决策变量由两类，一类是各时段机组的启停状态，为整数变量，0表示关停，1表示启动；另一类是各时段机组的出力，为连续变量。

机组组合问题属于规划问题，即要在决策变量的可行解空间里找到一组最优解，使得目标函数尽可能取得极值。对于混合整数规划，常用的方法有分支定界法，benders分解等。CPLEX提供了快速的MIP求解方法，对于数学模型已知的问题，只需要按照程序规范在MATLAB中编写程序化模型，调用CPLEX求解器，即可进行求解。

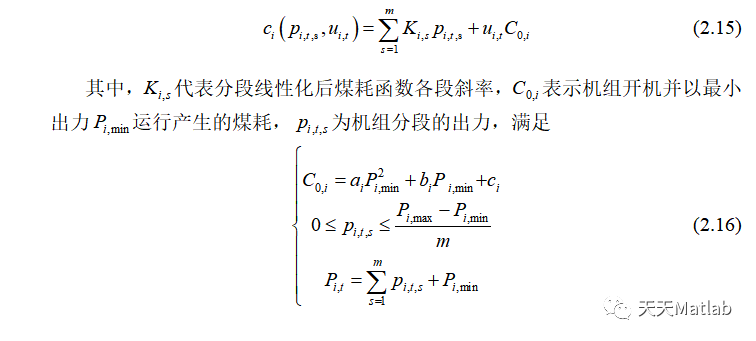

下文介绍机组组合优化的数学模型。

​

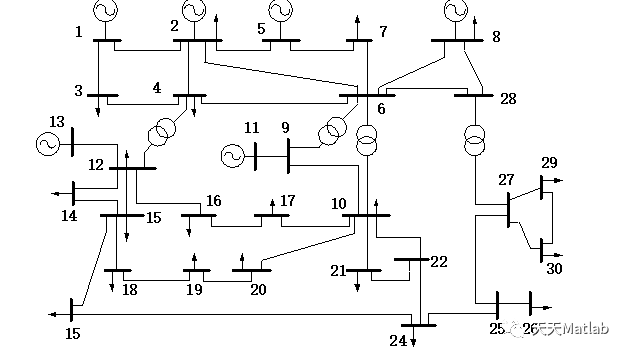

校验程序的算例基于IEEE-30节点标准测试系统，系统接线图如图1。系统包含30个节点，6台发电机组。要求确定系统最优机组组合，使得系统各机组总运行成本（煤耗成本+启停成本）最小化。

已知：给定系统数据包括如下：（见附件testsystem.xls）

1)线路网络参数

2)机组参数

3)各节点各时段负荷曲线（24小时）

注意：附件中的数据均基于标幺化系统得到，因此电力电量参数、网络参数等都为标幺值，无量纲。还要注意附件中煤耗系数a,b,c的单位为吨，因此计算煤耗成本还需换算为价格，设燃煤价格为100$/吨。

求解：机组组合结果，即机组各时段启停计划、机组各时段最优出力，以及内含的各时段的直流潮流等。

⛄ 部分代码

function diagnostic = solvesdp(varargin)

%SOLVESDP Computes solution to optimization problem

%

%   DIAGNOSTIC = SOLVESDP(F,h,options) is the common command to

%   solve optimization problems of the following kind

%

%    min        h

%    subject to

%            F >=(<=,==) 0

%

%   NOTES

%    Despite the name, SOLVESDP is the interface for solving all

%    supported problem classes (LP, QP, SOCP, SDP, BMI, MILP, MIQP,...)

%

%    To obtain solution for a variable, use DOUBLE.

%

%    To obtain dual variable for a constraint, use DUAL.

%

%    See YALMIPERROR for error codes returned in output.

%

%   OUTPUT

%     diagnostic : Diagnostic information

%

%   INPUT

%     F          : Object describing the constraints. Can be [].

%     h          : SDPVAR object describing the objective h(x). Can be [].

%     options    : Options structure. See SDPSETTINGS. Can be [].

%

%   EXAMPLE

%    A = randn(15,5);b = rand(15,1)*5;c = randn(5,1);

%    x = sdpvar(5,1);

%    solvesdp([x>=0, A*x<=b],c'*x);double(x)

%

%   See also DUAL, @SDPVAR/DOUBLE, SDPSETTINGS, YALMIPERROR

yalmiptime = clock; % Let us see how much time we spend

% Avoid warning

if length(varargin)>=2

    if isa(varargin{2},'double')

        varargin{2} = [];

    end

end

if length(varargin)>=2

    if isa(varargin{2},'sdpvar') && prod(size(varargin{2}))>1

        % Several objectives

        diagnostic = solvesdp_multiple(varargin{:});

        return

    end

end

% *********************************

% CHECK INPUT

% *********************************

nargin = length(varargin);

if nargin<1

    help solvesdp

    return

else

    F = varargin{1};

    if isa(F,'constraint')

        F = lmi(F);

    end

    if isa(F,'lmi')

        F = flatten(F);

    end



    if isa(F,'sdpvar')

        % We do allow sloppy coding of logic constraints, i.e writing a

        % constraints as [a|b true(a)]

        Fnew = [];

        for i = 1:length(F)

            if length(getvariables(F(i)))>1

                Fnew = nan;

                break

            end

            operator = yalmip('extstruct',getvariables(F(i)));

            if isempty(operator)

                Fnew = nan;

                break

            end

            if length(operator)>1

                Fnew = nan;

                break

            end

            if ~strcmp(operator.fcn,'or')

                Fnew = nan;

                break

            end

            Fnew = Fnew + (true(F(i)));

        end

        if isnan(Fnew)

            error('First argument (F) should be a constraint object.');

        else

            F = Fnew;

        end

    elseif isempty(F)

        F = lmi([]);

    elseif ~isa(F,'lmi')

        error('First argument (F) should be a constraint object.');

    end

end

if nargin>=2

    h = varargin{2};

    if isa(h,'double')

        h = [];

    end

    if ~(isempty(h) | isa(h,'sdpvar') | isa(h,'logdet') |  isa(h,'ncvar'))

        error('Second argument (the objective function h) should be an sdpvar or logdet object (or empty).');

    end

    if isa(h,'logdet')

        logdetStruct.P     = getP(h);

        logdetStruct.gain  = getgain(h);

        h = getcx(h);

        if isempty(F)

            F = ([]);

        end

    else

        logdetStruct = [];

    end

else

    logdetStruct = [];

    h = [];

end

if ~isempty(F)

    if any(is(F,'sos'))

        diagnostic = solvesos(varargin{:});

        return

    end

end

if isa(h,'sdpvar')

    if is(h,'complex')

        error('Complex valued objective does not make sense.');

    end

end



if nargin>=3

    options = varargin{3};

    if ~(isempty(options) | isa(options,'struct'))

        error('Third argument (options) should be an sdpsettings struct (or empty).');

    end

    if isempty(options)

        options = sdpsettings;

    end

else

    options = sdpsettings;

end

options.solver = lower(options.solver);

% If user has logdet term, but no preference on solver, we try to hook up

% with SDPT3 if possible.

if ~isempty(logdetStruct)

    if strcmp(options.solver,'')

     %   options.solver = 'sdpt3,*';

    end

end

% Call chance solver?

if length(F) > 0

    rand_declarations = is(F,'random');

    if any(rand_declarations)

    %    diagnostic = solverandom(F(find(~rand_declarations)),h,options,recover(getvariables(sdpvar(F(find(unc_declarations))))));

        return

    end

end

% Call robust solver?

if length(F) > 0

    unc_declarations = is(F,'uncertain');

    if any(unc_declarations)

        diagnostic = solverobust(F(find(~unc_declarations)),h,options,recover(getvariables(sdpvar(F(find(unc_declarations))))));

        return

    end

end



if isequal(options.solver,'mpt') | nargin>=4

    solving_parametric = 1;

else

    solving_parametric = 0;

end



% Just for safety

if isempty(F) & isempty(logdetStruct)

    F = lmi;

end

if any(is(F,'sos'))

    error('You have SOS constraints. Perhaps you meant to call SOLVESOS.');

end

% Super stupido

if length(F) == 0 & isempty(h) & isempty(logdetStruct)

   diagnostic.yalmiptime = 0;

   diagnostic.solvertime = 0;

   diagnostic.info = 'No problems detected (YALMIP)';

   diagnostic.problem = 0;

   diagnostic.dimacs = [NaN NaN NaN NaN NaN NaN];

   return

end

% Dualize the problem?

if ~isempty(F)

    if options.dualize == -1

        sdp = find(is(F,'sdp'));

        if ~isempty(sdp)

            if all(is(F(sdp),'sdpcone'))

                options.dualize = 1;

            end

        end

    end

end

if options.dualize == 1

    [Fd,objd,aux1,aux2,aux3,complexInfo] = dualize(F,h,[],[],[],options);

    options.dualize = 0;

    diagnostic = solvesdp(Fd,-objd,options);

    if ~isempty(complexInfo)

        for i = 1:length(complexInfo.replaced)

            n = size(complexInfo.replaced{i},1);

            re = 2*double(complexInfo.new{i}(1:n,1:n));

            im = 2*double(complexInfo.new{i}(1:n,n+1:end));

            im=triu((im-im')/2)-(triu((im-im')/2))';

            assign(complexInfo.replaced{i},re + sqrt(-1)*im);

        end

    end

    return

end

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

% DID WE SELECT THE MOMENT SOLVER

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

if isequal(options.solver,'moment')

    if ~isempty(logdetStruct)

        error('Cannot dualize problems with logaritmic objective')

    end

    options.solver = options.moment.solver;

    [diagnostic,x,momentdata] = solvemoment(F,h,options,options.moment.order);

    diagnostic.momentdata = momentdata;

    diagnostic.xoptimal = x;

    return

end

% ******************************************

% COMPILE IN GENERALIZED YALMIP FORMAT

% ******************************************

[interfacedata,recoverdata,solver,diagnostic,F,Fremoved,ForiginalQuadratics] = compileinterfacedata(F,[],logdetStruct,h,options,0,solving_parametric);

% ******************************************

% FAILURE?

% ******************************************

if ~isempty(diagnostic)

    diagnostic.yalmiptime = etime(clock,yalmiptime);

    return

end

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

% DID WE SELECT THE LMILAB SOLVER WITH A KYP

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

if  strcmpi(solver.tag,'lmilab') & any(is(F,'kyp'))

    [diagnostic,failed] = calllmilabstructure(F,h,options);

    if ~failed % Did this problem pass (otherwise solve using unstructured call)

        diagnostic.yalmiptime = etime(clock,yalmiptime)-diagnostic.solvertime;

        return

    end

end

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

% DID WE SELECT THE KYPD SOLVER

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

if strcmpi(solver.tag,'kypd')

    diagnostic = callkypd(F,h,options);

    diagnostic.yalmiptime = etime(clock,yalmiptime)-diagnostic.solvertime;

    return

end

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

% DID WE SELECT THE STRUL SOLVER

% ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

if strfind(solver.tag,'STRUL')

    diagnostic = callstrul(F,h,options);

    diagnostic.yalmiptime = etime(clock,yalmiptime)-diagnostic.solvertime;

    return

end

% ******************************************

% DID WE SELECT THE BMILIN SOLVER (obsolete)

% ******************************************

if strcmpi(solver.tag,'bmilin')

    diagnostic = callbmilin(F,h,options);

    return

end

% ******************************************

% DID WE SELECT THE BMIALT SOLVER (obsolete)

% ******************************************

if strcmp(solver.tag,'bmialt')

    diagnostic = callbmialt(F,h,options);

    return

end

%******************************************

% DID WE SELECT THE MPT solver (backwards comb)

%******************************************

actually_save_output = interfacedata.options.savesolveroutput;

if strcmpi(solver.tag,'mpt-2') | strcmpi(solver.tag,'mpt-3') | strcmpi(solver.tag,'mpcvx') | strcmpi(solver.tag,'mplcp')

    interfacedata.options.savesolveroutput = 1;

    if isempty(interfacedata.parametric_variables)

        if (nargin < 4 | ~isa(varargin{4},'sdpvar'))

            error('You must specify parametric variables.')

        else

            interfacedata.parametric_variables = [];

            for i = 1:length(varargin{4})

                  interfacedata.parametric_variables = [interfacedata.parametric_variables;find(ismember(recoverdata.used_variables,getvariables(varargin{4}(i))))];

            end

            if isempty(varargin{5})

                interfacedata.requested_variables = [];

            else

                interfacedata.requested_variables = [];

                for i = 1:length(varargin{5})

                    interfacedata.requested_variables = [interfacedata.requested_variables;find(ismember(recoverdata.used_variables,getvariables(varargin{5}(i))))];

                end

            end

        end

    end

end

% *************************************************************************

% Just return the YALMIP model. Used when solving multiple objectives

% *************************************************************************

if isfield(options,'pureexport')

    interfacedata.recoverdata = recoverdata;

    diagnostic = interfacedata;

    return

end

% *************************************************************************

% TRY TO SOLVE PROBLEM

% *************************************************************************

if options.debug

    eval(['output = ' solver.call '(interfacedata);']);

else

    try

        eval(['output = ' solver.call '(interfacedata);']);

    catch

        output.Primal = zeros(length(interfacedata.c),1)+NaN;

        output.Dual  = [];

        output.Slack = [];

        output.solvertime   = nan;

        output.solverinput  = [];

        output.solveroutput = [];

        output.problem = 9;

        output.infostr = yalmiperror(output.problem,lasterr);

    end

end

if options.dimacs

    try

        b = -interfacedata.c;

        c = interfacedata.F_struc(:,1);

        A = -interfacedata.F_struc(:,2:end)';

        x = output.Dual;

        y = output.Primal;

        % FIX this nonlinear crap (return variable type in

        % compileinterfacedata)

        if options.relax == 0 & any(full(sum(interfacedata.monomtable,2)~=0))

            if ~isempty(find(sum(interfacedata.monomtable | interfacedata.monomtable,2)>1))

                z=real(exp(interfacedata.monomtable*log(y+eps)));

                y = z;

            end

        end



        if isfield(output,'Slack')

            s = output.Slack;

        else

            s = [];

        end



        dimacs = computedimacs(b,c,A,x,y,s,interfacedata.K);

    catch

        dimacs = [nan nan nan nan nan nan];

    end

else

    dimacs = [nan nan nan nan nan nan];

end

% ********************************

% ORIGINAL COORDINATES

% ********************************

output.Primal = recoverdata.x_equ+recoverdata.H*output.Primal;

% ********************************

% OUTPUT

% ********************************

diagnostic.yalmiptime = etime(clock,yalmiptime)-output.solvertime;

diagnostic.solvertime = output.solvertime;

try

    diagnostic.info = output.infostr;

catch

    diagnostic.info = yalmiperror(output.problem,solver.tag);

end

diagnostic.problem = output.problem;

if options.dimacs

    diagnostic.dimacs = dimacs;

end

% Some more info is saved internally

solution_internal = diagnostic;

solution_internal.variables = recoverdata.used_variables(:);

solution_internal.optvar = output.Primal;

if ~isempty(interfacedata.parametric_variables)

    diagnostic.mpsol = output.solveroutput;

    options.savesolveroutput = actually_save_output;

end;

if interfacedata.options.savesolveroutput

    diagnostic.solveroutput = output.solveroutput;

end

if interfacedata.options.savesolverinput

    diagnostic.solverinput = output.solverinput;

end

if interfacedata.options.saveyalmipmodel

    diagnostic.yalmipmodel = interfacedata;

end

if options.warning & warningon & isempty(findstr(diagnostic.info,'No problems detected'))

    disp(['Warning: ' output.infostr]);

end

if ismember(output.problem,options.beeponproblem)

    try

        beep; % does not exist on all ML versions

    catch

    end

end

% And we are done! Save the result

if ~isempty(output.Primal)

    if size(output.Primal,2)>1

        for j = 1:size(output.Primal,2)

            temp = solution_internal;

            temp.optvar = temp.optvar(:,j);

            yalmip('setsolution',temp,j);

        end

    else

        yalmip('setsolution',solution_internal);

    end

end

if interfacedata.options.saveduals & solver.dual

    if isempty(interfacedata.Fremoved) | (nnz(interfacedata.Q)>0)

        try

            setduals(F,output.Dual,interfacedata.K);

        catch

        end

    else

        try

            % Duals related to equality constraints/free variables

            % have to be recovered b-A*x-Ht == 0

            b = -interfacedata.oldc;

            A = -interfacedata.oldF_struc(1+interfacedata.oldK.f:end,2:end)';

            H = -interfacedata.oldF_struc(1:interfacedata.oldK.f,2:end)';

            x = output.Dual;

            b_equ = b-A*x;

            newdual =  H\b_equ;

            setduals(interfacedata.Fremoved + F,[newdual;output.Dual],interfacedata.oldK);

        catch

             % this is a new feature...

            disp('Dual recovery failed. Please report this issue.');

        end

    end

end

% Hack to recover original QCQP duals from gurobi

if strcmp(solver.tag,'GUROBI-GUROBI')

    if length(ForiginalQuadratics) > 0

        if isfield(output,'qcDual')

            if length(output.qcDual) == length(ForiginalQuadratics)

                Ktemp.l = length(output.qcDual);

                Ktemp.f = 0;

                Ktemp.q = 0;

                Ktemp.s = 0;

                Ktemp.r = 0;

                setduals(ForiginalQuadratics,-output.qcDual,Ktemp);

            end

        end

    end

end

function yesno = warningon

s = warning;

yesno = isequal(s,'on');
