小学生python游戏编程arcade----基本知识2

摄象机随人物移动这个功能在pygame中想实现是需费些功夫的。
- - 3、碰撞及检测，声音加载
- 源码获取

前言

接上篇文章继续解绍arcade游戏编程的基本知识。

重力应用、移动摄象机、碰撞及检测

1、重力应用

许多游戏都包含某种物理学。最简单的是自上而下的程序，可防止角色穿过墙壁等。平台开发人员通过重力和移动平台增加了更多的复杂性。有些游戏使用具有质量，摩擦力，弹簧等的完整2D物理引擎。
在此setup 方法，将物理引擎更改为 PhysicsEnginePlatformer 并将重力作为一个参数
# 物理引擎
# self.physics_engine = arcade.PhysicsEngineSimple(
# self.player_sprite, self.scene.get_sprite_list(“Walls”))
跳起时，因重力作用而回到地面，在游戏中就是把精灵的y坐标值按上下方向加个速度
if key == arcade.key.UP or key == arcade.key.W:
if self.physics_engine.can_jump():
self.player_sprite.change_y = PLAYER_JUMP_SPEED

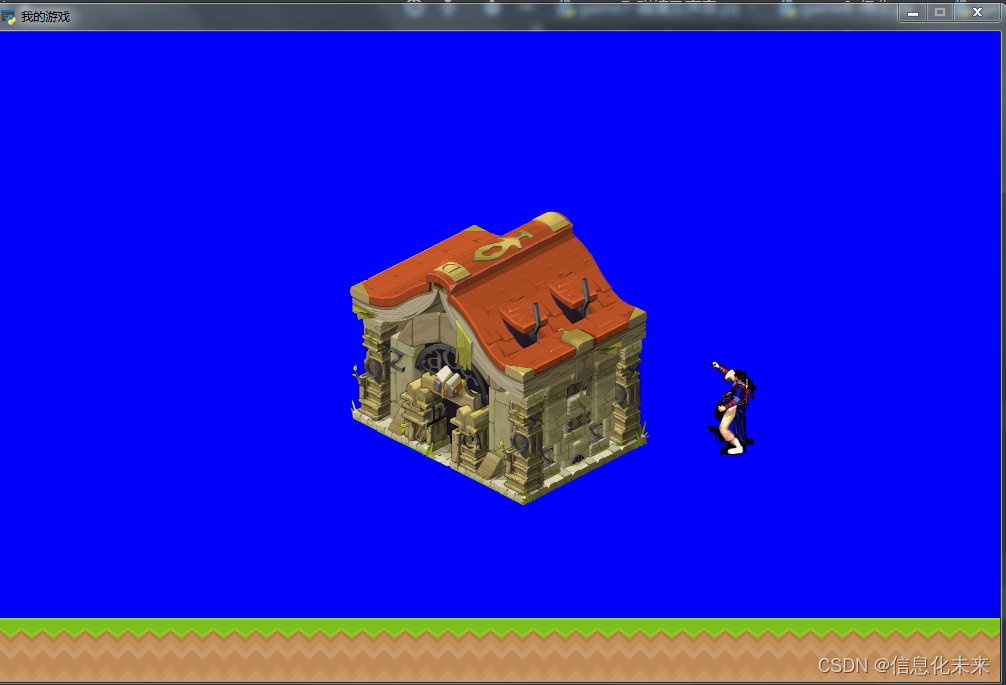

效果：
在这里插入图片描述

# _*_ coding: UTF-8 _*_
# 开发团队： 信息化未来
# 开发人员： Administrator
# 开发时间：2022/11/4 16:59
# 文件名称： game1.py
# 开发工具: PyCharm
import arcade

# 设置
SCREEN_WIDTH = 1000
SCREEN_HEIGHT = 650
SCREEN_TITLE = "我的游戏"

# 常量用于从原始大小缩放精灵
CHARACTER_SCALING = 1
TILE_SCALING = 0.5
PLAYER_MOVEMENT_SPEED = 2.5
# 重力
GRAVITY = 1
PLAYER_JUMP_SPEED = 20


class MyGame(arcade.Window):
    def __init__(self):
        # Call the parent class and set up the window
        super().__init__(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)
        self.scene = None
        self.player_sprite = None

        arcade.set_background_color(arcade.csscolor.BLUE)

        self.physics_engine = None

    def setup(self):

        # 初始化场景
        self.scene = arcade.Scene()

        # 添加精灵列表
        self.scene.add_sprite_list("Player")
        self.scene.add_sprite_list("Walls", use_spatial_hash=True)

        # 添加角色.
        image_source = "images/1-1.png"
        self.player_sprite = arcade.Sprite(image_source, CHARACTER_SCALING)
        self.player_sprite.center_x = 264
        self.player_sprite.center_y = 128
        self.scene.add_sprite("Player", self.player_sprite)

        wall = arcade.Sprite("images/房子.png", TILE_SCALING)
        wall.center_x = SCREEN_WIDTH /2
        wall.center_y = SCREEN_HEIGHT /2
        self.scene.add_sprite("Walls", wall)

        for x in range(0, 1250, 64):
            wall = arcade.Sprite(":resources:images/tiles/grassMid.png", TILE_SCALING)
            wall.center_x = x
            wall.center_y = 32
            self.scene.add_sprite("Walls", wall)

        # 物理引擎
        # self.physics_engine = arcade.PhysicsEngineSimple(
        #     self.player_sprite, self.scene.get_sprite_list("Walls"))

        self.physics_engine = arcade.PhysicsEnginePlatformer(
            self.player_sprite, gravity_constant=GRAVITY, walls=self.scene["Walls"]
        )

    def on_draw(self):
        self.clear()
        self.scene.draw()
        # self.wall_list.draw()
        # self.player_list.draw()

    def on_key_press(self, key, modifiers):
        """Called whenever a key is pressed."""

        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.can_jump():
                self.player_sprite.change_y = PLAYER_JUMP_SPEED
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = PLAYER_MOVEMENT_SPEED

    def on_key_release(self, key, modifiers):
        """Called when the user releases a key."""

        if key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = 0
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = 0

    def on_update(self, delta_time):
        """Movement and game logic"""

        # Move the player with the physics engine
        self.physics_engine.update()


def main():
    """Main function"""
    window = MyGame()
    window.setup()
    arcade.run()


if __name__ == "__main__":
    main()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109

2、摄象机

上个游戏，人物走到最右侧后，再向右走，人物走出了屏幕，怎么办？可以让我们的窗口成为一个小的视窗，进入一个更大的世界，只需给它添加一个摄像头。玩过游戏的人大多数知道，地图随着人物移动而变化，如何做呢，看下面：
初始时添加一个摄象机
self.camera = None # 摄象机
在setup中加
def setup(self):
# 摄象机
self.camera = arcade.Camera(self.width, self.height)
self.width, self.height如过用一半，你会发现，一半屏在闪，可以试试，有利于理解窗口宽高这两个参数的作用。

摄象机随人物移动这个功能在pygame中想实现是需费些功夫的。

 def center_camera_to_player(self):
    screen_center_x = self.player_sprite.center_x - (self.camera.viewport_width / 2)
    screen_center_y = self.player_sprite.center_y - (
            self.camera.viewport_height / 2
    )
    # Don't let camera travel past 0
    if screen_center_x < 0:
        screen_center_x = 0
    if screen_center_y < 0:
        screen_center_y = 0
    player_centered = screen_center_x, screen_center_y
    self.camera.move_to(player_centered)
1
2
3
4
5
6
7
8
9
10
11
12

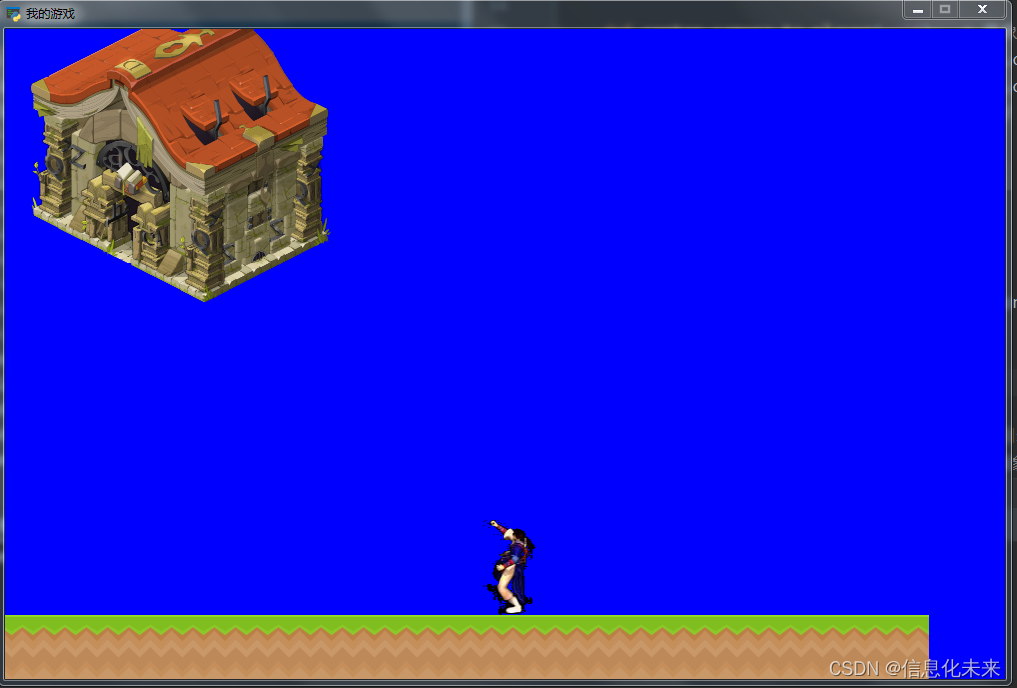

效果：地图随人物移动在变在这里插入图片描述

# _*_ coding: UTF-8 _*_
# 开发团队： 信息化未来
# 开发人员： Administrator
# 开发时间：2022/11/4 16:59
# 文件名称： game1.py
# 开发工具: PyCharm
import arcade

# 设置
SCREEN_WIDTH = 1000
SCREEN_HEIGHT = 650
SCREEN_TITLE = "我的游戏"

# 常量用于从原始大小缩放精灵
CHARACTER_SCALING = 1
TILE_SCALING = 0.5
PLAYER_MOVEMENT_SPEED = 2.5
# 重力
GRAVITY = 1
PLAYER_JUMP_SPEED = 20


class MyGame(arcade.Window):
    def __init__(self):
        # 初始化窗体
        super().__init__(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)
        self.scene = None
        self.player_sprite = None

        arcade.set_background_color(arcade.csscolor.BLUE)

        self.physics_engine = None
        self.camera = None  # 摄象机

    def setup(self):
        # 摄象机
        self.camera = arcade.Camera(self.width, self.height)

        # 初始化场景
        self.scene = arcade.Scene()

        # 添加精灵列表
        self.scene.add_sprite_list("Player")
        self.scene.add_sprite_list("Walls", use_spatial_hash=True)

        # 添加角色.
        image_source = "images/1-1.png"
        self.player_sprite = arcade.Sprite(image_source, CHARACTER_SCALING)
        self.player_sprite.center_x = 264
        self.player_sprite.center_y = 128
        self.scene.add_sprite("Player", self.player_sprite)

        wall = arcade.Sprite("images/房子.png", TILE_SCALING)
        wall.center_x = SCREEN_WIDTH /2
        wall.center_y = SCREEN_HEIGHT /2+200
        self.scene.add_sprite("Walls", wall)

        for x in range(0, 1250, 64):
            wall = arcade.Sprite(":resources:images/tiles/grassMid.png", TILE_SCALING)
            wall.center_x = x
            wall.center_y = 32
            self.scene.add_sprite("Walls", wall)

        # 物理引擎
        # self.physics_engine = arcade.PhysicsEngineSimple(
        #     self.player_sprite, self.scene.get_sprite_list("Walls"))

        self.physics_engine = arcade.PhysicsEnginePlatformer(
            self.player_sprite, gravity_constant=GRAVITY, walls=self.scene["Walls"]
        )

    def on_draw(self):
        self.clear()
        self.scene.draw()
        self.camera.use()  # 摄象机

    def on_key_press(self, key, modifiers):
        """每当按下键时调用."""
        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.can_jump():
                self.player_sprite.change_y = PLAYER_JUMP_SPEED
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = PLAYER_MOVEMENT_SPEED

    def on_key_release(self, key, modifiers):
        """Called when the user releases a key."""

        if key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = 0
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = 0

    def center_camera_to_player(self):  # 摄象机随人物移动
        screen_center_x = self.player_sprite.center_x - (self.camera.viewport_width / 2)
        screen_center_y = self.player_sprite.center_y - (
                self.camera.viewport_height / 2
        )
        # Don't let camera travel past 0
        if screen_center_x < 0:
            screen_center_x = 0
        if screen_center_y < 0:
            screen_center_y = 0
        player_centered = screen_center_x, screen_center_y
        self.camera.move_to(player_centered)

    def on_update(self, delta_time):
        """运动和游戏逻辑"""
        self.physics_engine.update()  # 运用引擎移动角色
        self.center_camera_to_player()   # 摄象机


def main():
    """主程序"""
    window = MyGame()
    window.setup()
    arcade.run()


if __name__ == "__main__":
    main()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122

3、碰撞及检测，声音加载

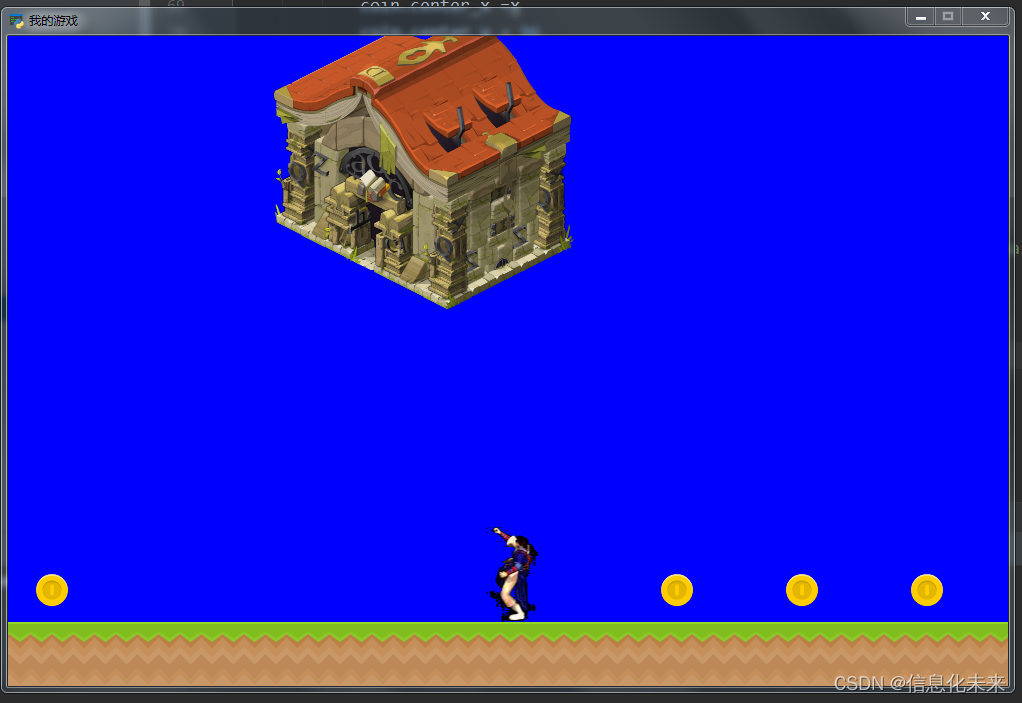

碰到金币，金币消失
在这里插入图片描述

代码：

# _*_ coding: UTF-8 _*_
# 开发团队： 信息化未来
# 开发人员： Administrator
# 开发时间：2022/11/4 16:59
# 文件名称： game1.py
# 开发工具: PyCharm
import arcade

# 设置
SCREEN_WIDTH = 1000
SCREEN_HEIGHT = 650
SCREEN_TITLE = "我的游戏"

# 常量用于从原始大小缩放精灵
CHARACTER_SCALING = 1
TILE_SCALING = 0.5
PLAYER_MOVEMENT_SPEED = 2.5
# 重力
GRAVITY = 1
PLAYER_JUMP_SPEED = 20


class MyGame(arcade.Window):
    def __init__(self):
        # 初始化窗体
        super().__init__(SCREEN_WIDTH, SCREEN_HEIGHT, SCREEN_TITLE)
        self.scene = None
        self.player_sprite = None

        arcade.set_background_color(arcade.csscolor.BLUE)

        self.physics_engine = None
        self.camera = None  # 摄象机
        # 加载声音
        self.collect_coin_sound = arcade.load_sound("sounds/coin2.wav")
        self.jump_sound = arcade.load_sound("sounds/s3.wav")

    def setup(self):
        # 摄象机
        self.camera = arcade.Camera(self.width, self.height)

        # 初始化场景
        self.scene = arcade.Scene()

        # 添加精灵列表
        self.scene.add_sprite_list("Player")
        self.scene.add_sprite_list("Walls", use_spatial_hash=True)

        # 添加角色.
        image_source = "images/1-1.png"
        self.player_sprite = arcade.Sprite(image_source, CHARACTER_SCALING)
        self.player_sprite.center_x = 264
        self.player_sprite.center_y = 128
        self.scene.add_sprite("Player", self.player_sprite)

        wall = arcade.Sprite("images/房子.png", TILE_SCALING)
        wall.center_x = SCREEN_WIDTH /2
        wall.center_y = SCREEN_HEIGHT /2+200
        self.scene.add_sprite("Walls", wall)

        for x in range(0, 1250, 64):
            wall = arcade.Sprite(":resources:images/tiles/grassMid.png", TILE_SCALING)
            wall.center_x = x
            wall.center_y = 32
            self.scene.add_sprite("Walls", wall)

        for x in range(128, 1250, 125):
            coin = arcade.Sprite(":resources:images/items/coinGold.png", 0.5)
            coin.center_x =x
            coin.center_y = 96
            self.scene.add_sprite("Coins", coin)

        # 物理引擎
        # self.physics_engine = arcade.PhysicsEngineSimple(
        #     self.player_sprite, self.scene.get_sprite_list("Walls"))

        self.physics_engine = arcade.PhysicsEnginePlatformer(
            self.player_sprite, gravity_constant=GRAVITY, walls=self.scene["Walls"]
        )

    def on_draw(self):
        self.clear()
        self.scene.draw()
        self.camera.use()  # 摄象机

    def on_key_press(self, key, modifiers):
        """每当按下键时调用."""
        if key == arcade.key.UP or key == arcade.key.W:
            if self.physics_engine.can_jump():
                self.player_sprite.change_y = PLAYER_JUMP_SPEED
                arcade.play_sound(self.jump_sound)
        elif key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = -PLAYER_MOVEMENT_SPEED
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = PLAYER_MOVEMENT_SPEED

    def on_key_release(self, key, modifiers):
        """Called when the user releases a key."""

        if key == arcade.key.LEFT or key == arcade.key.A:
            self.player_sprite.change_x = 0
        elif key == arcade.key.RIGHT or key == arcade.key.D:
            self.player_sprite.change_x = 0

    def center_camera_to_player(self):
        screen_center_x = self.player_sprite.center_x - (self.camera.viewport_width / 2)
        screen_center_y = self.player_sprite.center_y - (
                self.camera.viewport_height / 2
        )

        # Don't let camera travel past 0
        if screen_center_x < 0:
            screen_center_x = 0
        if screen_center_y < 0:
            screen_center_y = 0
        player_centered = screen_center_x, screen_center_y
        self.camera.move_to(player_centered)

    def on_update(self, delta_time):
        """运动和游戏逻辑"""
        # Move the player with the physics engine
        self.physics_engine.update()

        # See if we hit any coins
        coin_hit_list = arcade.check_for_collision_with_list(
            self.player_sprite, self.scene["Coins"]
        )

        # Loop through each coin we hit (if any) and remove it
        for coin in coin_hit_list:
            # Remove the coin
            coin.remove_from_sprite_lists()
            # Play a sound
            arcade.play_sound(self.collect_coin_sound)

        self.physics_engine.update()  # 运用引擎移动角色
        self.center_camera_to_player()   # 摄象机


def main():
    """主程序"""
    window = MyGame()
    window.setup()
    arcade.run()


if __name__ == "__main__":
    main()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148

源码获取

可关注博主后，私聊博主免费获取
需要技术指导，育娃新思考，企业软件合作等更多服务请联系博主

今天是以此模板持续更新此育儿专栏的第 12 /50次。
可以关注我，点赞我、评论我、收藏我啦。

相关阅读:
计算机毕业设计选题推荐-教务管理系统-Java/Python项目实战
 几张高度概括电阻、电容、电感与磁珠的思维导图（高清原图）
[附源码]计算机毕业设计JAVA高校资源共享平台
 算法链表内指定区间反转
 MFC中如何重绘CListCtrl的表头
 Inveigh结合DNS v6配合NTLM Relay 的利用
 day48
几行代码把Chrome搞崩溃之：HTML5 MP3录音由ScriptProcessorNode升级成AudioWorkletNode采坑记
 工厂人员定位系统如何解决工厂管理难题？
Gartner发布当前至2024年的五大隐私趋势
原文地址：https://blog.csdn.net/fqfq123456/article/details/127701971

小学生python游戏编程arcade----基本知识2

小学生python游戏编程arcade----基本知识2

前言

重力应用、移动摄象机、碰撞及检测

1、重力应用

2、摄象机

摄象机随人物移动 这个功能在pygame中想实现是需费些功夫的。

3、碰撞及检测，声音加载

源码获取

摄象机随人物移动这个功能在pygame中想实现是需费些功夫的。
