Unity ProjectTiny动态改变UV显示指定部分的纹理

上篇创建的是LitMesh，这种Mesh要计算Normal和Tangent才能正确显示颜色，不然是黑色的。Tangent是根据Normal和UV计算出来的，所以改变一次UV就得计算一遍Tangent。目前还用不到光照，这篇就创建简单的UnlitMesh来做例子了。

还有Tiny运行时无法动态加载Material，也无法像GameObject那样将Material转成预制体引用起来(至少目前没看到类似的用法)，所以只能在场景中建一个球体，挂上要用到的材质，然后在运行过程中创建好DynamicMesh后，把球体的材质赋值给DynamicMesh。

这篇的主要效果就是动态创建一个UnlitMesh，然后给它赋值一个带纹理的材质，再动态改变Mesh的UV，从而显示纹理上的不同部分。代码有点多，还有用Unity的ECS写代码容易出错，可能稍微改点代码就运行不起来了，这个要注意。

using Unity.Burst;
using Unity.Collections;
using Unity.Entities;
using Unity.Jobs;
using Unity.Mathematics;
using Unity.Transforms;
using Unity.Tiny.Rendering;
using Unity.Tiny;

namespace TinyMesh {
	public struct MaterialHolder : IComponentData
    {
    }
    public struct ChangeMeshUV : IComponentData
    {
    }
    // [DisableAutoCreation]
    [UpdateBefore(typeof(ChangeMeshUVSystem))]
    public class CreateUnlitMeshSystem : SystemBase {
        EntityCommandBuffer ecb;

        protected override void OnCreate() {
            base.OnCreate();
            ecb = World.GetExistingSystem<EndSimulationEntityCommandBufferSystem>().CreateCommandBuffer();
        }

        protected override void OnUpdate() {
            Entities.WithAll<MaterialHolder>().ForEach((Entity e) => {
                var mat = EntityManager.GetComponentData<MeshRenderer>(e).material;
                var unlitMesh = ecb.CreateEntity(); // ForEach里边只能用EntityCommandBuffer来创建Mesh，用EntityManager会报错
                // 添加储存顶点数据的Buffer
                var vertex = ecb.AddBuffer<DynamicSimpleVertex>(unlitMesh); // 不需要光照的SimpleVertex
                // 添加储存顶点下标的Buffer
                var index = ecb.AddBuffer<DynamicIndex>(unlitMesh);
                vertex.Capacity = 4; // buffer的总大小，可以不用跟ResizeUninitialized的设置一样，但必须大于等于
                vertex.ResizeUninitialized(4); // 把buffer长度设置为4，且不初始化每个数据的值(里边的值是乱的)
                index.Capacity = 6;
                index.ResizeUninitialized(6);
                DynamicMeshData dmd = new DynamicMeshData{
                    Dirty = true,
                    IndexCapacity = index.Capacity,
                    VertexCapacity = vertex.Capacity,
                    NumIndices = index.Length,
                    NumVertices = vertex.Length,
                    UseDynamicGPUBuffer = true
                };

                MeshBounds mb;
                var org = new float3(-0.5f, -0.5f, 0);
                var du = new float3(1, 0, 0);
                var dv = new float3(0, 1, 0);
                var destVertices = vertex.AsNativeArray().Reinterpret<DynamicSimpleVertex, SimpleVertex>();
                var destIndices = index.AsNativeArray().Reinterpret<DynamicIndex, ushort>();
                MeshHelper.FillPlaneMesh(destVertices, destIndices, org, du, dv, out mb.Bounds);
                unsafe {
                    int n = vertex.Length;
                    SimpleVertex *vp = (SimpleVertex *)vertex.GetUnsafePtr();
                    for (int i = 0; i < n; i++) {
                        vp[i].Color = new float4(1, 0, 0, 1);
                    }
                }

                // 添加各种渲染UnlitMesh必须用到的组件
                ecb.AddComponent<DynamicMeshData>(unlitMesh, dmd); // 动态网格数据，这种可以在运行时改顶点数据的。还有一种是固定了顶点数据的，无法在运行时改数据！
                ecb.AddComponent<MeshRenderer>(unlitMesh, new MeshRenderer{ // 网格渲染组件
                    mesh = unlitMesh,
                    material = mat,
                    startIndex = 0,
                    indexCount = dmd.NumIndices
                });
                ecb.AddComponent(unlitMesh, new SimpleMeshRenderer()); // 这个组件用来表明该Mesh是不支持光照的网格
                ecb.AddComponent(unlitMesh, mb); // Mesh的包围盒
                ecb.AddComponent<Translation>(unlitMesh, new Translation { Value = float3.zero });
                ecb.AddComponent<Rotation>(unlitMesh, new Rotation { Value = quaternion.RotateX(179) });
                ecb.AddComponent<LocalToWorld>(unlitMesh, new LocalToWorld { Value = float4x4.Translate(float3.zero) });
                ecb.AddComponent(unlitMesh, new ChangeMeshUV());
                ecb.SetComponent(unlitMesh, dmd);

            }).WithoutBurst().Run();

            // 在Entities.ForEach外面可以用EntityManager创建Entity
            var unlitMaterial = CreateUnlitMaterial();
            var _unlitMesh = CreateUnlitMesh(unlitMaterial);
            EntityManager.SetComponentData<Translation>(_unlitMesh, new Translation{Value = new float3(-2, 1, 0)});
            EntityManager.AddComponentData(_unlitMesh, new DemoSpinner { spin =  math.normalize(new quaternion(new float4(1, 0, 0, 1))) });

            // 销毁该System，避免重复创建。在OnCreate中无法调用EntityManager创建Entity的
            World.GetExistingSystem<SimulationSystemGroup>().RemoveSystemFromUpdateList(this);
            World.DestroySystem(this);
        }

        // 注意：该接口不能在Entities.ForEach中调用
        Entity CreateUnlitMesh(Entity unlitMaterial) {
            var unlitMesh = EntityManager.CreateEntity();
            // 添加储存顶点数据的Buffer
            EntityManager.AddBuffer<DynamicSimpleVertex>(unlitMesh); // 不需要光照的SimpleVertex
            // 添加储存顶点下标的Buffer
            EntityManager.AddBuffer<DynamicIndex>(unlitMesh);
            var vertex = EntityManager.GetBuffer<DynamicSimpleVertex>(unlitMesh);
            var index = EntityManager.GetBuffer<DynamicIndex>(unlitMesh);
            vertex.Capacity = 4; // buffer的总大小，可以不用跟ResizeUninitialized的设置一样，但必须大于等于
            vertex.ResizeUninitialized(4); // 把buffer长度设置为4，且不初始化每个数据的值(里边的值是乱的)
            index.Capacity = 6;
            index.ResizeUninitialized(6);
            DynamicMeshData dmd = new DynamicMeshData{
                Dirty = true,
                IndexCapacity = index.Capacity,
                VertexCapacity = vertex.Capacity,
                NumIndices = index.Length,
                NumVertices = vertex.Length,
                UseDynamicGPUBuffer = true
            };

            MeshBounds mb;
            var org = new float3(-0.5f, -0.5f, 0);
            var du = new float3(1, 0, 0);
            var dv = new float3(0, 1, 0);
            var destVertices = vertex.AsNativeArray().Reinterpret<DynamicSimpleVertex, SimpleVertex>();
            var destIndices = index.AsNativeArray().Reinterpret<DynamicIndex, ushort>();
            // 手动设置顶点数据
            destVertices[0] = new SimpleVertex { Position = org, Color = new float4(1, 0, 0, 1), TexCoord0 = new float2(0, 0) };
            destVertices[1] = new SimpleVertex { Position = org + du, Color = new float4(0, 1, 0, 1), TexCoord0 = new float2(1, 0) };
            destVertices[2] = new SimpleVertex { Position = org + du + dv, Color = new float4(0, 0, 1, 1), TexCoord0 = new float2(1, 1) };
            destVertices[3] = new SimpleVertex { Position = org + dv, Color = new float4(0.5f, 0.5f, 0.5f, 1), TexCoord0 = new float2(0, 1) };
            destIndices[0] = 0; destIndices[1] = 1; destIndices[2] = 2;
            destIndices[3] = 2; destIndices[4] = 3; destIndices[5] = 0;
            mb.Bounds = MeshHelper.ComputeBounds(destVertices);

            // 调用接口设置顶点数据，颜色默认是白色
            // MeshHelper.FillPlaneMesh(destVertices, destIndices, org, du, dv, out mb.Bounds);
            // unsafe { // 可以这样重新设置顶点颜色
            //     int n = vertex.Length;
            //     SimpleVertex *vp = (SimpleVertex *)vertex.GetUnsafePtr();
            //     for (int i = 0; i < n; i++)
            //         vp[i].Color = new float4(1, 0, 0, 1);
            // }

            // 添加各种渲染UnlitMesh必须用到的组件
            EntityManager.AddComponentData<DynamicMeshData>(unlitMesh, dmd); // 动态网格数据，这种可以在运行时改顶点数据的。还有一种是固定了顶点数据的，无法在运行时改数据！
            EntityManager.AddComponentData<MeshRenderer>(unlitMesh, new MeshRenderer{ // 网格渲染组件
                mesh = unlitMesh,
                material = unlitMaterial,
                startIndex = 0,
                indexCount = dmd.NumIndices
            });
            EntityManager.AddComponentData(unlitMesh, new SimpleMeshRenderer()); // 这个组件用来表明该Mesh是不支持光照的网格
            EntityManager.AddComponentData(unlitMesh, mb); // Mesh的包围盒
            EntityManager.AddComponentData<Translation>(unlitMesh, new Translation { Value = float3.zero });
            EntityManager.AddComponentData<Rotation>(unlitMesh, new Rotation { Value = quaternion.identity });
            EntityManager.AddComponentData<LocalToWorld>(unlitMesh, new LocalToWorld { Value = float4x4.Translate(float3.zero) });

            return unlitMesh;
        }

        // 创建一个不带光照的材质。该接口也不能在Entities.ForEach中调用
        Entity CreateUnlitMaterial() {
            var unlitMaterial = EntityManager.CreateEntity();
            EntityManager.AddComponentData(unlitMaterial, new SimpleMaterial
            {
                texAlbedoOpacity = Entity.Null,
                constAlbedo = new float3(1, 1, 1),
                constOpacity = 1.0f,
                twoSided = true,
                blend = BlendOp.Disabled,
                transparent = false,
                billboarded = false,
                scale = new float2(1, 1),
                offset = new float2(0, 0)
            });
            return unlitMaterial;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173

动态改变UV的System

using Unity.Collections;
using Unity.Entities;
using Unity.Mathematics;
using Unity.Transforms;
using Unity.Tiny.Rendering;
using Unity.Tiny;

namespace TinyMesh {
    public class ChangeMeshUVSystem : SystemBase
    {
        float time = 0;

        const int count = 16;

        const float size = 1.0f / count;

        protected override void OnUpdate()
        {
            Entities.WithAll<ChangeMeshUV>().ForEach((Entity entity, ref DynamicMeshData dmd, ref DynamicBuffer<DynamicSimpleVertex> dsv) => {
                time += World.Time.DeltaTime;
                var u = (int)(time % count);
                var v = (int)((time / count) % count);
                unsafe {
                    int n = dsv.Length;
                    SimpleVertex *vp = (SimpleVertex *)dsv.GetUnsafePtr();
                    vp[0].TexCoord0 = new float2(size * u, size * v);
                    vp[1].TexCoord0 = new float2(size * u + size, size * v);
                    vp[2].TexCoord0 = new float2(size * u + size, size * v + size);
                    vp[3].TexCoord0 = new float2(size * u, size * v + size);
                }
                dmd.Dirty = true;
            }).WithoutBurst().Run();
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

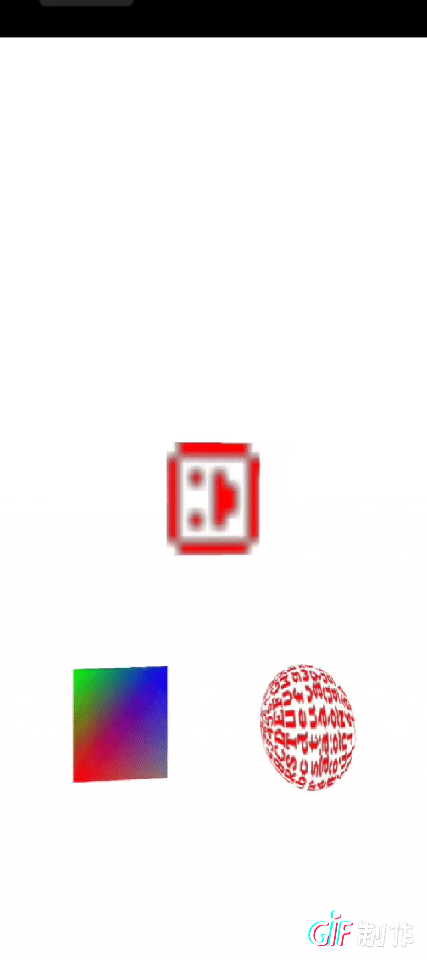

打包安卓后运行效果
